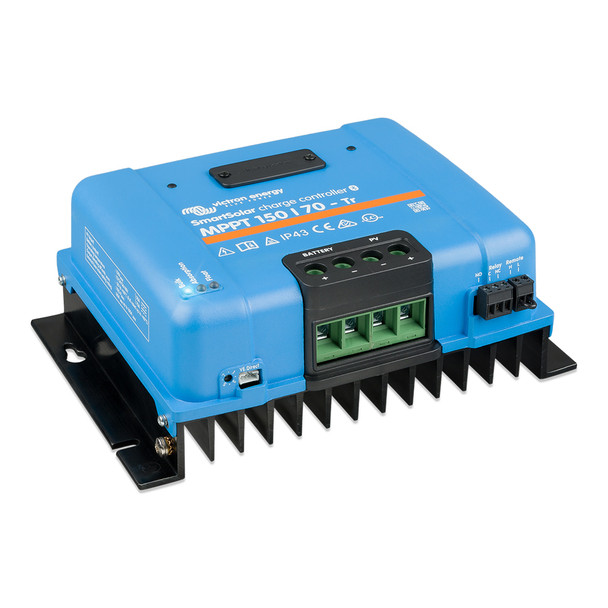

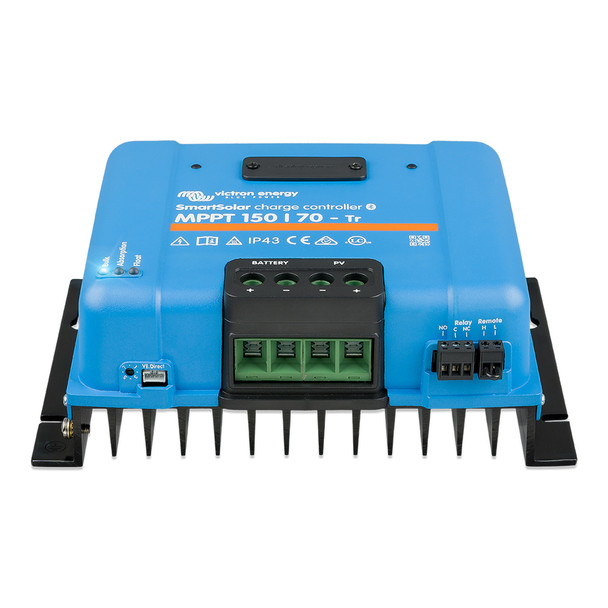

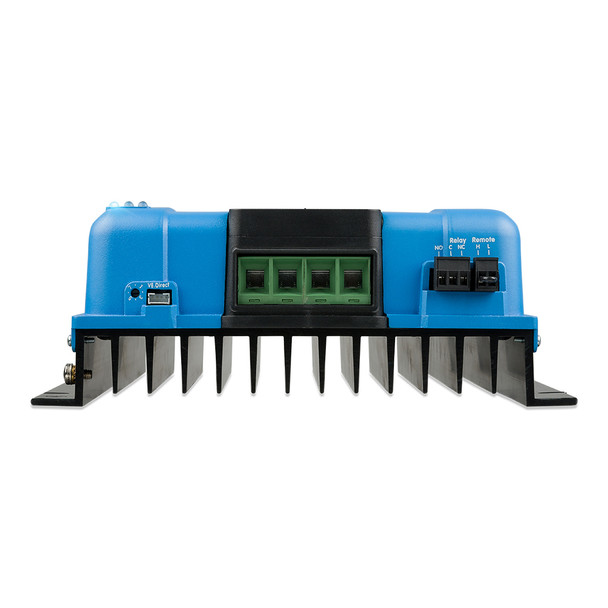

Victron Energy SmartSolar MPPT 150/70-TR Solar Charge Controller

SmartSolar MPPT 150/70 - TR Solar Charge Controller

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.


• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.


• Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.


• Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%.


• Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).


• Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.


• Internal temperature sensor Compensates absorption and float charge voltage for temperature.


• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.


• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices


• Remote on-off To connect for example to a VE.BUS BMS.


• Programmable relay Can be programmed to trip on an alarm, or other events

The Victron Energy SmartSolar MPPT 150/70-TR is a high-performance solar charge controller designed to maximize energy harvest from your solar array. Featuring advanced Maximum Power Point Tracking (MPPT) technology, this controller can improve energy collection by up to 30% under variable lighting conditions compared to traditional PWM controllers. Its ultra-fast MPPT algorithm ensures optimal power extraction even during rapidly changing weather or partial shading scenarios, locking onto the most efficient maximum power point for consistent performance. The SmartSolar MPPT 150/70-TR operates with an efficiency exceeding 98%, thanks to its innovative design that eliminates the need for cooling fans, resulting in quieter operation and enhanced durability.

This model offers extensive flexibility with a fully programmable charge algorithm, including eight pre-set options accessible via a rotary switch, making it adaptable to various battery types and system requirements. It integrates multiple electronic protections such as over-temperature safeguards, PV short circuit, reverse polarity, and reverse current protections to ensure safe operation in diverse environments. An internal temperature sensor automatically adjusts absorption and float voltages based on ambient conditions, optimizing battery health and longevity. For added convenience, the controller supports optional external sensing of battery voltage and temperature through Bluetooth-enabled devices like the Smart Battery Sense or BMV-712 Smart Battery Monitor, enabling real-time system monitoring.

Connectivity options include VE.Direct for wired communication with devices like the Color Control GX and PC, as well as remote on-off functionality, such as integration with a VE.BUS BMS. The programmable relay feature allows users to set custom alarms and trigger specific system events, enhancing system management. Designed for reliability and efficiency, the Victron SmartSolar MPPT 150/70-TR is suitable for a range of off-grid and grid-tied solar applications, providing an intelligent solution for maximizing your renewable energy investment.

Features:

• Bluetooth Smart built-in for wireless setup, monitoring, and updates

• Ultra-fast MPPT algorithm improves energy harvest by up to 30%

• Advanced MPPT detection maximizes energy in partial shading conditions

• Maximum efficiency exceeds 98% with no cooling fan

• Fully programmable charge algorithm with eight preset options

• Extensive electronic protections including over-temperature and PV short circuit

• Internal temperature sensor adjusts voltage for optimal battery health

• Supports external Bluetooth battery voltage and temperature sensing

• VE.Direct port for wired communication with control devices

• Remote on-off capability for system integration

• Programmable relay for alarms and event triggering
