Description

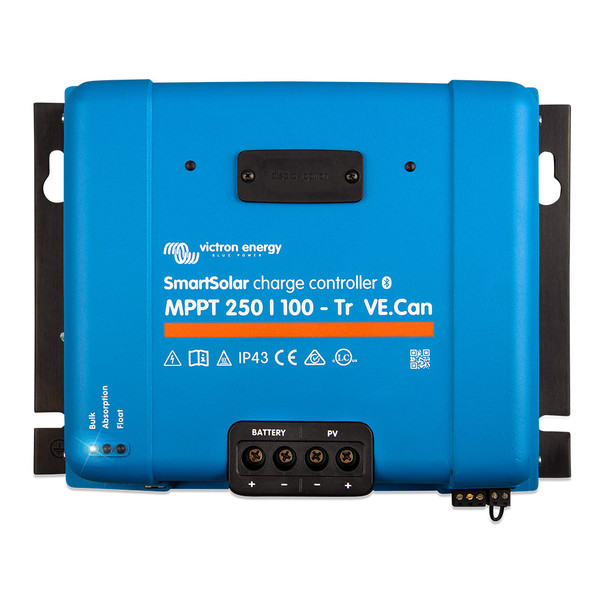

SmartSolar MPPT VE CAN 250V-100A with VE.CAN Port
The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.
MPPT: Ultra Fast Maximum Power Point Tracking
The MPPT VE.Can SmartSolar charger connect to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.
The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium, and others.
Control Your Charger Remotely
The MPPT VE.Can SmartSolar charger be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.
Daisy Chain Additional Units
The VE.Can SmartSolar charger isequipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy-chained" to each other with a single RJ45 cable between the individual units.
When connected to each other, all individual VE.Can SmartSolar chargers, synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device.
Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s). For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
SmartSolar Control Display
The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single-unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live data, set-up, and management, straight from the face of the device.
The Victron Energy SmartSolar MPPT solar charge controller model SCC125110412 is designed to maximize your solar energy harvesting and ensure efficient battery management. With ultra-fast Maximum Power Point Tracking (MPPT) technology, this controller converts solar array energy into optimal charging power for your battery bank, whether it’s 12V, 24V, or 48V systems. It supports PV arrays with Voc up to 250 volts and current ratings between 70 and 100 amps, making it suitable for a variety of large-scale solar installations. The fully programmable charge settings allow customization for different battery chemistries including lead-acid and lithium, ensuring flexible and safe charging protocols for your specific setup. The controller's ability to operate with a battery voltage as low as 0 volts, provided the cells are healthy, offers reliable performance even in deeply discharged conditions.
The SmartSolar MPPT controller can be remotely monitored and configured using Bluetooth via the VictronConnect app, providing real-time data on battery voltage, current, PV input, and historical trends. Its VE.CAN port enables daisy-chaining multiple units, allowing for synchronized charging across several controllers and streamlined data management through a single monitoring device or portal. When connected to a GX device and the internet, users gain access to comprehensive remote management through the VRM portal, offering enhanced control and oversight of your solar system from anywhere. For installation flexibility, the device features a VE.Direct port for single-unit monitoring or streetlight control, along with an optional plug-in LCD display for live data viewing and on-device management. The unit’s robust design and UL approval ensure safety and reliability in various environments.
Whether for off-grid applications, large solar farms, or remote installations, the Victron SmartSolar MPPT controller delivers advanced features, remote control, and scalable connectivity to optimize your renewable energy system’s performance and longevity.
Features:
- Ultra-fast MPPT technology for maximum energy extraction from solar panels
- Supports PV arrays with Voc up to 250V and current up to 100A
- Fully programmable charge settings for various battery chemistries
- Operates with battery voltages as low as 0V for deep discharge recovery
- Remote monitoring and configuration via Bluetooth using VictronConnect app
- VE.CAN port allows daisy-chaining multiple controllers for synchronized operation
- Integration with GX monitoring devices for remote access via VRM portal
- Includes VE.Direct port for local monitoring or streetlight control
- Optional LCD display for real-time data and system management
- UL approved for safety and reliability in diverse environments
