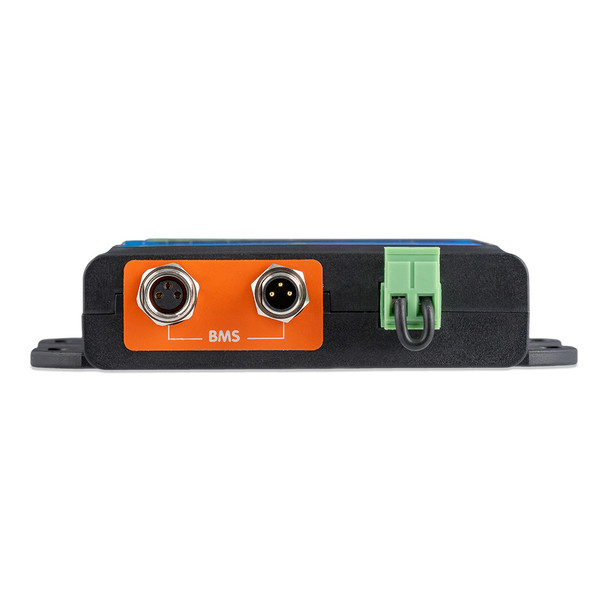

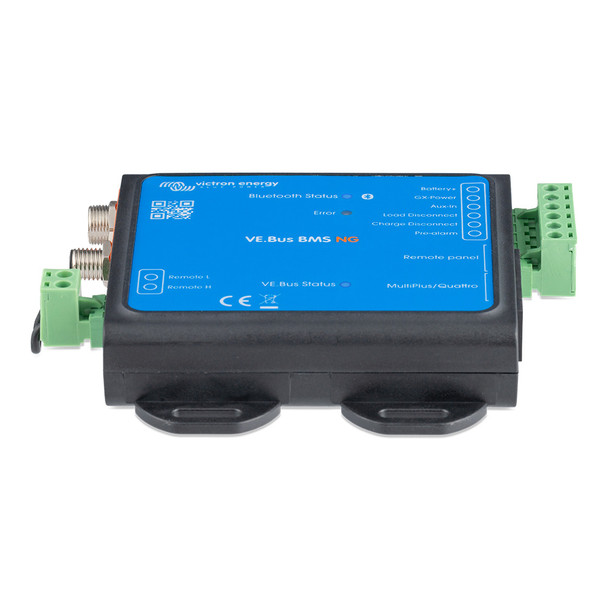

Victron Energy VE.Bus BMS NG Battery Management System for Lithium NG Batteries

VE.Bus BMS NG

The VE.Bus BMS NG is an all-in-one Battery Management System (BMS) for Victron Lithium NG batteries (not compatible with Lithium Battery Smart batteries), designed for systems with Victron inverters or inverter/chargers using VE.Bus communication. It monitors and protects the batteries against overvoltage and under-voltage of any individual cell, and also against over-temperature or under-temperature conditions.

With built-in Bluetooth, it connects directly to all lithium NG batteries in the system for central monitoring via VictronConnect. It also receives current and state of charge data directly from the batteries, so theres no need for a separate SmartShunt.

The lithium NG batteries can be configured in series, parallel, or a combination of both, supporting 12V, 24V, and 48V systems. A maximum of 50 batteries can be used in 12V or 24V banks, and 25 batteries in 48V banks, enabling up to 192 kWh (12V), 384 kWh (24V), and 128 kWh (48V) of storage. Multiple Lynx Smart BMS units can be paralleled to expand capacity and ensure redundancy.

Features:

• Bluetooth Smart: The VE.Bus BMS NG includes Bluetooth Smart for wireless configuration, monitoring, and firmware updates via the VictronConnect App. Instant Readout shows key data such as SoC, battery temperature, warnings, and alarms directly in the device list, without needing to connect.


• Load disconnect output: Controls the remote on/off input of a BatteryProtect, inverter, DC-DC converter, or other loads with remote on/off functionality to prevent deep discharge.


• Charge disconnect output: Controls the remote on/off port of chargers such as the Smart IP43 Charger, a Cyrix-Li-Charge relay, a Cyrix-Li-ct Battery Combiner, or a BatteryProtect, to prevent overvoltage.


• Pre-alarm output: Provides early warning for low battery voltage before disconnecting loads. Can drive a relay, LED, or buzzer.


• Remote on/off control: Allows external control of both load and charge disconnect outputs.


• LED indicators: Includes a blue LED for Bluetooth status and a red LED for warnings and errors.

The Victron Energy VE.Bus BMS NG is an advanced all-in-one Battery Management System designed specifically for Victron Lithium NG batteries. It offers comprehensive monitoring and protection features for systems utilizing Victron inverters or inverter/chargers with VE.Bus communication. The system safeguards your batteries against overvoltage, undervoltage, and temperature extremes, ensuring optimal performance and longevity. Its built-in Bluetooth connectivity allows seamless wireless configuration, real-time monitoring, and firmware updates through the VictronConnect App. Key data such as State of Charge (SoC), battery temperature, warnings, and alarms are easily accessible directly within the device list, eliminating the need for separate monitoring hardware.

The VE.Bus BMS NG supports flexible battery configurations in series, parallel, or a combination of both, compatible with 12V, 24V, and 48V systems. It can handle up to 50 batteries in 12V or 24V banks and 25 batteries in 48V banks, enabling storage capacities of up to 192 kWh for 12V, 384 kWh for 24V, and 128 kWh for 48V systems. Multiple Lynx Smart BMS units can be paralleled to expand capacity or provide redundancy, making it suitable for large-scale energy storage solutions. The system's load and charge disconnect outputs facilitate remote control of connected devices such as BatteryProtects, chargers, or inverter/chargers, preventing deep discharges and overvoltage.

Additional features include a pre-alarm output for early warning of low battery voltage, remote on/off control for both load and charge disconnects, and LED indicators for Bluetooth status and system warnings. Designed for ease of use, the VE.Bus BMS NG ensures reliable battery management and system integration, making it an essential component for modern energy storage systems. For support, repairs, or returns, please contact your dealer. The system’s compact design and wireless capabilities simplify installation and maintenance, providing peace of mind with advanced battery protection and monitoring technology.

Features:

• Bluetooth Smart: Facilitates wireless configuration, monitoring, and firmware updates via the VictronConnect App, with instant readout of key data like SoC, temperature, warnings, and errors.

• Load disconnect output: Enables remote control of loads to prevent deep discharge, compatible with BatteryProtects, inverters, or other loads with remote on/off functionalities.

• Charge disconnect output: Controls remote on/off ports of chargers such as the Smart IP43 Charger or relay modules to prevent overvoltage conditions.

• Pre-alarm output: Provides early warning signals for low battery voltage, capable of driving relays, LEDs, or buzzers for alerting users before disconnection occurs.

• Remote on/off control: Allows external management of load and charge disconnect outputs for system automation and safety.

• LED indicators: Blue LED for Bluetooth connectivity status and red LEDs for warnings and system errors, enabling quick visual assessment.
