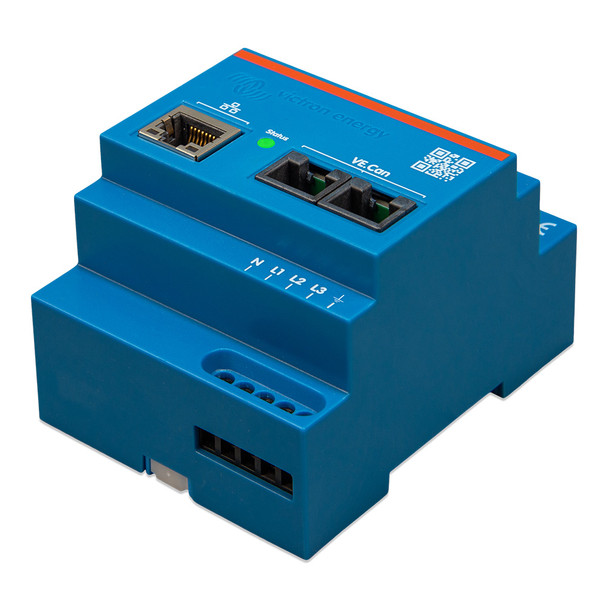

Victron Energy VM-3P75CT Single and Three-Phase Energy Meter with Ethernet and VE.Can Connectivity

Energy Meter VM-3P75CT Single + 3-Phase

The Victron VM-3P75CT energy meter is a standard device to measure the power and energy of single- and three-phase applications and calculates each phases power values and broadcasts this over VE.Can or Ethernet with a high rate. It has built-in Ethernet and VE.Can ports for connecting to a GX device and the split-core current transformers enable easy and quick installation without modifying existing wiring.

The energy meter works out of the box (the firmware may need to be updated; details can be found in the Firmware Updates chapter) as a grid meter for systems with a MultiPlus and Quattro. Configuration (via VictronConnect) is only required for changing the role and manual IP configuration rather than the default DHCP. Its data is displayed on a GX device such as the Cerbo GX or Ekrano GX, as well as in VictronConnect and the VRM Portal.

Specifications:

• Voltage connection: Direct


• Input voltage range L-N: 85 to 265VAC


• Input voltage range L-L;150 to 460VAC


• Frequency: 50/60Hz


• Current connection: Via current transformers (included - wire length 640mm (25.2in)


• Rated current: 75A


• VE.Can communication port: Two RJ45 connectors (VE.Can terminators included)


• Ethernet communication port: One RJ45 connector, Modbus UDP


• Refresh rate: 100ms


• Type: Self-power supply via L1-N


• Switch or circuit breaker: Required as means of a disconnecting device - not included


• External fuse [1]: Required in the neutral conductor - 500mA, not included


• Consumption: 1.45W / 3.1VA


• Frequency: 50/60Hz


• Material Color: Polycarbonate, blue (RAL5012)


• Voltage connection: Screw terminals 0.25 - 1.5mm2 (24 - 16AWG)


• Current transformer connection: Pluggable screw terminals (included)


• Protection category: IP20


• Weight: 370g (including packaging)


• Dimensions: 90 x 71 x 59mm (3.5 x 2.8 x 2.3in)


• Indoor/outdoor usage: Indoor only


• Operating temperature: From -10 to +55 C


• Storage temperature: From -20 to +70 C


• Relative humidity: < 90% non-condensing


• Altitude: 2000m (6562ft)


• Mains supply voltage fluctuations: 0.1Vin


• Overvoltage category: Cat. III


• Pollution degree: 2

Whats In The Box

• Victron VM-3P75CT with 3 input terminal blocks


• 3x Split-core current transformer, wired ready for connection


• Wire length: 640mm (25.3)


• VE.Can terminators (2-pieces)

The Victron Energy VM-3P75CT is a versatile and reliable energy meter designed for both single-phase and three-phase electrical systems. It accurately measures power and energy consumption, providing detailed phase-by-phase data that can be broadcast over VE.Can or Ethernet networks at high refresh rates. Its built-in Ethernet and VE.Can ports enable seamless integration with Victron GX devices such as the Cerbo GX or Ekrano GX, facilitating real-time monitoring via VictronConnect and the VRM Portal. The split-core current transformers included with the meter allow for quick and non-invasive installation, making it suitable for retrofit applications without modifications to existing wiring. The device operates out of the box, with firmware updates available for enhanced features and compatibility. Configuration adjustments, such as setting the meter's role or IP addressing, are simple via VictronConnect, utilizing either DHCP or manual IP setup. The VM-3P75CT supports a comprehensive voltage range and features a robust design with an IP20 protection rating, suitable for indoor environments. Its compact form factor and lightweight construction make it an ideal choice for residential, commercial, or industrial energy monitoring systems. The device is powered through the measurement circuit and requires a disconnecting device and an external fuse for safety compliance. Key features include a 75A rated current, fast 100ms refresh rate, and communication via two VE.Can RJ45 ports and one Ethernet port, supporting Modbus UDP protocol. With its durable polycarbonate enclosure, operating temperature range from -10°C to +55°C, and high humidity tolerance, the VM-3P75CT is built for reliable, long-term performance in various indoor settings. The package includes the energy meter, three pluggable split-core current transformers with wiring ready for connection, and VE.Can terminators for network setup. This comprehensive solution ensures accurate energy measurement and seamless integration into existing energy management systems for optimized monitoring and control.

Features:

• Measures power and energy in single- and three-phase systems with high accuracy

• Built-in Ethernet and VE.Can ports for versatile connectivity

• Includes split-core current transformers for quick installation without wiring modifications

• Supports high refresh rate of 100ms for real-time data updates

• Compatible with Victron GX devices like Cerbo GX and Ekrano GX for remote monitoring

• Easy configuration via VictronConnect with options for DHCP or manual IP setup

• Robust design with IP20 protection suitable for indoor environments

• Rated for 75A current with direct voltage connection and screw terminals

• Supports Modbus UDP protocol over Ethernet for integration into existing systems

• Compact and lightweight, ideal for residential, commercial, or industrial applications
