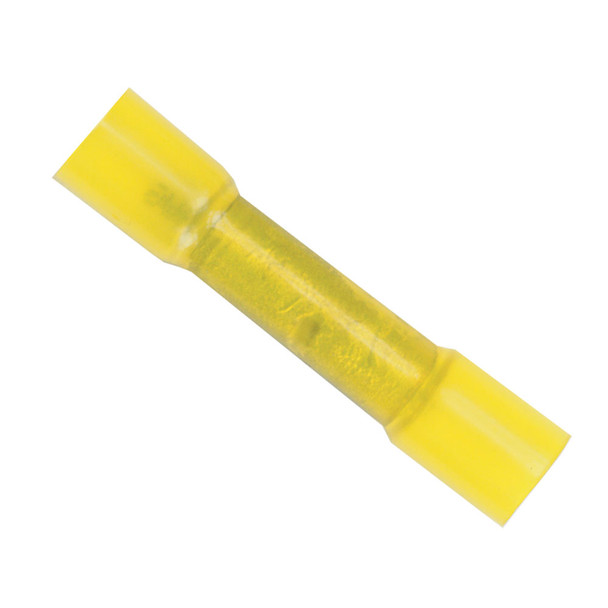

Ancor 12-10 Heatshrink Butt Connectors - 500-Pack for Marine and Electrical Applications

12-10 Heatshrink Butt Connectors - 500-Pack

Guage Size: 12-10
Quantity: 500

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.




• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size.




• Shrinks at 257 deg. F/125 deg. C.




• Operating temperature range 40 deg. C to 110 deg. C.




• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing




• Shrinks to form a water tight seal and the ultimate vibration and strain relief.




• Tinned for corrosion resistance.




• Pure copper for maximum current flow.




• Brazed seam for maximum strength.




• Wire range: 12-10




• mm: 3-5



WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 Heatshrink Butt Connectors are designed for professional-grade electrical connections in demanding environments. Each connector features a cross-linked polyolefin tubing that offers superior strength compared to PVC, ensuring durability under harsh conditions. The heat-activated adhesive lining provides a reliable, waterproof seal resistant to salt water, oil, acids, and sunlight, making these connectors ideal for marine, automotive, and industrial wiring projects. The nylon insulator, favored by industry experts, offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and potential cut-through damage, ensuring long-lasting performance. UL-listed and CSA-recognized, these connectors meet stringent safety standards, providing peace of mind for professional and DIY users alike. With the highest shrink ratio, they shrink to just one-third of their original size when heated to 257°F (125°C), ensuring a snug fit that seals out moisture and strain. The operating temperature range from 40°C to 110°C makes them versatile for various applications. The connectors feature pure tinned copper for optimal current flow and corrosion resistance, along with a brazed seam for maximum mechanical strength. Designed to accommodate wire ranges from 12 to 10 gauge, they are suitable for a wide range of electrical wiring needs. These connectors are packaged in a 500-piece set, providing excellent value for bulk use in marine, automotive, or industrial projects. The heat shrink tubing not only forms a watertight seal but also offers excellent strain relief, preventing damage over time. Please be aware that this product contains chemicals known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov.

Features:

• Cross-linked polyolefin tubing for enhanced strength and durability

• Heat-activated adhesive lining for an impervious water and strain relief seal

• Nylon insulator with marine-grade resistance to sunlight, water, oil, and chemicals

• UL Listed and CSA Recognized for safety and quality assurance

• Shrinks to one-third of original size at 257°F (125°C) for secure connections

• Operates within a temperature range of 40°C to 110°C

• Pure tinned copper for maximum current flow and corrosion resistance

• Brazed seam construction for maximum strength

• Suitable for wire gauges 12-10 (3-5 mm)
