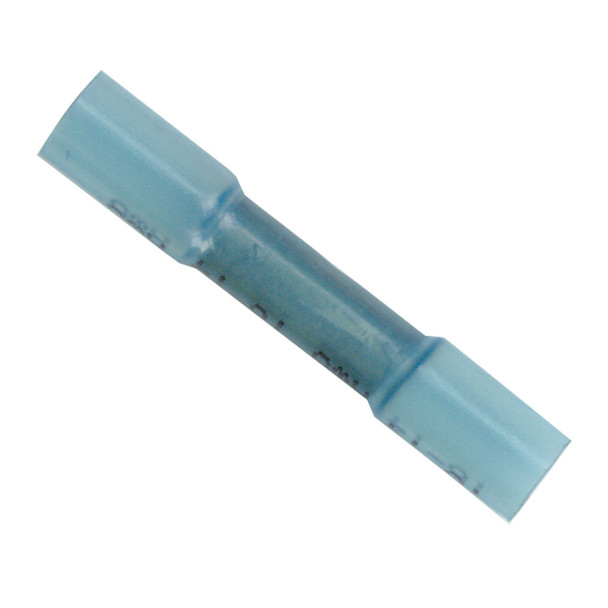

Ancor 16-14 Heatshrink Butt Connectors - 500-Pack for Marine and Automotive Wiring

16-14 Heatshrink Butt Connectors - 500-Pack

Guage Size: 16-14
Quantity: 500

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.




• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size.




• Shrinks at 257 deg. F/125 deg. C.




• Operating temperature range 40 deg. C to 110 deg. C.




• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing




• Shrinks to form a water tight seal and the ultimate vibration and strain relief.




• Tinned for corrosion resistance.




• Pure copper for maximum current flow.




• Brazed seam for maximum strength.




• Wire range: 16-14




• mm: 1-2



WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Heatshrink Butt Connectors come in a convenient 500-pack, designed for reliable wire connections in marine, automotive, and electrical applications. These connectors feature cross-linked polyolefin tubing that offers superior strength compared to PVC, ensuring durability and resistance to environmental stressors. The heat-activated adhesive lining provides an impervious seal against saltwater, oil, acids, and sunlight, while also offering strain relief for long-lasting connections. The nylon insulator used in these connectors is preferred by professionals for its marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making it suitable for demanding conditions. These connectors are UL Listed and CSA Recognized, confirming their safety and quality standards. They shrink to one-third of their original size when heated to 257°F (125°C), with an operating temperature range from 40°C to 110°C, ensuring reliable performance across a wide temperature spectrum. Incorporating heat-activated adhesive built into the tubing, they form a watertight seal and provide excellent vibration and strain relief. Tinned for corrosion resistance and made of pure copper for maximum current flow, these connectors feature a brazed seam for added strength and durability. Suitable for wire ranges from 16 to 14 gauge, these connectors are an essential component for secure, corrosion-resistant electrical connections in marine and automotive wiring projects. Please note, this product contains chemicals that may pose health risks, including di(2-ethylhexyl)phthalate (DEHP), and is compliant with California regulations. Ensure proper handling and disposal as per safety guidelines.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides a watertight seal and strain relief

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL Listed and CSA Recognized for safety and quality assurance

• Shrinks to one-third of original size at 257°F (125°C) for secure connections

• Operates within temperature range of 40°C to 110°C

• Tinned copper construction for corrosion resistance and maximum current flow

• Brazed seam enhances connector strength and durability

• Suitable for wire gauges 16-14 for versatile electrical applications
