Description

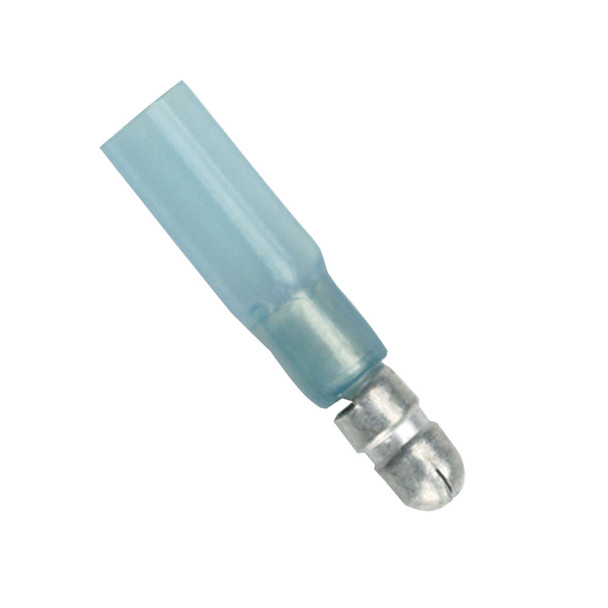

16-14 Male Heatshrink Snap Plug - 100-Pack
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire Range: 16-14/.197
- Size: 3-5mm/5mm
- Gender: Male
- Qty/Pkg: 100
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor 16-14 Male Heatshrink Snap Plug is a reliable and durable solution for electrical connections requiring protection against harsh environmental conditions. Crafted from cross-linked polyolefin, this tubing offers superior strength compared to PVC and resists burning, ensuring safety and longevity in demanding applications. Its heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, while also delivering strain relief for secure and stable connections.
Designed with a nylon insulator, this male snap plug is ideal for marine environments due to its resistance to sunlight, water, oil, chemicals, vibration, and damage from cuts. The product is UL listed and CSA recognized, confirming its safety and compliance with industry standards. With a high shrink ratio, it reduces to one-third of its original size when heated to 257°F (125°C), ensuring a tight, waterproof fit. The operating temperature range spans from 40°C to 110°C, making it suitable for various high-temperature scenarios.
Each pack contains 100 connectors, offering a cost-effective and convenient solution for bulk wiring projects. The connectors are made from tinned pure copper, providing maximum current flow and corrosion resistance. The brazed seam enhances overall strength, while the wire range accommodates 16-14 gauge wire with a diameter of approximately 0.197 inches. The male connectors measure between 3mm to 5mm, making them versatile for diverse electrical setups. These heat shrink connectors are designed for easy installation, forming a water-tight seal, vibration resistance, and strain relief in a single step. Ideal for marine, automotive, and industrial wiring, the Ancor 16-14 Male Heatshrink Snap Plug ensures reliable, long-lasting electrical connections in challenging environments.
Features:
- Cross-linked polyolefin tubing provides increased strength and fire resistance compared to PVC.
- Heat-activated adhesive lining creates an impervious seal against water, salt, oil, acids, and sunlight, while offering strain relief.
- Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and damage from cuts.
- UL Listed and CSA Recognized, ensuring safety and compliance with industry standards.
- Shrinks to one-third of original size at 257°F (125°C) for a secure, waterproof fit.
- Operates within a temperature range of 40°C to 110°C, suitable for various demanding environments.
- Tinned copper construction enhances corrosion resistance and ensures maximum current flow.
- Brazed seam provides maximum strength and durability.
- Designed to fit 16-14 gauge wire with approximately 0.197-inch diameter.
- Pack includes 100 male heat shrink connectors for bulk wiring projects.
