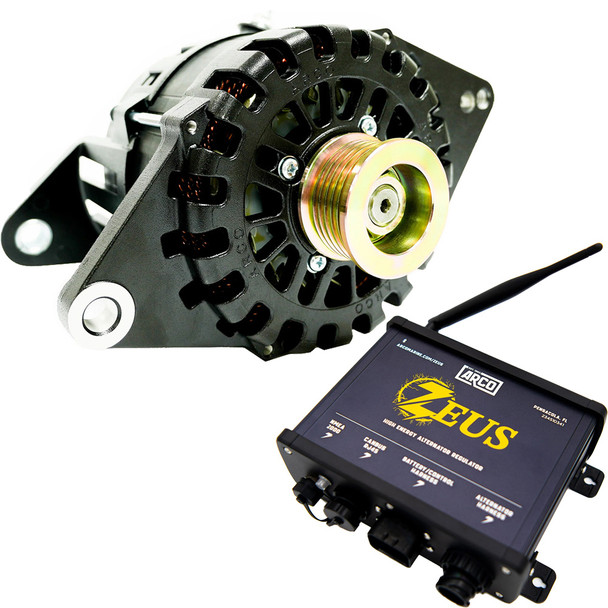

ARCO Zeus A275L J180 4-inch Alternator with Isolated Ground and High-Energy Regulator

Zeus A275L J180 4 Alternator with Isolated Ground, Regulator Zeus High-Energy Alternator Regulator

Zeus A275L J180 4 Alternator with Isolated Ground Regulator

The highest power output alternator in its size/class.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance.


• Heat-shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output.


• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.


• SAE J1171 Certified.


• Models are available with an internal/external voltage regulator.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 12V


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 14.9 lbs/6.7 kg


• Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)


• Output Voltage - 14.1v (Default)


• Finish - (Black) Cerakote or E-coating


• Cut-In RPM - 1,061 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) - 311 Amps


• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps


• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps


• Max Continuous Operating Temperature - 110C / 230F

Mounting Application:

• Replaces most Volvo Penta alternators using a 4 J180 saddle-style mount

Zeus High-Energy Alternator Regulator

ARCOs Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.

Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.

Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technicians configurations.

Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.

Zeus also takes into consideration the power of your engine and allows you to configure the alternators power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternators performance on the creation of energy to replenish your battery bank quickly.

Consistent with Zeus ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.

Features:

• Secure Bluetooth connection


• Harnesses, Thermistors, and NMEA 2000 kit included


• Monitors the state of charge


• Can turn your engine into a dedicated generator with generator mode


• Pre-set battery libraries


• Data logging and sharing


• CAN bus and NMEA 2000-integrated networks


• Compatible with all voltage systems (12- 48V)


• IP66 IP67 rated


• 2-Year warranty

Technical Specifications:

• Enclosure dimensions without antenna - 8.2 x 5.9 x 2.4


• Enclosure dimensions with antenna - 8.2 x 7.5 x 2.4


• Weight - 1.7 lbs

In the Box:

• Zeus high-energy alternator regulator


• Battery wiring harness


• Alternator wiring harness


• 2 thermistors

The ARCO Zeus A275L J180 4-inch alternator is engineered for maximum power output within its size class, making it ideal for marine, RV, military, and commercial applications. This high-energy alternator features a robust design capable of rapidly charging large battery banks, reducing reliance on external generators. Its advanced cooling system, including heat-shedding coatings and dual cooling fans, ensures the alternator operates at cooler temperatures for enhanced performance and longevity. The exterior-mounted rectifier and large frame size contribute to efficient heat dissipation, supporting sustained high amperage output even under demanding conditions.
Built with OEM components and optimized for performance at idle speeds, the ARCO Zeus A275L minimizes engine load while maximizing electrical output. The unit's default regulation voltage is 14.1 volts, with options for internal or external regulation, accommodating a variety of system configurations. The alternator's design includes a 16-pole rotor and a 138mm stator, delivering up to 311 amps at cold RPM, and maintaining impressive output at cruising and idle speeds. Its durable Cerakote or E-coating finish enhances corrosion resistance, suitable for harsh environments. The alternator replaces most Volvo Penta units using a 4 J180 saddle-style mount, simplifying installation.
The ARCO Zeus Bluetooth Alternator Regulator adds a layer of intelligent control, allowing users to monitor and optimize their charging system via a native app on iOS and Android devices. This regulator reads two shunts simultaneously—battery and alternator—enabling precise management of power flow based on real-time current and temperature data. Its features include Bluetooth security, data logging, remote troubleshooting, and compatibility with 12-48 volt systems, including lithium and lead-acid batteries. The regulator can turn the engine into a dedicated generator with its generator mode, enhancing energy production during peak demand. The included harnesses and thermistors streamline installation, saving time and money. Certified to SAE J1171 standards and rated IP66/IP67 for weather resistance, the ARCO Zeus A275L J180 is built in the USA for reliable performance and durability.
Overall, this alternator and regulator combination offers high efficiency, advanced monitoring, and flexible configuration options, making it a versatile choice for demanding power generation needs in mobile and stationary systems.

Features:

• Engineered for high energy production and rapid battery charging

• Suitable for marine, RV, military, and commercial applications

• Enhanced cooling with heat-shedding coatings and dual fans for increased performance

• Exterior-mounted rectifier for efficient heat dissipation

• Optimized for performance at idle speeds, reducing engine load

• Includes OEM components for reliable operation

• Compatible with internal or external voltage regulation, with optional adapters

• Built-in Bluetooth with a dedicated app for system monitoring and configuration

• Reads two shunts simultaneously for precise current and temperature management

• Supports 12-48V systems, including lithium and lead-acid batteries

• Can convert engine into a dedicated generator with generator mode

• Includes harnesses, thermistors, and NMEA 2000 kit for easy installation

• Weather-resistant IP66/IP67 rated enclosure for harsh environments

• Made in the USA with high-quality materials and components
