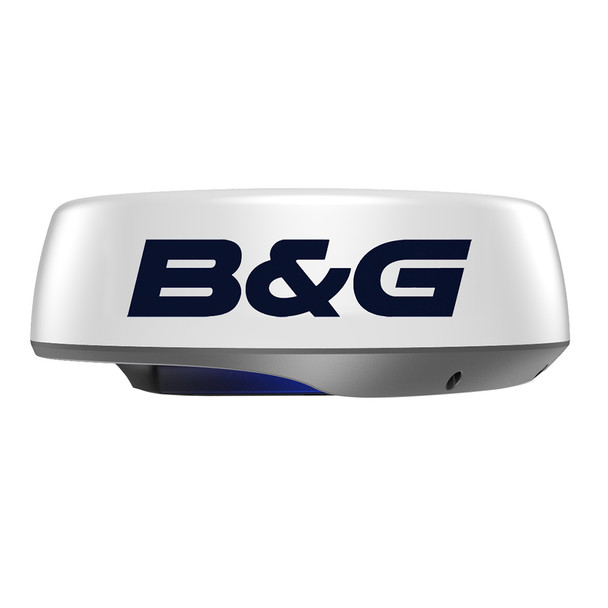

B&G HALO24 Radar Dome with Doppler Technology – 48 Nautical Mile Range, 60 RPM Fast Sweep, Dual Range and VelocityTrack

HALO24 Radar Dome with Doppler Technology

HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance.Identify hazards in an instant with VelocityTrack Doppler technology, and enjoy simultaneous short and long-range coverageup to 48 nautical milesfrom one compact 24-inch dome antenna.

See Near and Far with One Compact Dome

Perfect for a wide range of sailboats, fishing boats and smaller powerboats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode, which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radars pulse-compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.

The Ultimate View for Collision Avoidance

HALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether youre navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings

VelocityTrack Doppler Technology Built-In

VelocityTrack technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; theres no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.

Key Features:

• 48 nm range from a compact 24" dome


• Advanced pulse compression technology with beam sharpening


• Simultaneous Dual Range operation sees both near and far


• Ultra-fast 60 RPM operation at ranges up to 2nm


• VelocityTrack Doppler technology for collision avoidance


• Easy operation with harbour, offshore, weather, and bird modes


• MARPA target tracking (up to 10 targets, 20 in dual range).


• Ready instantly from standby


• Lightweight, low profile dome design, with integrated LED lights


• 20m Radar Cable

Specifications:

Environmental

• Operating Temperature: -25 to +55C (-13 to +130F)


• Relative humidity: +35 C (95 F), 95% RH


• Waterproof: IPX6


• Max relative wind velocity: 51 m/sec (100 Knots)


• Complience: CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002

Power Dimensions

• Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V


• Standby: 3.9 W (Typ.) at 13.8 V DC 170 mA


• DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems)


• Reverse polarity protection: Yes


• Minimum startup voltage: 10.75 V DC


• Transmitter source (pre-heating time): No magnetron Instant On

Physical

• Outside dimensions: Diameter 610 mm (24), Height 225 mm (8.9)


• Scanner weight (no cable): 6.75kg (14.9 lbs)

Radar and Antenna Parameters

• Radar ranges: 100M (328 ft) to 48nm with 18 range settings, (nm/sm/km)


• Rotation (mode dependent): 20 - 60 rpm (mode and MFD dependent)


• Transmitter frequency: X-band - 9.4 to 9.5 Ghz


• Transmitter source (warm-up time): No Magnetron all solid state. Instant On


• Plane of polarization: Horizontal Polarization


• Transmitter peak power output: 25W


• Minimum range: 6M (19.7')


• Sweep repetition frequency: 700-2400 Hz (mode dependent)


• Pulse length: 0.04 - 64 usec


• Sweep bandwidth: 48 MHz max


• Horizontal beam width (Tx and Rx antenna): 3.9 nominal (-3 dB width)


• Target Seperation Control: OFF: 3.9+/-10% (-3 dB width nominal), LOW: 3.4+/-10% (-3 dB width nominal), MED: 2.5+/-10% (-3 dB width nominal), HIGH: 2.0+/-10% (-3 dB width nominal)


• Vertical beam width (Tx and Rx antenna): 22 (-3B width nominal)


• Side lobe level (Tx and Rx antenna): Below -18 dB (within 10);Below -24 dB (outside 10)


• Noise figure: Less than 5 dB nominal

Communications/Cabling

• Protocol: Ethernet 100 Base T


• Maximum inter connecting cable length: 30M (98.5') available as option, use NEP-2 for longer cable runs

The B&G HALO24 radar dome combines advanced Doppler technology with industry-leading features to provide sailors and boaters with a comprehensive situational awareness system. With a compact 24-inch dome design, the HALO24 delivers up to 48 nautical miles of detection range, making it suitable for a wide variety of vessels including sailboats, fishing boats, and small powerboats. Its innovative pulse compression and beam sharpening technologies ensure high-resolution detection at both near and far ranges, enabling users to identify hazards and target vessels with precision. The radar's ability to operate at an impressive 60 RPM at ranges up to 2 nautical miles offers ultra-fast updates, providing an almost real-time view that significantly enhances collision avoidance efforts in crowded or poor visibility conditions. The dual-range mode allows simultaneous monitoring of close-in hazards and distant weather or targets, optimizing safety and navigation efficiency. VelocityTrack Doppler technology further enhances the system by instantly indicating whether targets are approaching or receding, with automatic color-coded visual cues that improve situational awareness without manual target selection. Designed for ease of use, the HALO24 features multiple operation modes—including harbor, offshore, weather, and bird—making it versatile for different navigation scenarios. Its lightweight and low-profile dome, combined with integrated LED indicators, simplify installation and operation, while the robust construction ensures durability in harsh marine environments. The system also supports MARPA target tracking for up to 10 targets, with an optional upgrade to track 20 targets in dual-range mode. Easy connectivity through Ethernet and a 20-meter cable allows flexible setup options. Overall, the B&G HALO24 radar dome offers exceptional detection capabilities, fast updates, and intuitive features to help boaters navigate safely and confidently across a variety of conditions and environments.

Features:

• Range up to 48 nautical miles for comprehensive coverage

• Industry-first 60 RPM rotation at ranges up to 2 nautical miles for ultra-fast updates

• Dual Range mode enables simultaneous short and long-range monitoring

• VelocityTrack Doppler technology provides instant hazard assessment with visual cues

• Pulse compression and beam sharpening for high-resolution detection

• Multiple operation modes including harbor, offshore, weather, and bird

• MARPA target tracking for up to 10 targets, expandable to 20 in dual range

• Lightweight, low-profile dome design with integrated LED indicators

• Instant power-up with no magnetron warm-up time

• Robust waterproof construction suitable for harsh marine environments

• Ethernet connectivity with 20-meter cable for flexible installation
