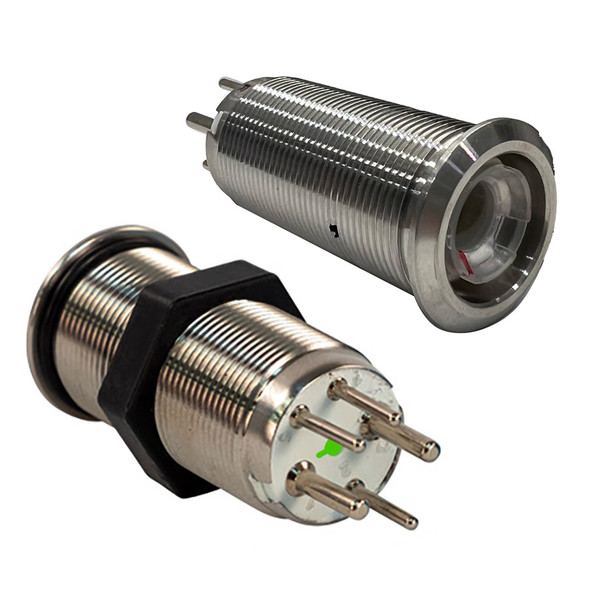

Bluewater 19mm Marine Grade Inrush Push Button Switch with LED Indicators - Model 9057-2123

19mm Inrush Push Button Switch Momentary Off(On)(On) - Blue/Red/Green LED - Switch Body Only

The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.

This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.

This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.

Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.

Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.

Specifications:

• Switch Rating: 15A/12-24VDC


• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC


• Mechanical Life: 50,000 Cycles


• Electrical Life: 10,000 Cycles


• Dimensions: View Dimensional Drawings


• Material: Nickel Plated Brass/ Stainless Steel


• LED Color: Blue/Green/Red

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.

The Bluewater 9057-2123 is a compact 19mm inrush push button switch designed for demanding marine and outdoor environments. Crafted from corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating, this switch ensures reliable operation even in harsh conditions such as salt spray, washdowns, and high humidity. Its rugged construction makes it an ideal choice for boat builders, marine technicians, and outdoor electrical system upgrades where space is limited but durability is essential. The switch features a fully detachable actuator that can be customized to match your aesthetic or functional preferences, providing flexibility for various installations.
The integrated LED indicators enhance visibility and user feedback in any lighting condition. The soft blue backlight offers subtle illumination, while the bright red LED confirms active status, allowing quick and intuitive recognition of power states. Rated for 15 amps at 12-24V DC, this switch can handle high current loads with consistent reliability. It is available in multiple LED colors, including blue, green, and red, to suit your specific application needs.
Installation is straightforward; simply drill a 19mm hole into panels up to 6mm thick, connect the color-coded contacts for the switch operation, and connect the LED contacts accordingly. With a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, the Bluewater 9057-2123 ensures long-lasting performance in demanding environments, making it a dependable control solution for marine and outdoor electrical systems.Specifications:

• Switch Rating: 15A/12-24VDC


• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC


• Mechanical Life: 50,000 Cycles


• Electrical Life: 10,000 Cycles


• Material: Nickel Plated Brass/ Stainless Steel


• LED Color Options: Blue, Green, Red

Installation: Drill a 19mm hole into panels up to ¼ inch thick. Connect the switch contacts (color-coded for safety) and LED contacts as per your wiring scheme. The switch's sealed design and corrosion resistance make it suitable for marine environments, ensuring your control system remains protected and reliable over time.

Features:

• Corrosion-resistant SS316 stainless steel housing for durability in harsh environments

• IP69K waterproof rating for protection against water ingress and salt spray

• Integrated LED indicators with blue backlight and bright red active status light

• Rated for 15 amps at 12-24V DC, handling high current loads

• Fully detachable actuator allowing customization and easy installation

• Simple installation with 19mm mounting hole and color-coded wiring contacts

• Long mechanical and electrical lifespan for reliable performance
