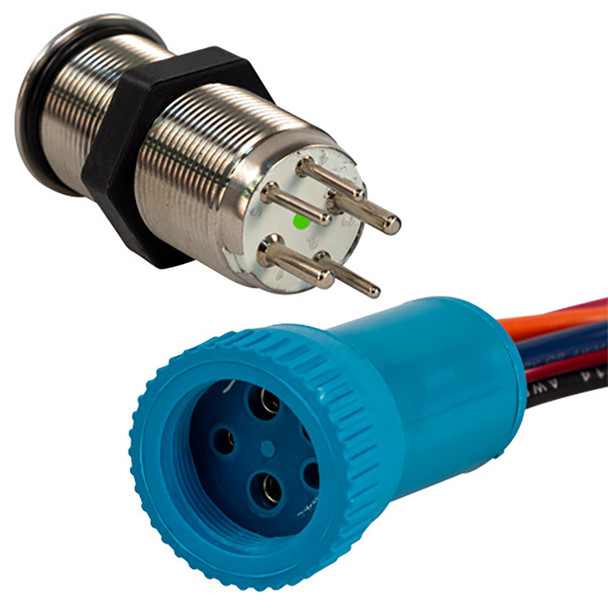

Bluewater 19mm Push Button Switch with Blue/Red LED and Waterproof IP69K Rating 9057-2113-1

19mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 1' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/(On)" momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Off-(On) (momentary contact)


• Off/On: Blue/red


• Rear Mark Page: Green dot


• Switch Rating: 15A/12 24VDC


• Material: Stainless steel


• Mechanical Life: 50,000 cycles


• Electrical Life: 10,000 cycles

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

The Bluewater 19mm push button switch offers a sleek, modern design crafted from stainless steel, making it an ideal upgrade for any dashboard or control panel. Its durable construction ensures reliable performance in demanding environments, while the waterproof IP69K rating provides resistance against water ingress, dust, and other contaminants. This switch features an Off/(On) momentary contact function, allowing for precise control of electrical circuits with a simple press. The integrated backlit LEDs in blue and red provide clear visibility in low-light conditions, with the blue indicating the default state and the red confirming activation, enhancing user safety and operational clarity. The switch is designed for straightforward installation, requiring only a 19mm hole in panels up to 6mm thick, with color-coded contacts to simplify wiring connections. The 1-foot lead offers flexibility in mounting and wiring, making it suitable for automotive, industrial, and marine applications where durability and visibility are essential. With a mechanical life expectancy of 50,000 cycles and an electrical life of 10,000 cycles, this switch combines longevity with ease of use, ensuring consistent performance over time. Whether upgrading existing controls or designing new systems, the Bluewater 19mm push button switch provides a robust and visually striking solution for your control needs.

Features:

• 19mm diameter stainless steel body for durability and modern appearance

• Waterproof rating of IP69K for resistance against water and dust

• Blue/Red LED backlighting for enhanced visibility in low-light conditions

• Off/(On) momentary contact function for precise control

• Quick and simple installation with a 19mm drill hole in panels up to 6mm thick

• Color-coded contacts for safe and straightforward wiring

• 1-foot lead for flexible wiring options

• Switch rated at 15A/12V or 24V DC for reliable performance

• Mechanical life of 50,000 cycles and electrical life of 10,000 cycles for long-term durability
