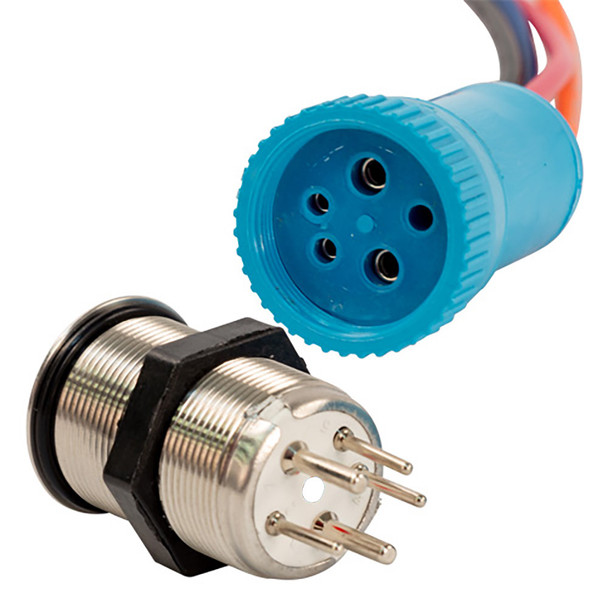

Bluewater 22mm Push Button Switch with Nav/Anc Contact and RGB LED Indicators

22mm Push Button Switch - Nav/Anc Contact - Blue/Green/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a Nav/Anc contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Nav/Anc


• Off/1st On: Blue/Green


• 2nd On: Red


• Rear Mark Page: White dot


• Switch Rating: 20A/12 24VDC


• Material: Stainless steel


• Mechanical Life: 50,000 cycles


• Electrical Life: 10,000 cycles

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle or equipment dashboard with the Bluewater 22mm push button switch, part number 9059-3114-1. Crafted with a stainless steel body and a waterproof rating of IP69K, this switch is designed for durability and reliable performance in demanding environments. The switch features a 22mm diameter mounting for easy installation into panels up to 6mm thick, making it suitable for various custom and OEM applications. Its modern, sleek design with a gasket ensures protection against water and dust ingress, providing peace of mind during operation in harsh conditions.
The switch is equipped with vibrant backlit LEDs that enhance visibility during nighttime or low-light conditions. The LEDs change color based on the switch's status: blue for off, green for first on, and red for second on. This color-coding offers intuitive status indication, reducing operator error and enhancing safety. The switch's contacts include a Nav/Anc function, which can be utilized for navigation or auxiliary functions, with the contacts wired to a 1-foot lead for straightforward connection.
Designed for high performance, the switch has a mechanical lifespan of approximately 50,000 cycles and an electrical life expectancy of around 10,000 cycles. It supports a rated current of 20A at 12 or 24V DC, making it suitable for controlling various electrical loads. Installation involves drilling a 22mm hole, connecting the color-coded contacts for safety and clarity, and wiring the LED contacts for backlighting. This versatile switch combines robust construction with user-friendly features, making it ideal for professional or DIY projects requiring reliable toggle control with visual feedback.

Features:

• Stainless steel body with waterproof IP69K rating for durability in harsh environments

• Backlit RGB LEDs with color indicators: blue (off), green (first on), red (second on)

• Nav/Anc contact functionality for navigation or auxiliary control

• Includes 1-foot lead for simple wiring and connection

• Supports up to 20A at 12/24V DC, suitable for demanding electrical loads

• Mechanical life expectancy of 50,000 cycles and electrical life of 10,000 cycles

• Easy installation into panels up to 6mm thick with a standard 22mm mounting hole
