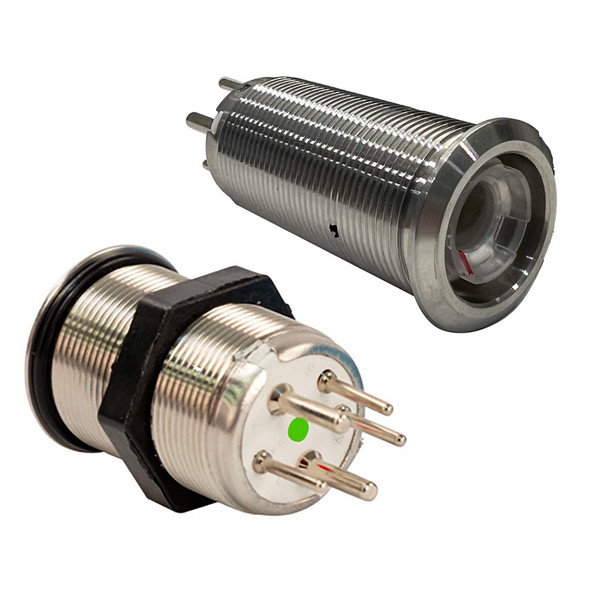

Bluewater 9059-2113 22mm Marine Inrush Push Button Switch with Blue/Red LED

22mm Inrush Push Button Switch Momentary - Blue/Red LED - Switch Body Only

The switch is the core of your control system. Built marine tough with inrush protection and waterproof sealing for reliable performance.

Upgrade your marine switch panel with the 9059 Series 22mm Inrush Protection Switch. Built for heavy-duty marine applications, this switch handles high surge currents with ease - perfect for pumps, motors, and other demanding onboard equipment.

Built for Harsh Marine Conditions:

• Encased in corrosion-resistant SS316 stainless steel


• Rated IP69K waterproof with Bluewaters proprietary Deutsch-style connectors


• Resistant to salt spray, heat, vibration, and shock

Easy to See and Control:

• Blue LED backlighting for night visibility


• LED shifts to bright red when activeinstant confirmation of pump or device status


• Fully detachable actuator for customization of style and function

Reliable Power Handling:

• Rated for 20 amps on a single channel


• Rated for 10 amps per channel in dual-channel use


• Impact-resistant and designed for long-lasting performance

Why Choose the 9059 Switch for Your Marine Switch Panel

This inrush protection switch combines rugged durability with smart design. It installs easily, provides dependable control, and ensures your marine switch panel remains reliable in all conditions.

When you are on the water, trust the 9059 Series to keep your critical systems running smoothly and safely.

Specifications:

• Switch Rating: 20A/12-24VDC


• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC


• Mechanical Life: 50,000 Cycles


• Electrical Life: 10,000 Cycles


• Dimensions: View Dimensional Drawings


• Material: Nickel Plated Brass/ Stainless Steel


• LED Color: Blue/Green/Red

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.

The Bluewater 9059-2113 is a 22mm marine-grade inrush push button switch designed for demanding onboard applications. Crafted with corrosion-resistant SS316 stainless steel, this switch offers exceptional durability against salt spray, heat, vibration, and shock, ensuring reliable operation in harsh marine environments. Rated IP69K waterproof, it features Deutsch-style connectors for secure and moisture-resistant connections, making it an ideal choice for critical control systems on boats and yachts. The switch handles up to 20 amps at 12-24VDC, with dual-channel options supporting 10 amps per channel for versatile power management. Its impact-resistant construction guarantees long-lasting performance, even in demanding conditions, and its mechanical lifespan exceeds 50,000 cycles, providing dependable operation over years of use. The switch includes a blue LED backlight for enhanced night visibility, which shifts to bright red when active, offering instant confirmation of device status. The fully detachable actuator allows for customization to match your control panel aesthetic and functional needs. Installation is straightforward, requiring a 22mm hole drilled into material up to 0.24 inches thick, with color-coded wiring contacts for safe and simple setup. Whether controlling pumps, motors, or other onboard equipment, the Bluewater 9059-2113 switch combines rugged marine construction with smart features to keep your systems running smoothly and reliably. Its sleek, compact design and robust features make it a reliable component for any marine control panel, providing peace of mind during your time on the water.

Features:

• Corrosion-resistant SS316 stainless steel construction for durability in marine environments

• Rated IP69K waterproof sealing with Deutsch-style connectors for reliable moisture resistance

• Handles up to 20 amps at 12-24VDC with dual-channel support for versatile power control

• Blue LED backlighting for night visibility, with red indicator for active status confirmation

• Impact-resistant design with a mechanical lifespan of over 50,000 cycles for long-term reliability

• Detachable actuator for customization of style and function

• Easy installation with a 22mm mounting hole, suitable for materials up to 0.24 inches thick
