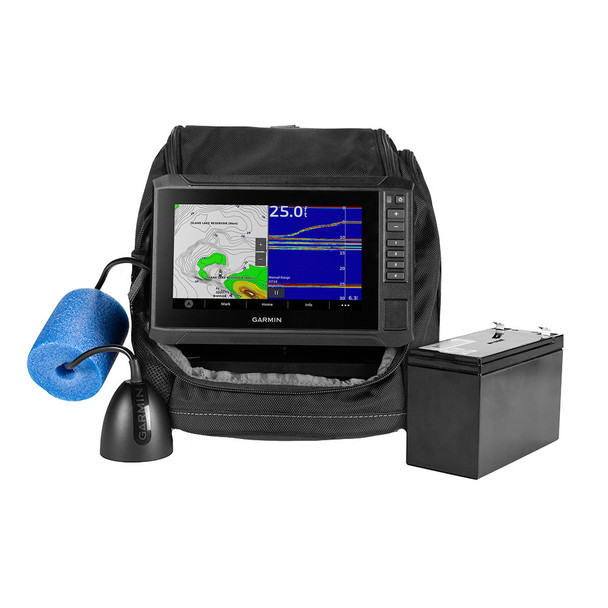

Garmin ECHOMAP UHD2 7" SV Ice Fishing Bundle with Chartplotter and GT10HN-IF Transducer

ECHOMAP UHD2 7" sv Ice Fishing Bundle with ECHOMAP UHD2 73sv GT10HN-IF Transducer

Designed for the passionate angler, the ECHOMAP UHD2 73sv Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience.

Features:

• Built with a bright 7 touchscreen display and keyed assist


• Included transducer so you see whats below


• Built-in flasher


• Garmin Navionics+ maps with 23,000+ lakes


• Rugged, portable carrying case

ECHOMAP UHD2 Chartplotter

The 7 ECHOMAP UHD2 73sv chartplotter with touchscreen and keyed assist is perfect on the ice or on your boat (additional accessory purchase required).

Ice Fishing Transducer

This bundle includes the GT10HN-IF, a high narrow CHIRP ice fishing transducer with selectable beamwidth (7 to 16 degrees), and it provides crisp, clear fish arches with excellent target separation.

Garmin Navionics+ Maps

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos

You can create custom pages that combine sonar, flashers, and maps on your display.

Supports Scanning Sonar

ECHOMAP UHD2 73sv also supports ClearV and SideV scanning sonars for nearly photographic images of whats below the boat (transducer sold separately).

Carrying Case

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

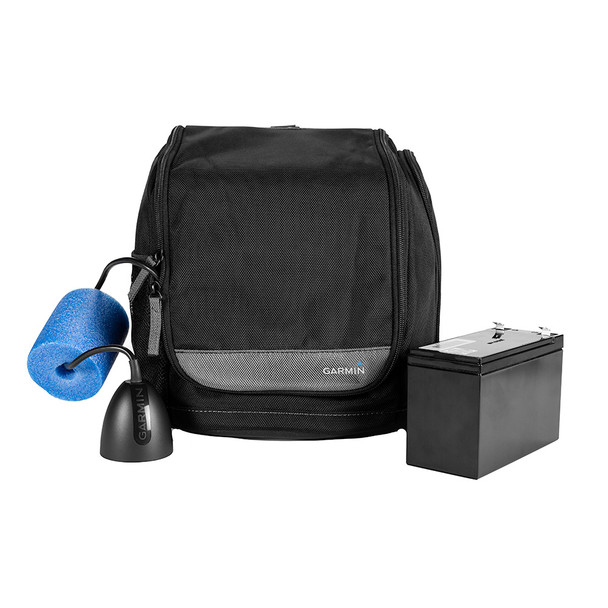

In the Box:

• ECHOMAP UHD2 73sv chartplotter


• GT10HN-IF ice fishing transducer


• Tilt/swivel mount


• Portable bag


• Base/handle


• Foam float


• Power cable


• Rechargeable battery


• Battery charger


• Documentation

General Specifications:

• Dimensions: 10.5 x 9.5 x 10.5 in. / 26.7 x 22.9 x 26.7 cm


• Touchscreen: Yes


• Display Size: 6.1 x 3.4, 7.0" in. / 15.5 x 8.7, 17.8 cm


• Display Resolution: 800 x 480 pixels


• Display Type: WVGA, IPS


• Weight: 11 lbs / 5.0 kg


• Waterproof: IPX7

Maps Memory:

• Accepts Data Cards: 1 microSD card; 32 GB maximum size


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Ice Fishing Details:

• Battery Type, Size: SLA, 7Ah


• Bag Size: Small


• Included Transducer: GT10HN-IF


• Transducer Holding Feature: Foam float

Sensors:

• Has Built-in Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• GPS: Yes


• Glonass: Yes


• Galileo: Yes


• Beidou: Yes


• Supports Waas: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-in Maps:

• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)


• Garmin Navionics+ Inland Coastal: Yes (see Additional)


• Garmin Navionics+ (Inland): Yes (see Additional)

Optional Map Support:

• Garmin Navionics+: Yes


• Garmin Navionics+ VIision+: Yes


• TOPO: Yes


• Standrad Mapping: Yes


• Garmin Quickdraw Tours: Yes

Chartplotter Features:

• ActiveCaptain Compatable: Yes

Electrical Features:

• Power Input: 9 to 18 Vdc

Sonar Features Specifications:

• Displays Sonar: Yes


• Power Output: 500 W


• Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)


• ClearV: Built-in 260/455/800/1000/1200 kHz


• SideV: Built-in 260/455/800/1000/1200 kHz


• Panoptix Sonar: Yes


• Livescope; Yes

Connections:

• NMEA 2000 Ports: Yes


• Garmin Marine Network Ports: 1


• 12-Pin Transducer Ports: 1


• Bluetooth Pairing: Yes


• Ant+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes

Additional:

• Garmin Navionics+ Inland Coastal: 75sv Canada


• Garmin Navionics + (Inland): 75sv U.S. Lakes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin ECHOMAP UHD2 7-inch sv Ice Fishing Bundle is designed to enhance your fishing experience with advanced mapping and sonar capabilities. This portable and rugged package includes the ECHOMAP UHD2 73sv chartplotter featuring a bright touchscreen display and keyed assist for easy operation in various conditions. Its compact design makes it ideal for use on the ice or boat, providing clear visuals and reliable navigation wherever your fishing adventures take you. The bundle also includes the GT10HN-IF ice fishing transducer, delivering crisp, high-resolution sonar imaging with selectable beamwidth, ensuring you see detailed fish arches and targets below the ice or water surface. The preloaded Garmin Navionics+ maps cover over 23,000 lakes across the U.S., offering detailed chart data for pinpointing fishing spots with confidence. You can customize your display by creating unique pages that combine sonar, flasher, and map views, providing a comprehensive overview of your environment at a glance. Support for scanning sonar technologies such as ClearV and SideV allows for nearly photographic images of submerged structures and fish, with additional transducer options available separately. The included rugged, portable carrying case ensures you can transport your equipment easily from hole to hole, season after season, without sacrificing protection or convenience. The bundle comes complete with necessary accessories, including a tilt/swivel mount, rechargeable battery, power cable, and foam float for the transducer, making setup and use straightforward.
This advanced chartplotter features built-in GPS, GLONASS, Galileo, and Beidou satellite support, along with NMEA 2000 compatibility for seamless integration with other marine systems. Its IPX7 waterproof rating ensures durability in harsh weather conditions. With extensive mapping options, including Auto Guidance+ and support for additional map downloads like TOPO and Quickdraw Contours, the Garmin ECHOMAP UHD2 73sv offers versatile navigation tools suitable for both inland lakes and coastal waters. Whether fishing on the ice or on the water, this bundle provides the technology and portability to optimize your fishing strategy and improve catch rates in any environment.

Features:

• Bright 7-inch touchscreen display with keyed assist for easy operation

• Includes GT10HN-IF ice fishing transducer with selectable beamwidth for high-resolution sonar imaging

• Preloaded Garmin Navionics+ maps covering over 23,000 lakes in the United States

• Supports ClearV and SideV scanning sonar for detailed underwater imaging (transducer sold separately)

• Portable, rugged carrying case for easy transport and storage

• Built-in GPS, GLONASS, Galileo, and Beidou satellite support for accurate navigation

• Supports multiple mapping options including Auto Guidance+, TOPO, and Quickdraw Contours

• Supports NMEA 2000, Garmin Marine Network, Bluetooth, and Wi-Fi connectivity

• Waterproof rating of IPX7 ensures durability in harsh weather conditions

• Expandable with additional data cards up to 32 GB for waypoint, track, and route storage
