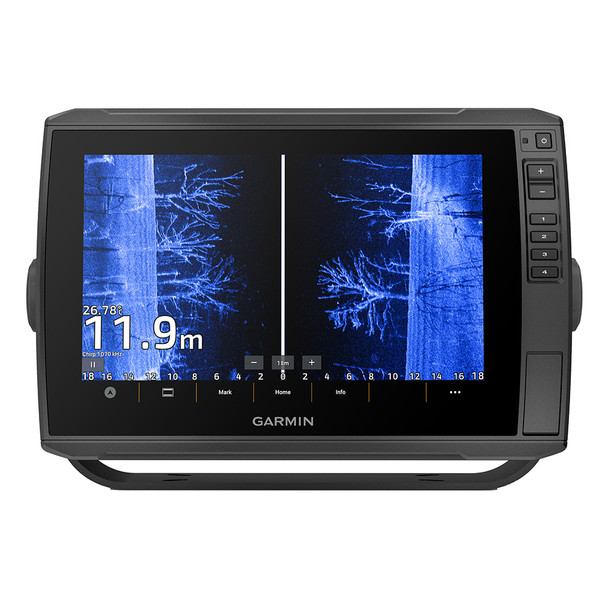

Garmin ECHOMAP Ultra 2 102sv Chartplotter with 10-Inch Touchscreen and Built-in GPS

ECHOMAP Ultra 2 102sv without Transducer

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips.

Features:

• ECHOMAP Ultra 2 102sv with Worldwide Basemap


• 10 touchscreen


• Supports livescope sonar, and more


• Wirelessly network; share sonar, waypoints, and routes.


• Capture screen recordings to share fish catches


• Multi-band GPS for improved position accuracy

Livescope Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearV and SideV scanning sonars for photo-like images of whats beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information such as sonar, waypoints, and routes with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000 Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link audio systems, and more.

ActiveCaptain App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data, and more.

Force Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

• ECHOMAP Ultra 102sv


• Power/data cable


• Bail mount with quick-release cradle


• Protective sun cover


• 8-pin transducer to 12-pin sounder adapter cable


• Hardware


• Documentation

Specifications

General:

• Dimension: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)


• Weight: 4.0 lbs (1.8 kg)


• Waterproof: IPX7


• Touchscreen: Yes


• Display Type: WXGA, IPS


• Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)


• Display Resolution: 1280 x 800 pixels


• Mounting Options: Bail or flush


• Input: Touchscreen with Keyed Assist

Maps Memory:

• Accepts Data Cards: 2 microSD cards


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• Galileo: Yes


• BeiDou: Yes


• Has Built-In Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes


• Garmin Navionics+ Inland Coastal: Yes (see Additional)


• Tide Tables: Yes (see Additional)

Optional Map Support:

• BlueChart g3: Yes


• BlueChart g3 Vision: Yes


• LakeV g3: Yes


• LakeV g3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics+ Vision+: Yes


• TOPO 100k: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• ActiveCaptain Compatible: Yes


• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC


• Typical Current Draw at 12 VDC: 2.5 A


• Maximum Current Draw at 12 VDC: 5.0 A


• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes


• Power Output: 600 W


• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)


• ClearV: Built-in 260/455/800/1000/1200 kHz


• SideV: Built-in 260/455/800/1000/1200 kHz


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• Garmin Marine Network Ports: 2 (Large Connector)


• 12-Pin Transducer Ports: 12-Pin Scanning Sonar


• ANT+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin ECHOMAP Ultra 2 102sv offers a high-resolution 10-inch sunlight-readable touchscreen display, providing anglers with a clear and detailed view of underwater structures and fish. Its robust design includes support for advanced sonar capabilities, including LiveScope support (transducer sold separately) and UHD sonar, which delivers ultra high-definition images for precise fish and structure identification. With support for multi-band GPS, this chartplotter ensures accurate positioning even in challenging environments, making it ideal for both freshwater and saltwater fishing adventures.
The device comes preloaded with a worldwide basemap and accepts two microSD cards for custom mapping, allowing users to upgrade to premium charts like Garmin Navionics Vision+ for satellite imagery and high-resolution relief shading. Its wireless networking capabilities enable seamless sharing of sonar data, waypoints, and routes with other compatible Garmin chartplotters on the boat, enhancing coordination during fishing trips. Additionally, pairing with the ActiveCaptain app provides access to software updates, user community data, and screen recordings, further enriching the user experience.
Designed for versatility, the Garmin ECHOMAP Ultra 2 102sv features a quick-disconnect bail mount for easy installation and removal, making it portable and adaptable to different boat setups. It supports a wide range of connectivity options, including NMEA 2000, Garmin Marine Network, and ANT+, which allows integration with autopilots, heading sensors, and wireless accessories. The device also supports AIS and DSC features for enhanced safety and vessel management. With its waterproof IPX7 rating and comprehensive onboard sensors, this chartplotter is built to withstand harsh marine conditions while providing reliable navigation and fish-finding performance. Whether targeting fish in deep waters or navigating complex coastlines, the Garmin ECHOMAP Ultra 2 102sv delivers professional-grade features in a user-friendly package designed for serious anglers and boaters alike.

Features:

• 10-inch sunlight-readable touchscreen display with high resolution

• Supports LiveScope sonar (transducer sold separately) for real-time scanning

• Built-in UHD sonar with ClearV and SideV imaging for detailed underwater views

• Preloaded with worldwide basemap and accepts dual microSD cards for custom maps

• Wireless network sharing of sonar, waypoints, and routes with compatible devices

• Supports premium maps including Garmin Navionics Vision+ with satellite imagery

• Multi-band GPS with enhanced accuracy in challenging environments

• Compatibility with NMEA 2000 network for sensor and autopilot integration

• ActiveCaptain app connectivity for updates, data sharing, and community features

• Quick-release bail mount for easy installation and portability

• Supports AIS and DSC for safety and vessel management

• Waterproof IPX7 rating for durability in harsh marine conditions

• Includes power/data cable, sun cover, mounting hardware, and transducer adapter
