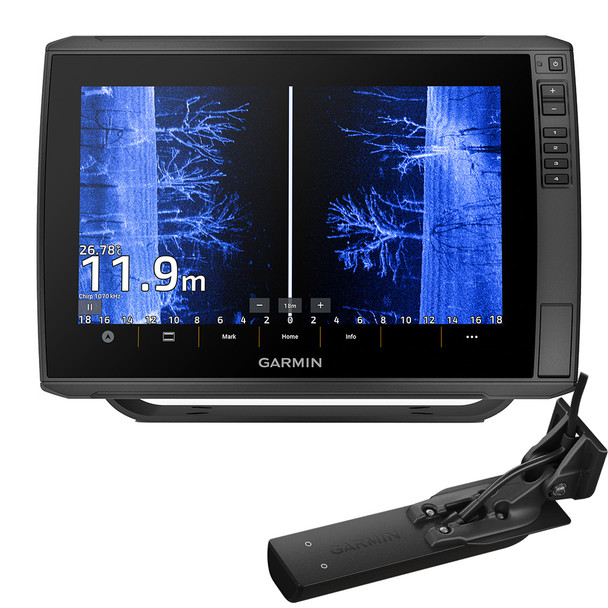

Garmin ECHOMAP Ultra 2 122sv with GT56UHD-TM Transducer – High-Definition Touchscreen Chartplotter for Marine Navigation and Fish Finding

ECHOMAP Ultra 2 122sv with GT56UHD-TM Transducer

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display includes the transducer bundle, which adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

Features:

• ECHOMAP Ultra 2 122sv with Worldwide Basemap


• GT56UHD-TM Transducer


• 12 touchscreen


• Supports livescope sonar, and more


• Wirelessly network; share sonar, waypoints, and routes.


• Capture screen recordings to share fish catches


• Multi-band GPS for improved position accuracy

Livescope Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearV and SideV scanning sonars for photo-like images of whats beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information such as sonar, waypoints, and routes with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000 Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link audio systems, and more.

ActiveCaptain App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data, and more.

Force Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

• ECHOMAP Ultra 122sv


• GT56UHD-TM transducer


• Power/data cable


• Bail mount with quick-release cradle


• Protective sun cover


• Hardware


• Documentation

Specifications

General:

• Dimension: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)


• Weight:5.5 lbs (2.5 kg)


• Waterproof: IPX7


• Touchscreen: Yes


• Display Type: WXGA, IPS


• Display Size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)


• Display Resolution: 1280 x 800 pixels


• Mounting Options: Bail or flush


• Input: Touchscreen with Keyed Assist

Maps Memory:

• Accepts Data Cards: 2 microSD cards


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• Galileo: Yes


• BeiDou: Yes


• Has Built-In Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes


• Garmin Navionics+ Inland Coastal: Yes (see Additional)


• Tide Tables: Yes (see Additional)

Optional Map Support:

• BlueChart g3: Yes


• BlueChart g3 Vision: Yes


• LakeV g3: Yes


• LakeV g3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics+ Vision+: Yes


• TOPO 100k: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• ActiveCaptain Compatible: Yes


• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC


• Typical Current Draw at 12 VDC: 2.5 A


• Maximum Current Draw at 12 VDC: 5.0 A


• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes


• Power Output: 600 W


• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)


• ClearV: Built-in 260/455/800/1000/1200 kHz


• SideV: Built-in 260/455/800/1000/1200 kHz


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• Garmin Marine Network Ports: 2 (Large Connector)


• 12-Pin Transducer Ports: 12-Pin Scanning Sonar


• ANT+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin ECHOMAP Ultra 2 122sv with GT56UHD-TM Transducer offers a comprehensive marine navigation and fish-finding solution designed for anglers and boaters seeking precision and clarity. Featuring a bright, sunlight-readable 12-inch touchscreen display with a high resolution of 1280 x 800 pixels, this chartplotter provides vivid visuals for easy target and structure identification in diverse lighting conditions. The device includes the worldwide basemap and supports a wide range of premium map options, such as Garmin Navionics+ and BlueChart g3, allowing users to customize their navigation experience with high-resolution relief shading, satellite imagery, and detailed contours. The integrated Auto Guidance+ feature assists in route planning, providing reliable, turn-by-turn directions to your favorite fishing spots or docking locations.
Equipped with the GT56UHD-TM transducer, the ECHOMAP Ultra 2 delivers Ultra High-Definition scanning sonars, including ClearV and SideV imaging at multiple frequency bands, for photo-like underwater views. The dual-frequency CHIRP sonar with a power output of 600 watts enhances target separation and bottom detail, while the support for LiveScope sonar (sold separately) allows real-time live scanning of underwater environments. The device’s high-contrast, vivid color palettes make it easier to distinguish fish, structure, and obstacles, even in challenging conditions. Wireless networking capabilities enable seamless sharing of sonar data, waypoints, and routes with other compatible Garmin chartplotters on your vessel, promoting integrated boat management.
The Garmin ECHOMAP Ultra 2 122sv supports multi-band GPS and multiple satellite constellations (GLONASS, Galileo, BeiDou), ensuring precise positioning even in challenging environments. The multi-function device is compatible with NMEA 2000 and NMEA 0183 networks, allowing connection to heading sensors, autopilots, and audio systems. The ActiveCaptain app enhances usability by providing software updates, screen recordings, and access to the Garmin Quickdraw Community. Additionally, the chartplotter can wirelessly connect to Garmin Force trolling motors for waypoint navigation and route following, further integrating your boating experience. The unit features a durable IPX7 waterproof design, a quick-disconnect bail mount for easy portability, and comes with a comprehensive bundle including the transducer, power/data cable, sun cover, and mounting hardware. Overall, the Garmin ECHOMAP Ultra 2 122sv with GT56UHD-TM transducer combines advanced sonar technology, precise navigation, and user-friendly features to elevate your fishing and boating adventures.

Features:

• 12-inch sunlight-readable touchscreen display with high resolution

• Includes GT56UHD-TM transducer with Ultra High-Definition ClearV and SideV scanning sonar

• Supports LiveScope live-scanning sonar (transducer sold separately)

• Worldwide basemap with optional premium map upgrades for detailed navigation

• Vivid color palettes for enhanced target and structure differentiation

• Wireless sharing of sonar, waypoints, and routes with compatible Garmin chartplotters

• Multi-band GPS with multi-constellation support for improved positioning accuracy

• NMEA 2000 and NMEA 0183 network compatibility for added device integration

• ActiveCaptain app for software updates, screen recording, and community sharing

• Wireless connection to Garmin Force trolling motor for route navigation

• Durable, waterproof IPX7 design with quick-disconnect bail mount

• Supports advanced sonar features including Panoptix and LiveScope
