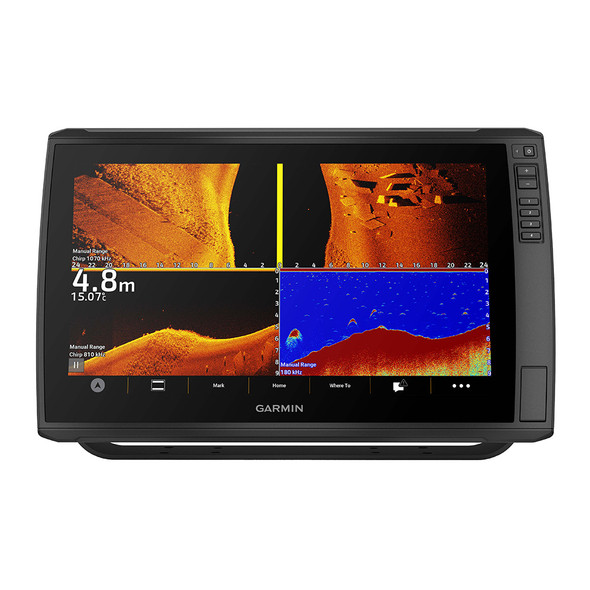

Garmin ECHOMAP Ultra 2 16-Inch Chartplotter 162sv with Worldwide Basemap (No Transducer)

ECHOMAP Ultra 2 16 Chartplotter 162sv with Worldwide Basemap without Transducer

SEE BIGGER CATCHES ON A BIGGER SCREEN

Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness, and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+ mapping. Plus, theres support for the full line of LiveScope sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.

LIVESCOPE SONAR SUPPORT

The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

BUILT-IN UHD SONAR

Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearV and SideV scanning sonars for photo-like images of whats beneath the surface.

PRELOADED CHARTS

Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more. For added features, Garmin Navionics Vision+ premium mapping is optionally available (sold separately).

HDMI OUTPUT

Use the chartplotters HDMI output connector to share your sonar screen with a TV or other external display.

VOICE CONTROL FEATURES

Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force trolling motor modes, favorite keys, and sonar inputs.

VIVID COLOR PALETTES

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

WIRELESS NETWORKING

Share sonar3, waypoints, and routes with another ECHOMAP Ultra 2 or UHD2 plotter on board.

MULTI-BAND GPS

Get improved position accuracy with multi-band GPS

NMEA 2000 NETWORK COMPATIBILITY

Connect to heading sensors, autopilots, Fusion-Link audio systems, and more.

ACTIVECAPTAIN APP

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data, and more4.

FORCE TROLLING MOTOR

Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.

SCREEN RECORDING

Use the recording feature through the ActiveCaptain app on your smartphone to share images from your chartplotter.

BAIL MOUNT WITH KNOBS

Surface mount your compatible ECHOMAP Ultra 2 chartplotter by using our bail mount with knobs; the mount tilts for optimum viewing.

Specifications:

• Dimensions: 16.9 x 10.5 x 3.14 (43.0 x 26.6 x 8.0 cm)


• Weight: 9.5 lbs (4.31 kg)


• Water rating: IPX7


• Touchscreen: Yes


• Display Type: FHD, IPS


• Display Size: 13.6 x 7.7; 15.6 diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)


• Display resolution: 1920 x 1080 pixels


• Mounting Options: Bail or flush


• Input: Touchscreen with Keyed Assist


• Accepts Data Cards: 2 microSD cards


• Waypoints: 5000


• Track points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100


• Power Input: 9 to 18 Vdc


• Typical current draw at 12 Vdc: 3.9 A


• Maximum current draw at 12 Vdc: 6.6 A


• Maximum power usage at 10 Vdc: 48 W


• Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)


• ClearV: Built-in 260/455/800/1000/1200 kHz


• SideV: Built-in 260/455/800/1000/1200 kHz

Whats In The Box

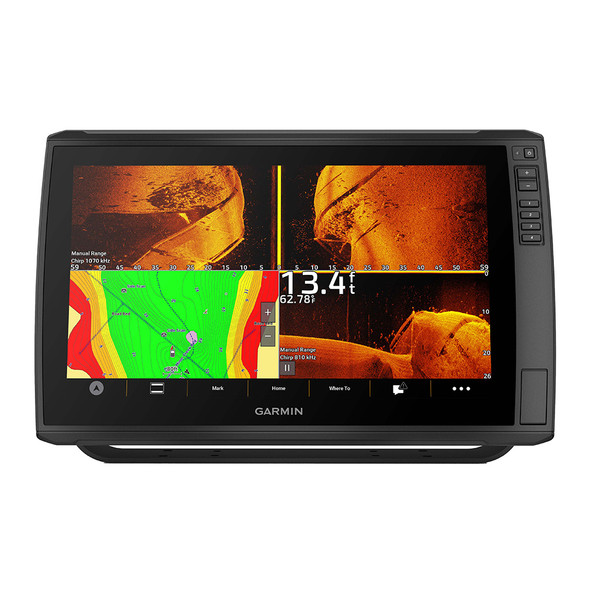

• ECHOMAP Ultra 162sv or 166sv (depending on the version selected) with optional Garmin Navionics+


• Power cable


• Bail mount with knobs


• Protective sun cover


• Trim caps


• Hardware


• Documentation

1LiveScopeSystem sonar transducer sold separately2Via one-to-one unit wireless connection only3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Garmin is under license.

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin ECHOMAP Ultra 2 16" chartplotter 162sv is designed for serious anglers seeking enhanced navigation and sonar capabilities on a large, high-resolution display. Featuring a full HD IPS touchscreen, this chartplotter delivers exceptional clarity, brightness, and readability, allowing users to easily interpret mapping and sonar data. Its expansive 16-inch screen provides a comprehensive view of underwater structures, waypoints, and navigation routes, helping anglers identify bigger catches and improve their fishing success.

This model comes preloaded with Garmin Navionics+ mapping, which includes a one-year subscription for daily updates, depth shading, and detailed charts. Support for the full lineup of LiveScope sonar transducers (sold separately) enables real-time, live-scanning sonar imaging, offering photo-like images of what's beneath the surface. The built-in UHD sonar, when paired with the included GT56 transducer, provides CHIRP traditional sonar and ultra high-definition ClearV and SideV scanning sonar, making it easier to distinguish targets and structures with vivid color palettes.

The Garmin ECHOMAP Ultra 2 162sv supports wireless sharing of sonar, waypoints, and routes with other compatible Garmin chartplotters on board. Its multi-band GPS improves position accuracy, while NMEA 2000 compatibility allows connection to heading sensors, autopilots, and audio systems. The device's HDMI output facilitates external display sharing, and built-in Bluetooth enables voice control for hands-free operation of various functions such as trolling motor modes and sonar inputs. The chartplotter is also compatible with the ActiveCaptain app, providing options for software updates, screen recording, and community data sharing.

Designed with durability in mind, this chartplotter features an IPX7 water rating and a versatile bail or flush mounting option with a tilting mount for optimal viewing angles. Its intuitive touchscreen interface, complemented by assist keys, simplifies navigation and operation. Whether mounted on a boat for fishing or navigation, the Garmin ECHOMAP Ultra 2 162sv offers advanced imaging, comprehensive mapping, and seamless connectivity to enhance your on-water experience.

In the box, you'll find the Garmin ECHOMAP Ultra 2 16" chartplotter, power cable, bail mount with knobs, protective sun cover, trim caps, hardware, and documentation. Please consult the owner’s manual online for detailed installation and operational instructions. This versatile chartplotter is ideal for anglers and boaters who demand high performance, clarity, and connectivity in a rugged marine environment.

Features:

• Large 16-inch Full HD IPS touchscreen display for clear and bright visuals

• Preloaded Garmin Navionics+ charts with one-year update subscription

• Supports LiveScope live-scanning sonar (transducers sold separately)

• Built-in UHD sonar with CHIRP traditional and ultra high-definition ClearV and SideV scanning sonar

• Vivid color palettes for easy target and structure identification

• Wireless sharing of sonar, waypoints, and routes with other Garmin chartplotters

• Multi-band GPS for enhanced position accuracy

• NMEA 2000 compatible for connection to sensors and autopilots

• HDMI output for external display sharing

• Built-in Bluetooth enables voice control and remote operation

• Supports ActiveCaptain app for updates, recording, and data sharing

• Durable IPX7 water rating with bail or flush mounting options

• Intuitive touchscreen interface with assist keys for easy operation

• Compatible with Force trolling motor for wireless navigation and route following
