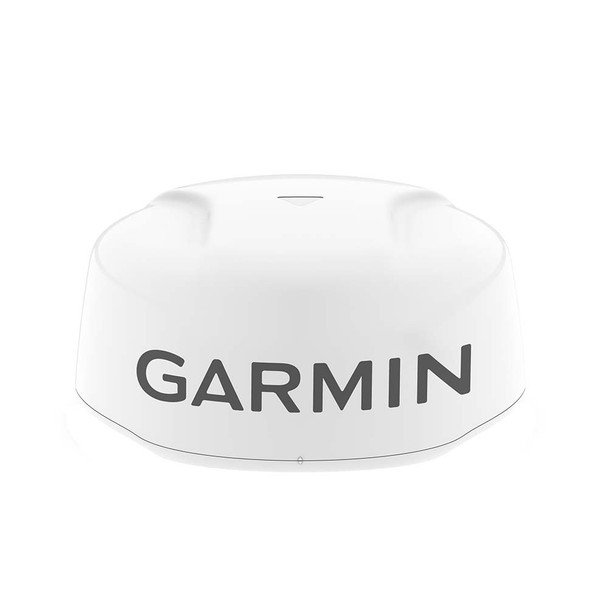

Garmin GMR Fantom 18x Dome Radar - White

GMR Fantom 18x Dome Radar - White

See whats coming on your compatible chartplotter with GMR Fantom 18x dome radar. When visibility is low and situational awareness is crucial, you need a radar you can depend on. Get 50 watts of output power for long-range and better target detection. Confidently travel at higher speeds and detect boats approaching at high speeds with up to 60 RPM rotation speed. The power save feature lets you choose when you need more power or less, so you have power when you need it and can conserve it when you dont. With timed transmit mode, you can even specify active and inactive times down to the second to help reduce power consumption so you can stay on the water longer than ever. MotionScope technology helps detect moving targets and highlights them in different colors so you can navigate around other boats or severe weather.

Features:

• 18 50-watt solid-state dome radar features a long-range and improved target detection on your compatible chartplotter


• Adjust on-screen target resolution for better separation based on your surroundings by using the target size feature


• Up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed


• The power save feature lets you draw more or less power based on the performance you need


• Timed transmit mode lets you specify active and inactive times down to seconds instead of minutes for reduced power consumption


• MotionScope technology uses the Doppler effect to detect moving targets and highlight targets on your compatible chartplotter in different colors as they move toward or away from you


• True echo trails leave a historical trail on your compatible chartplotter to help you quickly and easily identify moving targets and potential collision threats


• Dual range provides split-screen images on your compatible chartplotter with separate range settings and controls for both close and long range


• Dual radar support allows each of your compatible chartplotters on your boat to pull data from one of two different radar sources to provide redundancy


• Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions


• Dynamic Sea Filter automatically adjusts sea clutter based on sea conditions


• Radar overlay displays radar images over maps on your compatible chartplotter

Whats in the Box

• GMR Fantom 18x


• Power cable (15 m/49.21 ft)


• BlueNet network cable (15 meters)


• BlueNet Network to RJ45 Adapter Cable


• Installation instructions


• Mounting hardware kit and template

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin GMR Fantom 18x Dome Radar provides advanced detection capabilities for your compatible chartplotter, ensuring reliable performance in low visibility conditions. With 50 watts of output power and a high rotation speed of up to 60 RPM, this radar offers long-range detection and the ability to identify fast-approaching vessels, enhancing your situational awareness on the water. Its solid-state design ensures durability and consistent operation, making it suitable for demanding marine environments. The radar's features, like adjustable target resolution and True echo trails, help you distinguish between moving objects and stationary backgrounds, reducing risk during navigation.

Power management is a key benefit of the Garmin GMR Fantom 18x, with a power save mode that conserves energy when needed, and a timed transmit mode allowing you to set active and inactive periods down to the second. This flexibility extends your time on the water by optimizing power consumption without sacrificing performance. MotionScope technology utilizes the Doppler effect to detect and highlight moving targets in real-time, displaying them in different colors on your chartplotter for quick identification. Dual range capabilities enable split-screen views with separate range controls, providing both close and long-distance monitoring simultaneously.

Supporting multiple chartplotters with dual radar support, the GMR Fantom 18x ensures redundancy and reliable data sharing across your marine electronics network. Features like dynamic auto gain and sea filter automatically adjust to changing conditions, maintaining optimal image clarity by reducing clutter and enhancing target visibility. Radar overlay seamlessly integrates radar images over maps on your chartplotter, offering a comprehensive view of your surroundings. The package includes the radar unit, power and BlueNet network cables, installation hardware, and detailed instructions, facilitating straightforward setup. Designed to deliver long-range detection with high resolution and smart power management, the Garmin GMR Fantom 18x Dome Radar is an essential tool for serious mariners seeking enhanced safety and navigation precision.

Features:

• 18-inch 50-watt solid-state dome radar with long-range detection and improved target separation

• Adjustable on-screen target resolution for better clarity based on environmental conditions

• Up to 60 RPM rotation speed for rapid refresh rate and moving target detection

• Power save feature to optimize energy use based on current needs

• Timed transmit mode allowing precise control of active and inactive periods to reduce power consumption

• MotionScope technology utilizes Doppler effect to detect and highlight moving targets in different colors

• True echo trails display historical target movement for quick threat assessment

• Dual range feature provides split-screen images with independent range controls for close and distant objects

• Dual radar support enables multiple chartplotters to connect to separate radar sources for redundancy

• Dynamic Auto Gain automatically adjusts sensitivity for optimal target detection

• Dynamic Sea Filter reduces sea clutter based on current sea conditions

• Radar overlay displays radar information directly over chart maps for integrated situational awareness
