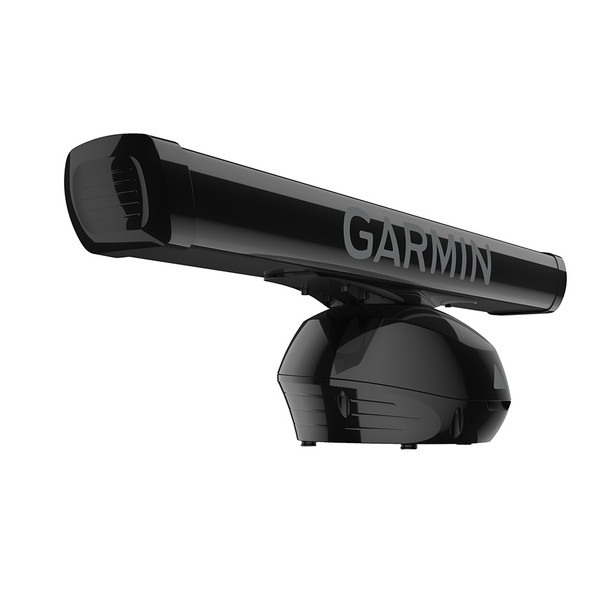

Garmin GMR Fantom 254 Radar - Black

GMR Fantom 254 Radar - Black

GMR Fantom 254 is the most powerful 4 consumer solid-state radar.

Features:

• MotionScope highlights everything that moves so there are no surprises


• GMR Fantom brings the power (250 watts of it)


• Know the long and short of it with a detection range of 20 to 96 nautical miles


• The more the merrier with MARPA. Keep track of up to 30 moving targets


• Clear the clutter with scan-to-scan averaging

Automatic Acquisition

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones, or MotionScope.

Motionscope Technology

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather or toward fishing spots where birds feed at the surface.

Clear the Way

Scan-to-scan averaging aids in the reduction of sea clutter and interference, so users have a clear view of whats out there.

Auto Bird Gain

Locate flocks of birds at the waters surface where baitfish are also likely to be found

Pulse Compression

This feature provides high-resolution imaging while maximizing energy to enhance target detection and identification.

Echo Trails

A historical trail is left on the screen to help users quickly and easily identify moving targets and potential collision threats.

Radar Overlay

Overlay radar images onto a chart plotters map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.

Dynamic Sea Filter

Dynamic Sea Filter automatically adjusts gain to calm, medium, and rough sea conditions.

Guard Zone

Set the safety zone, and receive an alarm when an object enters the zone.

General Specifications:

• Dimension: Pedestal: 16.6 x 14.3 x 10.7 (42.1 x 36.4 x 27.1 cm)Full assembly: 15.9 height x 51.8 diameter (40.3 cm x 131.4 cm)


• Weight: Array: 11.4 LB (5.2 KG); Pedestal: 34.7 LB (15.7 KG)


• Waterproof: IPX6


• Max Wind Load: 80KT


• Antenna Length: 48 (121.92 CM)


• Rotation Speed (RPM): 24 and 48 RPM (high speed only available in single range mode with motion scope disabled and on range settings of 12 NM or lower)


• Beam Width: 1.8 Horizontal, 23 Vertical


• Maximum Range: 96 NM


• Minimum Range: 6 Meters


• Radar Type: Open-Array

Electrical Specifications:

• Power Input: 10-32 V DC


• Transmit Power: 250 W

Radar Specifications:

• Dual Range: Yes


• Overlay: Yes


• Dual Radar Support: Yes


• Auto Bird Gain: Yes


• Auto Gain: Dynamic


• Marpa Target Tracking: Yes (requires heading sensor, sold separately)


• Echo Trails: Yes


• Motionscope: Yes


• Programmable Antenna Parking: Yes


• Target Size: Yes


• Scan Averaging: Yes

In the Box:

• Black GMR Fantom 254 antenna and pedestal


• Mounting hardware kit and template


• Right-angle power cable (15 meters)


• Right-angle BlueNet network cable (15 meters)


• BlueNet Network to RJ45 Adapter Cable


• Voltage converter


• Documentation

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin GMR Fantom 254 Radar is a high-performance marine radar designed for serious boaters seeking reliable and advanced navigation tools. Featuring a powerful 250-watt transmitter and an open-array antenna, this radar offers a maximum detection range of up to 96 nautical miles, allowing you to see distant vessels and potential hazards well before they come into view. Its dual-range capability and overlay support enable seamless integration with chart plotters, providing a comprehensive situational awareness system essential for safe navigation in various maritime conditions. The radar's intuitive features, including echo trails and MotionScope technology, highlight moving targets and help identify threats or opportunities quickly, whether you're avoiding obstacles, tracking weather patterns, or locating fishing schools.

Designed with ease of use in mind, the Garmin GMR Fantom 254 includes automatic target tracking with MARPA, capable of monitoring up to 30 moving objects simultaneously. The scan-to-scan averaging feature reduces sea clutter and interference, delivering clear, crisp images even in challenging sea states. Auto Bird Gain helps locate flocks of birds and baitfish at the water surface, enhancing your fishing success. The dynamic sea filter automatically adjusts gain settings based on sea conditions, ensuring optimal image quality regardless of weather or sea state. Additionally, the radar supports radar overlay onto chart plotter maps, providing a unified view that simplifies navigation and situational awareness.

Constructed to withstand marine environments, the Garmin GMR Fantom 254 features waterproof IPX6 ratings and is engineered to handle wind loads up to 80 knots. Its robust design includes a pedestal and array that are both durable and easy to install. The radar system operates with a rotation speed of up to 48 RPM in high-speed mode, and its beam width ensures precise target detection. The system includes comprehensive accessories such as mounting hardware, power and network cables, and a voltage converter. Whether you're navigating coastal waters, fishing, or cruising open seas, the Garmin GMR Fantom 254 radar provides the advanced features and reliability needed for confident maritime adventures.

Features:

• MotionScope technology highlights moving targets with color coding for quick identification

• 250-watt power output for long-range detection up to 96 nautical miles

• Automatic MARPA target tracking supports up to 30 objects without user prompting

• Scan-to-scan averaging reduces clutter and interference for clearer images

• Auto Bird Gain detects flocks of surface birds and baitfish

• Pulse compression offers high-resolution imaging for precise target identification

• Echo trails display historical movement paths to identify potential collision threats

• Radar overlay integrates radar images directly onto chart plotter maps

• Dynamic Sea Filter automatically adjusts gain based on sea conditions

• Guard zone feature provides alarms when objects enter predefined safety zones

• Waterproof construction (IPX6) and robust design withstand harsh marine environments

• Dual range capability and overlay support enhance situational awareness
