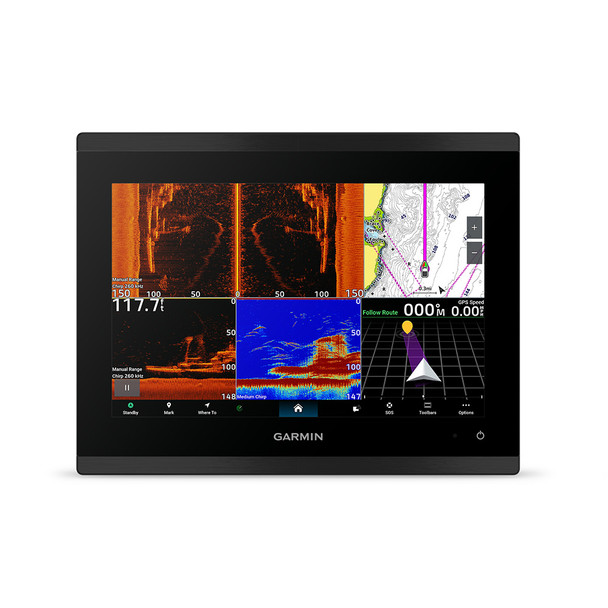

Garmin GPSMAP 9210xsv Premium Chartplotter with Garmin Navionics+ and High-Definition Sonar

GPSMAP 9210xsv Premium Chartplotter/Sonar Combo with Garmin Navionics+

PARADISE STARTS HERE

Its the integrated high-resolution touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design materials plus our best built-in sonar yet.

Features:

• Premium IPS sunlight-readable touchscreen display


• Up to 7 times faster processing power than previous generations


• See fish like never before with our best sonar ever


• Preloaded Garmin Navionics+ charts with Auto Guidance+ technology¹



• Gigabit speeds on the Garmin Bluenet network


• Network with multiple chartplotters, cameras, and more

Premium Chartplotter

The HD IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.

Faster. Much Faster.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes¹ with lightning speed with an optional Garmin Navionics+ subscription.

High-Definition Sonar

Fish in stunning high definition with built-in 1 kW xCHIRP and Garmin RapidReturn sonar. Excellent target separation helps you see crisp and clear fish targets all around.

Garmin Bluenet Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars and enjoy gigabit-speed

Entertainment Options

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

Connect Your Ecosystem

Take command through digital system integrations to monitor, automate, and control your vessel. The chartplotter uses the NMEA 2000 network to connect to your compatible accessories.

Connect

• Software Updates: Get wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet.


• Engine Monitoring: Keep tabs on engine performance with extensive engine integration.


• Custom Look: Manufacturers can customize the homepage layout and splash screen for a brand-tailored experience.

Navigate

• Mapping: Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates, and more¹ (subscription required).


• Premium Charts: Get support for Garmin Navionics Vision+ charts with premium relief shading and satellite imagery.


• Know Where You Are: Get your precise location with the built-in dual-frequency 10 Hz GPS.


• Autopilot: Control the autopilot with any compatible chartplotter on the network with autopilot integration.

Integrate

• Connect Cameras: Get extensive camera support and control to see footage directly on the chartplotter.


• Control with Your Watch: Connect to your chartplotter with your compatible Garmin smartwatch.


• Wireless Connectivity: Connect compatible devices with integrated Bluetooth and ANT technologies.


• Fish Mapping: Get comprehensive fishing data with the Fish Mapping feature from SiriusXM Radio (accessory purchase and subscription required).


• Verbal Commands: Use spoken commands to control the chartplotter through your compatible headset or quatix smartwatch.


• Weather-Resistant: The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

Whats In The Box

• GPSMAP 9210xsv premium chartplotter


• Power cable


• Backbone/drop cable (2 meters) and T-connector for the NMEA 2000 Network


• Bail mount with knobs


• Flush mount kit


• Protective cover


• Trim piece snap covers


• Documentation

Specifications:

General:

• Dimension: 10.24 x 7.87 x 3.54


• Weight: 5.55 lbs


• Water Rating: IPX7


• Touchscreen: Yes


• Display Type: WUXGA, IPS; Edge Lit backlight


• Display Size: 8.54 x 5.34 x 10.1 diagonal


• Display Resolution: 1920 x 1200 pixels


• Mounting Options: Bail, flat, or flush


• Input: Touchscreen


• Polarized Lens Viewability: Yes

Maps Memory:

• Accepts Data Cards: 2 microSD cards (on rear of product)


• Waypoints: 5,000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• GALILEO: Yes


• BEIDOU: Yes


• Has Built-in Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-in Maps:

• Built-in Auto Guidance+: Yes


• Garmin Navionics+ Inland Coastal: Yes


• Garmin Navionics+ (Coastal): Yes


• Garmin Navionics+ (Inland): Yes


• Tide Tables: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes


• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• GCV Black Box Sonar Support: Yes


• Activecaptain Compatible: Yes


• Supports Voice Commands: Yes


• GRID (Garmin Remote Input Device) Compatible: Yes


• GRID 20 Compatible: Yes


• Wireless Remote Compatible: Yes


• Sailing Features: Yes


• Spoken Audio Alerts: Yes


• Onehelm Support: Yes

Electrical Features:

• Power Input: 10 to 32 Vdc


• Typical Current Draw at 12Vdc: 2.43A


• Maximum Current Draw at 12Vdc: 2.8A


• Maximum Power Usage at 10Vdc: 29w

Sonar Features:

• Display Sonar: Yes


• Power Output: 1 kW


• Traditional Sonar (Dual Frequency/Beam): yes (dual 1 kW)


• Supports Built-In xCHIRP: Yes


• Supports Built-In RapidReturn: Yes (up to 2x)


• Clearv: Yes


• Sidev: Yes


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• NMEA 0183 Input (RX) Ports: 1


• NMEA 0183 Output (TX) Ports: 1


• Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• J1939 Ports: 1


• Garmin Bluenet Networks Ports: 2


• USB Ports: yes (1x USB-C)


• Bluetooth Pairing: Yes


• ANT (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes


• Wi-Fi Frequency Bands: 2.4 GHz 5 GHz


• Audio Output: Yes

^{1Auto Guidance+ is for planning purposes only and does not replace safe navigation operations}

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin GPSMAP 9210xsv offers a high-resolution, edge-to-edge touchscreen display designed for serious anglers and marine captains who require advanced navigation and sonar performance. Its 8.54-inch diagonal WUXGA IPS touchscreen features sunlight readability and a sleek, modern design that integrates seamlessly into a glass helm environment. With processing speeds up to 7 times faster than previous models, this chartplotter ensures rapid chart rendering, route calculations, and smooth operation, making navigation intuitive and efficient. Preloaded with Garmin Navionics+ charts, including both inland and coastal maps, along with Auto Guidance+ technology, it provides reliable routing and detailed mapping for any voyage.

Built-in high-definition sonar capabilities include Garmin’s best ever 1 kW xCHIRP and Garmin RapidReturn sonar, delivering crisp, clear fish targets with excellent target separation. Support for traditional dual-frequency sonar, SideV, ClearV, and advanced Panoptix LiveScope ensures anglers can see their surroundings in stunning detail. The device also supports Garmin’s GCV black box sonar for expanded sonar options, making it ideal for serious fishing adventures.

The GPSMAP 9210xsv features Garmin’s Gigabit Bluenet network technology, allowing multiple chartplotters, cameras, radars, and sonar devices to connect seamlessly and operate at gigabit speeds. This extensive network capability facilitates comprehensive integration within your vessel’s ecosystem. Connectivity options include Bluetooth, ANT, Wi-Fi, USB-C, and NMEA 2000, enabling wireless updates, engine monitoring, camera control, and remote operation via compatible Garmin smartwatches or remote devices. The device also supports voice commands and spoken audio alerts for safer, hands-free operation.

Designed for durability, the GPSMAP 9210xsv is rated IPX7 for water resistance, ensuring reliable performance in harsh marine environments. Its versatile mounting options, including bail, flush, and flat mount, allow for flexible installation. The device supports extensive navigation features such as waypoint management, route planning, tide tables, and support for premium Garmin charts with satellite imagery. It also integrates with autopilot systems and offers customizable user interface options to tailor the experience to your preferences. All these features come in a package that includes a power cable, backbone/drop cable, mounting hardware, protective cover, and comprehensive documentation, making installation straightforward.

Whether you're fishing offshore or navigating complex inland waterways, the Garmin GPSMAP 9210xsv provides the advanced tools and reliability needed for confident, safe, and productive voyages across all marine environments.

Features:

• Premium IPS sunlight-readable touchscreen display for clear visibility in all lighting conditions

• Processing speed up to 7 times faster than previous models for rapid chart rendering and route calculation

• High-definition built-in sonar with 1 kW xCHIRP and Garmin RapidReturn for crisp fish targeting

• Preloaded Garmin Navionics+ charts with Auto Guidance+ technology for reliable navigation

• Gigabit-speed Garmin Bluenet network for connecting multiple devices, cameras, and radars

• Supports extensive network connectivity including Bluetooth, ANT, Wi-Fi, and NMEA 2000

• Durable IPX7 water resistance for harsh marine conditions

• Versatile mounting options: bail, flush, or flat mount for flexible installation

• Advanced navigation features such as waypoint management, tide tables, and autopilot control

• Customizable interface with support for premium charts, satellite imagery, and voice commands
