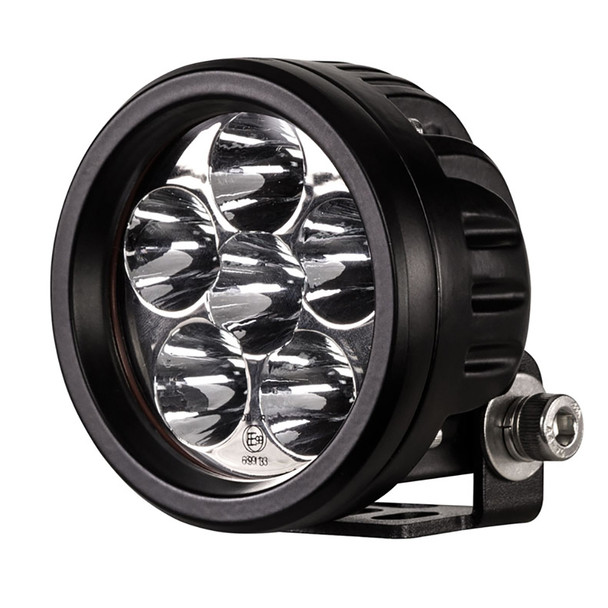

HEISE LED Lighting Systems HE-DL2 3.5-inch Round LED Driving Light for Vehicles

Round LED Driving Light - 3.5"

SPECS

• Input Voltage: 10-30V DC


• Wattage: 18W (6-3WOSRAMLEDs)


• Raw Lumens: 1440


• Color Temperature: 6000K


• Beam Pattern: 8 Spot

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing


• Housing Color: Black


• Membrane: Gore


• Lens Material: PC


• Mounting Bracket: Black Powder Coated Steel


• Hole Dimensions: Mounting Bolt Drill .25in


• Electronics: Integrated-Epoxy Encapsulated


• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40 C to +60 C


• Current Consumption: .9 amps at 13.8 volts


• IP Rating: IP67


• Protections: Reverse Polarity


• Optional black cover HE-DLC35 available

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems HE-DL2 3.5-inch round LED driving light is designed to provide powerful illumination for your vehicle or off-road setup. Featuring an 8-spot beam pattern, this light offers a bright output of 1,440 raw lumens with a color temperature of 6000K, ensuring clear visibility during nighttime or low-light conditions. Its 18-watt LED configuration, utilizing six high-quality OSRAM LEDs, delivers reliable performance with a low current draw of just 0.9 amps at 13.8 volts, making it energy-efficient for extended use.

Constructed with a durable die-cast aluminum housing finished in black, the HE-DL2 is built to withstand harsh environments. The lens is made from impact-resistant polycarbonate, and the entire assembly is sealed with Gore membrane technology to achieve an IP67 rating, providing excellent water and dust resistance. The mounting hardware includes a black powder-coated steel bracket, with a drill hole for the mounting bolt measuring 0.25 inches, ensuring secure installation. The electronics are integrated and epoxy encapsulated for added protection, while stainless 316 hardware enhances corrosion resistance, making this light suitable for off-road, truck, or utility vehicle applications.

Operating efficiently within temperatures ranging from -40°C to +60°C, the HE-DL2 is designed for reliability in extreme conditions. It features reverse polarity protection and optional accessories such as a black cover for added durability and aesthetic versatility. Whether for enhancing visibility during night drives or auxiliary lighting for off-road adventures, this LED driving light offers a robust, high-performance solution that combines advanced construction with energy-efficient illumination.

Features:

• Input Voltage: 10-30V DC for versatile vehicle compatibility

• Wattage: 18W with six OSRAM LEDs for bright, reliable lighting

• Raw Lumens: 1440 for enhanced visibility

• Color Temperature: 6000K for daylight-like illumination

• Beam Pattern: 8-spot for focused, long-distance lighting

• Housing Material: Die-cast aluminum for durability

• Housing Color: Black for a sleek, professional appearance

• Lens Material: Impact-resistant polycarbonate

• Sealed with Gore membrane for water and dust resistance (IP67)

• Mounting: Black powder-coated steel bracket with 0.25-inch drill hole

• Electronics: Integrated and epoxy encapsulated for protection

• Hardware: Stainless 316 for corrosion resistance

• Operating Temperature Range: -40°C to +60°C

• Current Consumption: 0.9 amps at 13.8 volts

• Protections: Reverse polarity protection for safe operation
