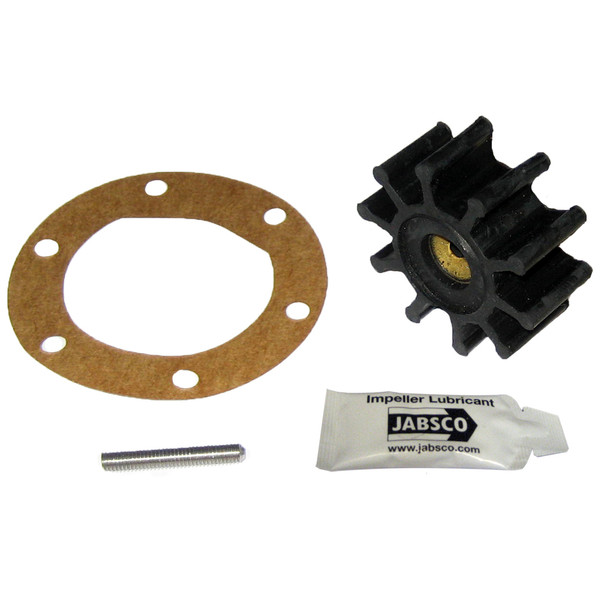

Jabsco 18673-0001-P 10-Blade Neoprene Impeller Kit for Marine and Pump Applications

Impeller Kit - 10 Blade - Neoprene - 2" Diameter x 7/8"W Pin Drive Insert

Material: Neoprene
Insert Material:Brass
Drive Type: Slotted Shaft Pin Drive or Through Hole Pin Drive
Number of Blades: 10
Dimensions:
Diameter:2"
Shaft Width:1/2"
Shaft Diameter:7/8"

Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.
Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.

Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Dont use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.

Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such.

Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco 18673-0001-P impeller kit features a durable 10-blade design made from high-quality neoprene, providing reliable performance in engine cooling, bilge, transfer, and general-purpose pumps. With a 2-inch diameter and a 7/8-inch shaft diameter, this impeller is compatible with most bronze flexible impeller pumps and is designed for easy installation and maintenance. Its brass insert and slotted shaft pin drive or through-hole pin drive ensure secure attachment and efficient operation, making it suitable for a variety of marine and industrial applications. Jabsco's rigorous quality testing guarantees long-lasting, dependable performance, helping to prevent engine overheating and system failures. Regular replacement of the impeller, ideally once a year or sooner based on usage, is critical to maintaining optimal pump function and avoiding costly repairs. Replacing the impeller is straightforward; simply remove the end cover screws and use a Jabsco Impeller Removal Tool or channel lock pliers to grip the hub, avoiding damage with screwdrivers. It is recommended to grease the new impeller prior to installation, as this eases fitting into the pump bore and provides added protection during initial priming. Always carry spare impellers onboard for emergencies, as the impeller is vital to the cooling system's efficiency. Proper maintenance and timely replacement ensure the longevity of your pump and engine.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Features:

• Material: Neoprene for durability and flexibility

• Insert Material: Brass for secure attachment

• Drive Type: Slotted Shaft Pin Drive or Through Hole Pin Drive for versatile installation

• Number of Blades: 10 for efficient fluid movement

• Dimensions: 2-inch diameter with 7/8-inch shaft diameter for compatibility
