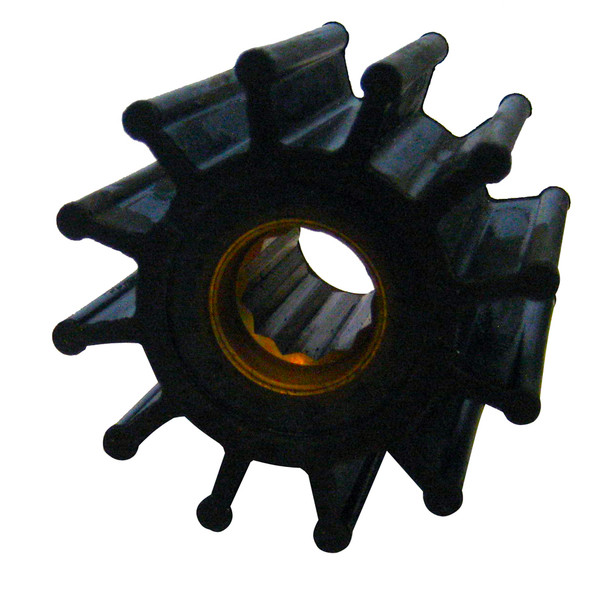

Jabsco Impeller Kit - 12 Blade Neoprene with Spline Drive, 2-1/4 inch Diameter

Impeller Kit

Material:Neoprene
Drive Type:Spline Drive
Number of Blades:12
Dimensions:

•
  Diameter:2-1/4"




•
  Shaft Width:1-1/4"




•
  Shaft Diameter:5/8"
  Insert Material:Brass


  Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.
  Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

  Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.

  Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Dont use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.

  Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such.

  Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.

  WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.




The Jabsco Impeller Kit (Part Number 1210-0001-P) is designed to provide reliable performance for a variety of engine cooling, bilge, transfer, and general-purpose pumps. Crafted from durable neoprene material, this impeller features 12 blades that ensure efficient fluid movement and long-lasting operation. Its spline drive facilitates easy installation and secure attachment to most makes and models of bronze flexible impeller pumps, making it a versatile choice for marine and industrial applications.

Each impeller has a diameter of approximately 2-1/4 inches, with a shaft width of 1-1/4 inches and a shaft diameter of 5/8 inches. The insert is made of brass, which offers excellent corrosion resistance and durability under demanding conditions. The design ensures compatibility with many pump systems, providing a seamless upgrade or replacement to maintain optimal performance. Proper maintenance involves replacing all impellers at least once annually or more frequently depending on engine duty cycles. Regular replacement prevents system failures and extends the lifespan of your pump.

Replacing the impeller is straightforward: remove the end cover screws, then use a Jabsco Impeller Removal Tool or channel lock pliers to grip the hub and extract the impeller. Avoid using screwdrivers, as they may damage the pump face or cause leaks, especially in confined spaces. Always carry spare impellers onboard for emergencies, since the impeller is a critical component of your engine’s cooling system. When installing a new impeller, applying grease facilitates installation and provides added protection during the initial prime phase. Once the gasket and end cover are replaced, the pump is ready for operation, ensuring continued efficiency and performance.

Keep in mind that this product may contain chemicals such as lead, which are recognized by California’s Proposition 65 as potentially harmful. For detailed health and safety information, visit P65Warnings.ca.gov. Proper maintenance and timely replacement of the impeller help prevent system failure and ensure the longevity of your pump system.

Features:

• Material: Neoprene for durability and flexibility

• Drive Type: Spline drive for secure attachment

• Number of Blades: 12 for efficient fluid movement

• Dimensions: 2-1/4 inch diameter, 1-1/4 inch shaft width, 5/8 inch shaft diameter

• Insert Material: Brass for corrosion resistance

• Easy to replace with standard tools and procedures

• Suitable for most bronze flexible impeller pumps

• Designed for reliable, long-lasting performance

• Includes safety warning regarding chemical exposure
