Description

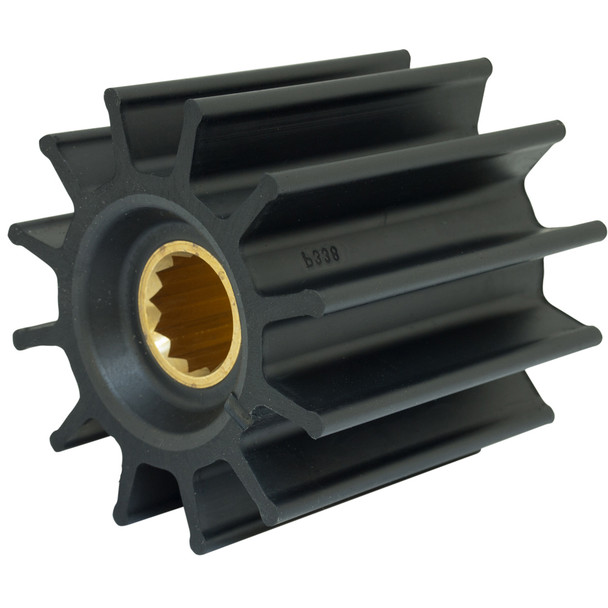

Impeller Kit
Material:Neoprene
Drive Type:Spline Drive
Number of Blades:12
Dimensions:
-
Shaft Width:1"
-
Shaft Diameter:3-9/16"
Diameter:3-3/4"
Insert Material:Brass
Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.
Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.
Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.
Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Dont use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.
Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such.
Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Jabsco Impeller Kit 17936-0001-P is designed for reliable engine cooling and fluid transfer applications. Crafted with durable neoprene, this impeller features 12 blades that provide efficient fluid movement, ensuring your pump operates smoothly and effectively. The spline drive mechanism offers secure attachment to most makes and models of bronze flexible impeller pumps used in marine, industrial, and automotive settings. This kit is essential for maintaining optimal pump performance and preventing overheating or fluid flow issues in your engine or system.
Constructed with brass insert material, the impeller provides added strength and durability to withstand demanding operating conditions. Its dimensions, including a 3-3/4-inch diameter and 1-inch shaft width, make it compatible with a wide range of pump sizes. Proper installation involves greasing the impeller to facilitate insertion into the pump bore and to protect it during initial priming. Regular replacement of impellers, ideally once a year or sooner based on usage, helps prevent breakdowns and prolongs the life of your pump. When replacing, it is recommended to remove the end cover screws and utilize a Jabsco Impeller Removal Tool or channel lock pliers to grip and extract the impeller, avoiding damage to the pump housing.
Always keep spare impellers onboard for emergencies and perform routine maintenance to ensure system reliability. Remember that the impeller is a critical component of your cooling system, and proper handling and replacement are vital for optimal performance. After installation, ensure the gasket and end cover are properly secured before operation. Note that this product contains chemicals including lead, which may pose health risks, so handle with care and consult the P65Warnings website for safety information.
Features:
- Material: Neoprene for durability and flexibility
- Drive Type: Spline drive for secure attachment
- Number of Blades: 12 for efficient fluid movement
- Compatibility: Fits most bronze flexible impeller pumps
- Construction: Brass insert for added strength
