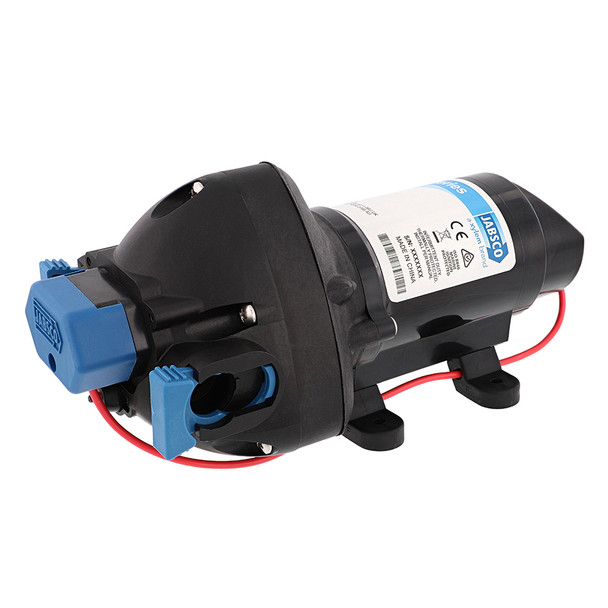

Jabsco Par-Max 2 Water Pressure Pump - 12V, 2 GPM, 35 PSI

Par-Max 2 Water Pressure Pump - 12V - 2 GPM - 35 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 2 water pressure pump is designed for reliable performance in demanding applications such as RVs, boats, and industrial settings. Powered by a 12-volt system, this pump delivers a flow rate of 2 gallons per minute at a pressure of 35 PSI, making it suitable for vessels with multiple outlets or other water distribution needs. Its compact design and efficient operation make it an ideal choice for those requiring a durable and quiet water pump.
Constructed with heavy-duty components, the HD (Heavy Duty) model features a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing, all aimed at extending service life and improving pressure capabilities. The standard models, equipped with corrosion-resistant plastic housing, provide economical performance for applications with less demanding pressure requirements. The pump's co-molded diaphragm technology ensures long-lasting durability, while its integrated sealed pressure switch allows for on-demand operation, reducing energy consumption and wear.
This self-priming pump can operate dry without damage, providing installation flexibility in various environments. Quick connect ports facilitate easy installation, servicing, and maintenance. Vibration dampening mounting feet help reduce noise and vibration during operation. An integrated bypass module minimizes cycling and delivers smoother flow, enhancing overall performance. The pump's construction includes a glass fiber reinforced polypropylene pumphead, EPDM check valves, and a co-molded TPV diaphragm, ensuring resistance to harsh conditions. With an ingress protection rating of IPX6 and certifications including CE, ISO8846, and RCM, the Jabsco Par-Max 2 is built to meet industry standards for safety and durability.
Please note that this product may contain chemicals known to cause cancer according to California Proposition 65. For more information, visit P65Warnings.ca.gov.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housing for extended service life

• Efficient and quiet operation for minimal noise disturbance

• Integrated sealed pressure switch for on-demand operation

• Self-priming design allows versatile installation

• Can operate dry without damage, reducing maintenance concerns

• Quick connect ports for ease of installation and servicing

• Vibration dampening mounting feet for stable operation

• Integrated bypass module to reduce cycling and ensure smooth flow
