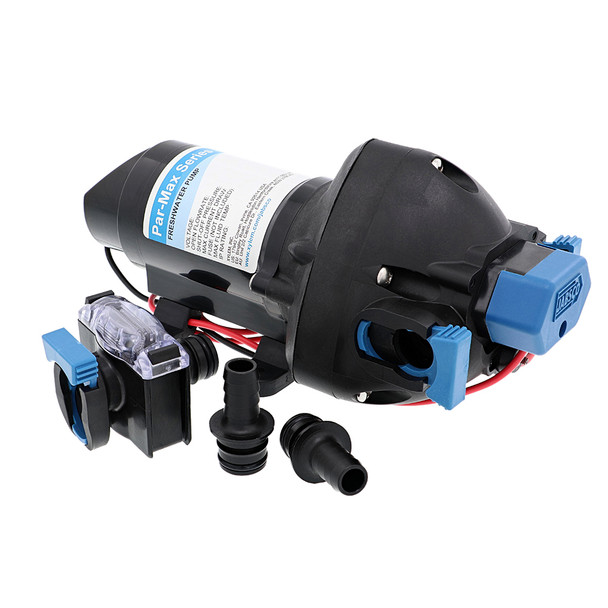

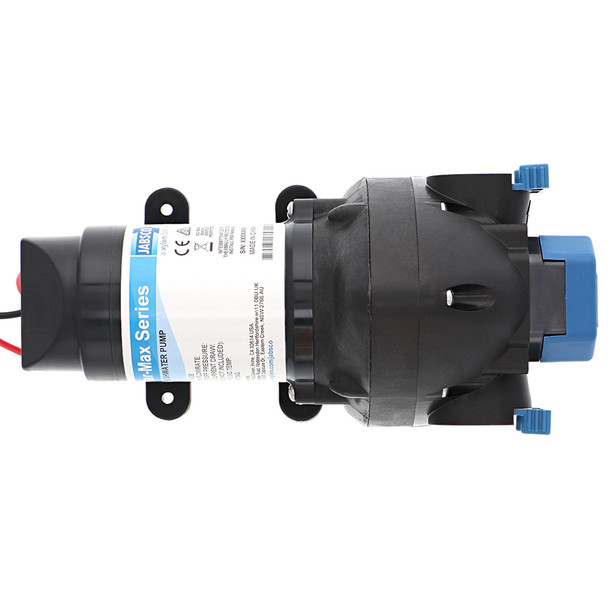

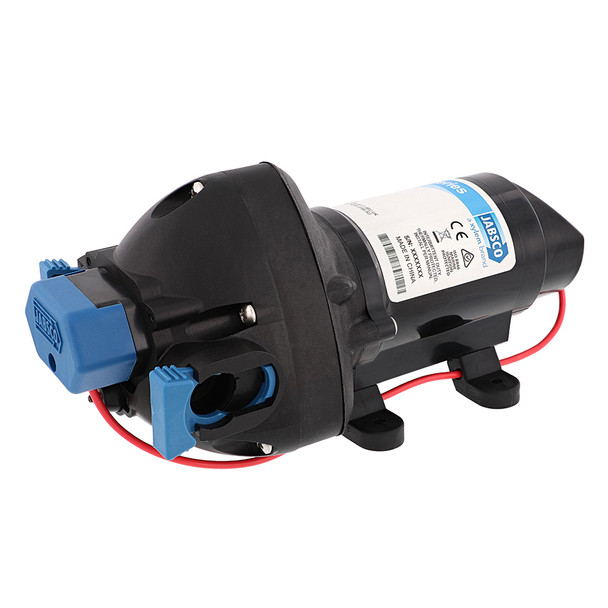

Jabsco Par-Max 2 Water Pressure Pump - 24V, 2 GPM, 35 PSI

Par-Max 2 Water Pressure Pump - 24V - 2 GPM - 35 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 2 Water Pressure Pump is engineered for reliable performance in demanding applications. Designed with a heavy-duty motor featuring a wider diameter and a durable powder-coated shell, this pump offers enhanced pressure capability and longevity. Its cast aluminum endbells and lower housing contribute to robust operation, making it suitable for various marine or RV water systems. The pump's efficient operation ensures quiet performance while delivering consistent water flow, ideal for vessels with multiple outlets or mobile applications. The integrated sealed pressure switch activates the pump on demand, conserving energy and reducing wear. Its self-priming feature allows for flexible installation, even in challenging positions, and the ability to run dry without damage adds to its versatility. Quick connect ports simplify installation and maintenance, while vibration dampening mounting feet reduce noise and vibrations during operation. An integrated bypass module smooths flow and minimizes cycling, contributing to overall system stability. Constructed with a glass fiber reinforced polypropylene pump head and co-molded TPV diaphragm, the Par-Max 2 is built for durability and resistance to harsh conditions. Certified to CE, ISO8846, and RCM standards, and rated IPX6 for ingress protection, this pump meets high safety and quality standards. Its compact design makes it suitable for limited spaces, providing a dependable water supply solution for marine, RV, or mobile applications. The Jabsco Par-Max 2 is a versatile, efficient, and durable choice for those seeking a reliable water pressure pump with easy installation and low maintenance requirements. Please note, this product contains chemicals that may cause cancer, as detailed in the P65 warning, and should be handled with care.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housing for increased pressure and longevity

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand activation

• Self-priming design allows flexible installation options

• Can operate dry without damage, enhancing versatility

• Quick connect ports facilitate easy installation and servicing

• Vibration dampening mounting feet reduce noise and vibration

• Built-in bypass module provides smooth flow and reduces cycling
