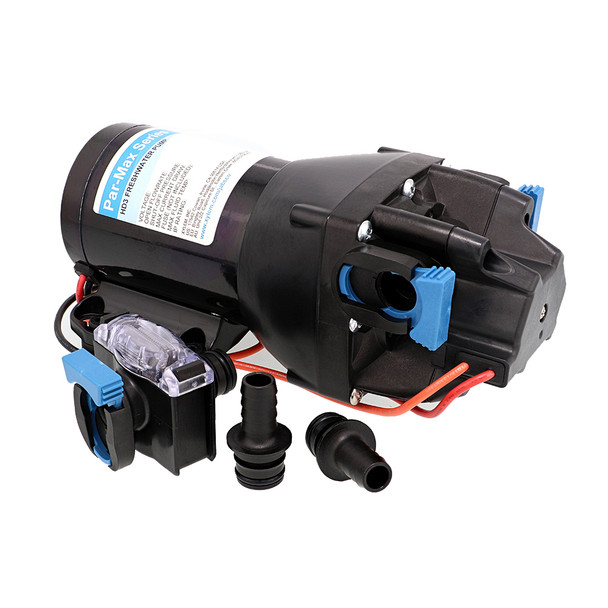

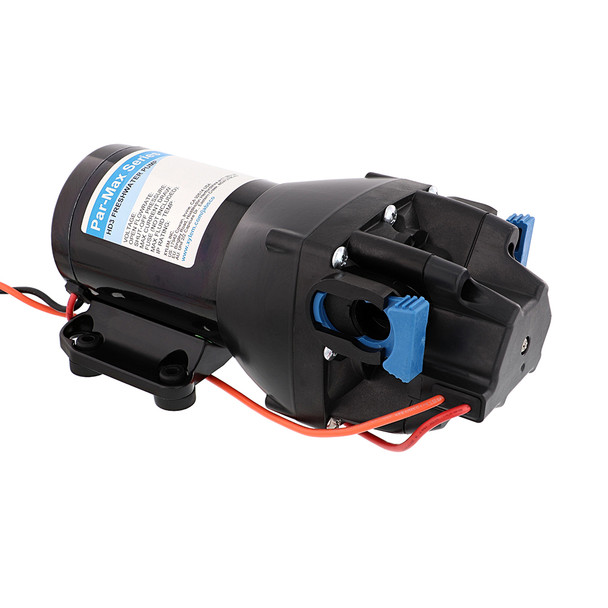

Jabsco Par-Max HD3 12V Heavy Duty Water Pressure Pump - 3 GPM at 60 PSI

Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump is engineered for reliable performance in demanding applications. Featuring a robust 12-volt motor with a wider diameter and a powder-coated shell, this pump is built to withstand high pressure and continuous use. The cast aluminum endbells and lower housing enhance durability and extend service life, making it suitable for marine, RV, and industrial environments. Designed to deliver up to 3 gallons per minute at 60 PSI, the HD3 model provides efficient water circulation with minimal noise and vibration.
Constructed with co-molded diaphragm technology using durable TPV material, the pump ensures long-term operational integrity. Its integrated, sealed pressure switch enables on-demand operation, conserving energy and reducing wear. The self-priming feature allows flexible installation options, even in systems with elevation changes, and the pump can operate dry without damage, adding to its versatility. Quick connect ports facilitate easy installation, maintenance, and servicing, while vibration dampening mounting feet help minimize noise and movement during operation.
The pump features a glass fiber reinforced polypropylene pumphead upper housing and check valves made from EPDM, ensuring chemical resistance and reliability. Its maximum inlet pressure is 30 PSI, and it can accommodate fluid temperatures ranging from 32°F to 140°F. Certified by CE, ISO8846, and RCM, and rated IPX6 for ingress protection, the Jabsco Par-Max HD3 is a durable and efficient choice for demanding water delivery tasks. This model is designed to provide consistent, trouble-free operation in various environments, making it an excellent addition to any water system requiring high pressure and flow capacity.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housing for extended lifespan under high pressure

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand water delivery

• Self-priming design allows flexible installation options

• Can operate dry without damage, increasing versatility

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet reduce operational noise and movement

• Integrated bypass module to reduce cycling and ensure smooth flow
