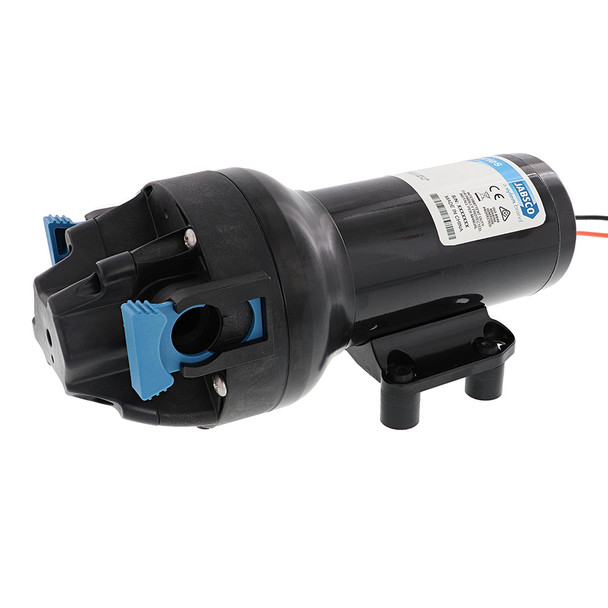

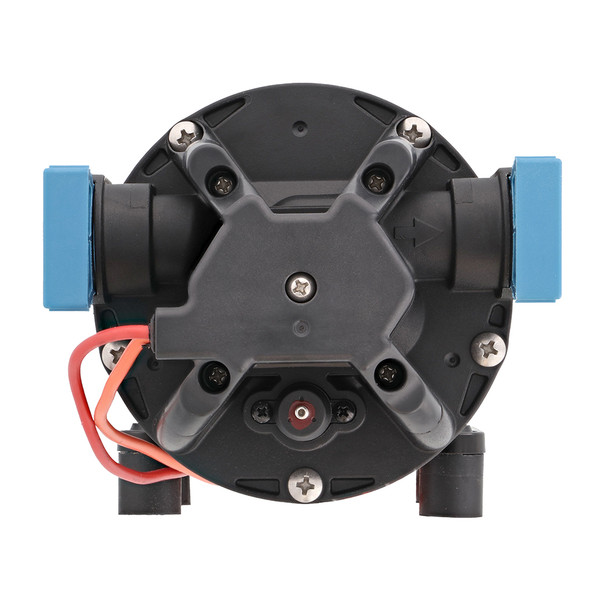

Jabsco Par-Max HD6 Heavy Duty 24V Water Pressure Pump – 6 GPM, 40 PSI

Par-Max HD6 Heavy Duty Water Pressure Pump - 24V - 6 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump offers reliable performance for demanding applications with a 24V power supply and a flow rate of 6 gallons per minute. Designed with a wider diameter motor featuring a powder-coated shell, cast aluminum endbells, and a durable lower housing, this pump is built for longevity and high-pressure operation. It delivers consistent water pressure up to 40 PSI, making it ideal for demanding marine, RV, or industrial water systems. Its robust construction ensures long service life even under continuous use, providing dependable water flow where it matters most.
Equipped with co-molded diaphragm technology, the HD6 model ensures durability and resistance to wear, while the integrated sealed pressure switch allows for on-demand operation, reducing unnecessary cycling and conserving energy. Its self-priming capability of up to 7 feet allows flexible installation options, and it can run dry without damage, adding to its versatility. The quick-connect ports simplify installation, servicing, and maintenance, making it a user-friendly choice for professional or DIY setups. Additionally, vibration dampening mounting feet help minimize noise and vibration during operation, contributing to a quieter environment.
The pump features a glass fiber reinforced polypropylene pumphead housing and a co-molded TPV diaphragm, ensuring resistance to corrosion and chemicals. Check valves made from EPDM material further enhance reliability, while the pump's design supports inlet pressures up to 30 PSI and fluid temperatures ranging from 32°F to 140°F. Certified by CE, ISO8846, and RCM standards, and rated IPX6 for ingress protection, the Jabsco Par-Max HD6 is suited for harsh environments, providing peace of mind and dependable performance in various water management applications.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy duty motor with cast aluminum lower housing for high-pressure resilience

• Efficient and quiet operation for minimal noise disturbance

• Integrated sealed pressure switch for on-demand water flow

• Self-priming design allows versatile installation options

• Can operate dry without damage, increasing reliability

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet reduce noise and vibration

• Built-in bypass module to minimize cycling and ensure smooth flow
