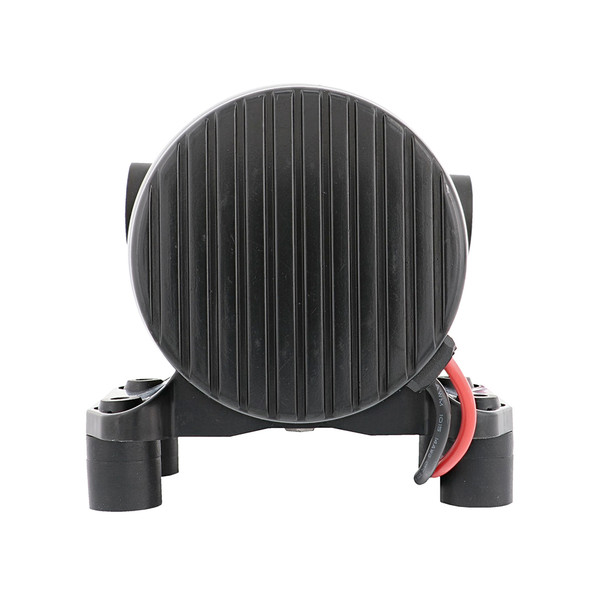

Jabsco Par-Max HD6 Heavy Duty 24V Water Pressure Pump - 6 GPM, 60 PSI

Par-Max HD6 Heavy Duty Water Pressure Pump - 24V - 6 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump is designed for demanding applications requiring reliable performance and durability. Built with a wider diameter motor featuring a powder-coated shell, cast aluminum endbells, and a robust lower housing, this pump offers enhanced pressure capacity and extended service life. It delivers up to 6 gallons per minute at 60 PSI, making it suitable for various marine, RV, or industrial water systems where high flow and pressure are essential. The HD model includes heavy-duty components that withstand high-pressure conditions while maintaining efficient operation.
The pump incorporates co-molded diaphragm technology with a durable TPV diaphragm and EPDM check valves, ensuring long-lasting performance even under continuous use. Its sealed, integrated pressure switch allows for on-demand activation, contributing to energy efficiency and reduced wear. The self-priming feature enables flexible installation options, and the pump can run dry without damage, adding to its versatility. Vibration dampening mounting feet help reduce noise and vibration, promoting quieter operation in confined spaces.
Constructed with a glass fiber reinforced polypropylene pump head and corrosion-resistant plastic housing, the Jabsco Par-Max HD6 is suitable for a range of fluid temperatures from 32°F to 140°F (0°C to 60°C). It features quick connect ports for straightforward installation, maintenance, and servicing. Certifications such as CE, ISO8846, and RCM ensure compliance with international safety and quality standards. With an ingress protection rating of IPX6, this pump is resistant to water ingress, making it ideal for outdoor or marine environments. Designed for heavy-duty use, the Jabsco Par-Max HD6 offers consistent, efficient water pressure in demanding applications, backed by reliable engineering and high-quality materials.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motors and cast aluminum lower housings for high-pressure performance

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand activation

• Self-priming design allows versatile installation

• Can run dry without damage for added reliability

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet reduce noise and vibration

• Integrated bypass module to reduce cycling and ensure smooth flow
