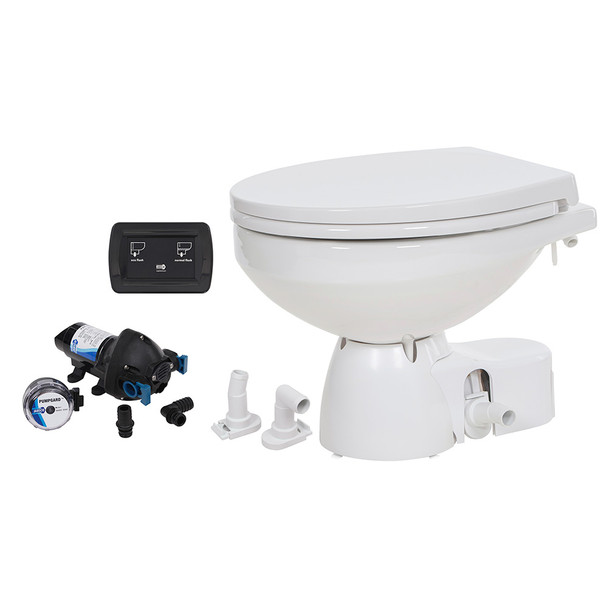

Quiet Flush E2 Raw Water Toilet Regular Bowl - 24V - Soft Close Lid
From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.
Easy 2 Install
The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.
Easy 2 Service
Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.
Easy 2 Operate
Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, you can choose three settings including a water-saving, eco-flush cycle.
Installation:
- Base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
- Discharge pump can be rotated 180 to suit the base orientation and ensure pipework is routed to the rear of the toilet
- Straight or 90 discharge port for easy install
Quick Release for Easy Servicing:
- Quick release system allows for fast and easy removal of discharge pump and hose when servicing is necessary
- C-Clip design releases the pump assembly from the toilet base without the need for tools, resulting in fast service time
Multi-Function Touch Panel:
- Stylish low-profile design
- Touch-sensitive operation
- Eco flush, full flush, or empty functions
- Only 1-litre (1-quart) per flush using eco mode
- Designed for wet room installations
- No spill empty feature to leave bowl dry when boat is in motion
Specifications:
- Bowl Size: Regular
- Seat Lid: Composite
- Slow-Close Lid: Yes
- Water: Sea, river, and lake water
- Device: Rinse pump
- Flush Control Switch: Touch Panel
- Voltage DC: 24
- Recommended Fuse Size: 15 amp
Dimensions:
- Height: 14.4 in. (365 mm)
- Width: 14.8 in. (375 mm)
- Depth: 18.9 in. (480 mm)
- Weight: 38.6 lbs (17.5 kg)
The Jabsco Quiet Flush E2 marine toilet is an award-winning solution designed for a variety of watercraft, including charter boats and racing yachts. Featuring a sleek touch sensor control panel and a compact design, this toilet offers a combination of ease of installation, serviceability, and user-friendly operation that enhances onboard comfort and convenience. Its innovative design addresses common marine waste challenges by providing reliable performance in a space-efficient package suitable for both recreational and commercial vessels.
Installation is straightforward with a customizable base that can be rotated to accommodate different space constraints. The discharge pump can be positioned to suit your boat's layout, with options for straight or 90-degree discharge ports, ensuring flexible pipe routing. The quick-release system allows for effortless access to the macerator pump and discharge hose, enabling fast servicing without the need for tools, which minimizes downtime and maintenance effort. The pump assembly is easily removed via a C-clip design, making routine maintenance simple and efficient.
The multi-function touch panel adds modern control and convenience, featuring a low-profile, stylish design with touch-sensitive operation. Users can select from eco-flush, full-flush, or empty modes, with the eco-flush using as little as 1 quart of water per cycle, promoting water conservation. The toilet's features include a slow-close seat lid for safety, a spill-free empty function to keep the bowl dry during transit, and compatibility with sea, river, and lake water. Its robust construction ensures durability for demanding marine environments while providing the comfort and sanitation of a home bathroom. The unit measures approximately 14.4 inches high by 14.8 inches wide and 18.9 inches deep, with a weight of about 38.6 pounds, making it suitable for installation in various boat layouts.
Features:
- Rotatable base for flexible installation in tight spaces
- Discharge pump with 180-degree rotation for optimal pipe routing
- Quick-release system for fast pump and hose removal without tools
- Stylish touch sensor control panel with eco, full, and empty flush modes
- Eco-flush cycle uses only 1 quart of water per flush for water conservation
- Slow-close composite lid for safety and convenience
- Spill-free empty feature ensures the bowl remains dry during transit
- Compatible with sea, river, and lake water for versatile use
- Designed for wet room installations with a sleek, low-profile design
