Description

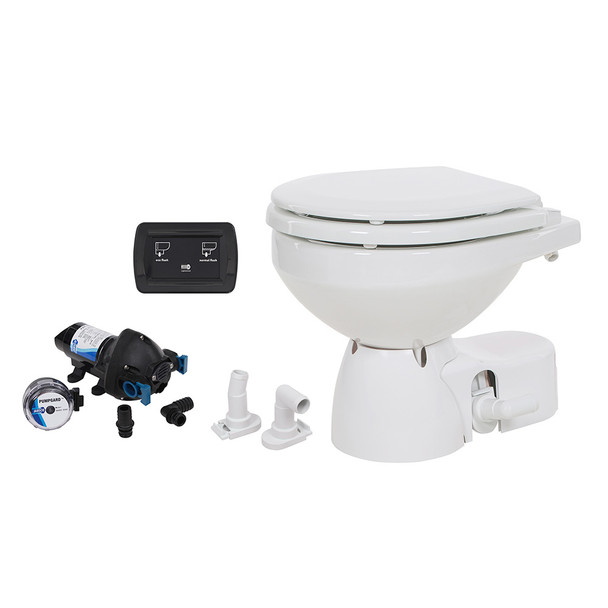

Quiet Flush E2 Raw Water Toilet Compact Bowl - 12V - Soft Close Lid
From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.
Easy to Install
The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.
Easy to Service
Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.
Easy to Operate
Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, users can choose three settings, including a water-saving, eco-friendly cycle.
Installation:
- The base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
- The discharge pump can be rotated 180 degrees to suit the base orientation and ensure pipework is routed to the rear of the toilet
- Straight or 90-degree discharge port for easy install
Quick Release for Easy Servicing:
- Quick release system allows for fast and easy removal of discharge pumps and hoses when servicing is necessary
- C-Clip design releases pump assembly from the toilet base without the need for tools, resulting in fast service time
Multi-Function Touch Panel:
- Stylish, low-profile design
- Touch-sensitive operation
- Eco flush, full flush, or empty functions
- Only 1-liter (1-quart) per flush using eco mode
- Designed for wet room installations
- No spill empty feature to leave bowl dry when the boat is in motion
Specifications:
- Bowl Size: Compact
- Seat Lid: Wood
- Slow Close Lid: No
- Water: Sea, river, and lake water
- Device: Rinse pump
- Flush Control Switch: Touch panel
- Voltage DC: 12
- Recommended Fuse Size (AMP): 25
- Size (H x W x D): 14 x 13.9 x 16.3 inches (355 x 352 x 415 mm)
- Weight: 34.2 lbs. (15.5 kg)
The Jabsco Quiet Flush E2 Marine Toilet with soft close lid offers a reliable and hygienic solution for boats ranging from charter vessels to racing yachts. Designed for ease of installation and maintenance, this compact freshwater toilet operates efficiently on 12V DC power, making it ideal for various marine environments. Its sleek touch sensor control panel provides users with multiple flushing options, including an eco-friendly cycle that uses only 1 quart of water per flush, promoting water conservation onboard.
The Easy to Install feature allows for flexible orientation; the base can be rotated to accommodate tight spaces, and the discharge pump can be rotated 180 degrees to align with the piping layout. The quick-release system simplifies servicing by enabling quick removal of the discharge pump and hoses without tools, significantly reducing downtime. Built to withstand both recreational and commercial use, the toilet's durable construction ensures long-lasting performance even under demanding conditions.
The multi-function touch panel enhances user control with a stylish, low-profile design that is easy to operate. Users can select between eco flush, full flush, or empty functions, with the bowl remaining dry during motion thanks to the no spill empty feature. The bowl features a compact size with a wood seat lid, providing both comfort and practicality. Its wet room installation capability makes it versatile for various marine layouts, while the optional rotation of the discharge port and base allows for customized setup options.
Overall, the Jabsco Quiet Flush E2 marine toilet combines advanced features, easy installation, and low maintenance for a seamless onboard experience. Its compact design, eco-friendly operation, and user-friendly controls make it an excellent choice for boat owners seeking reliable waste management solutions that align with marine standards and provide comfort at sea.
Features:
- Rotatable base for flexible installation in tight spaces
- 180-degree adjustable discharge pump for optimal piping layout
- Quick release system for fast servicing without tools
- Touch-sensitive multi-function control panel with eco, full, and empty flush modes
- Eco flush uses only 1 quart of water per cycle for water conservation
- No spill empty feature ensures the bowl stays dry during transit
- Compact size with wood seat lid for space-saving and comfort
- Designed for wet room installations with versatile discharge options
- Durable construction suitable for both recreational and commercial use
