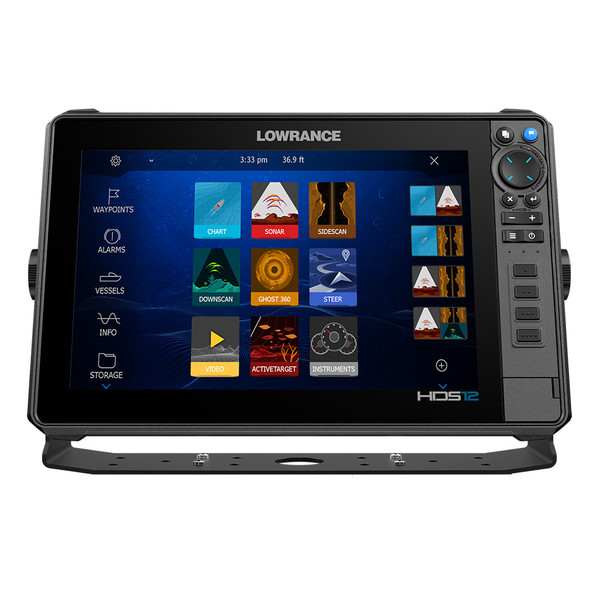

Lowrance HDS PRO 12 Fishfinder and Chartplotter with Preloaded C-MAP DISCOVER OnBoard

HDS PRO 12 - with Preloaded C-MAP DISCOVER OnBoard - No Transducer

See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging HD. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

In the box:

• HDS PRO fishfinder/chartplotter (12-inch display screen)


• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes


• SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses


• High-definition Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)


• High-resolution ActiveTarget 2 Live Sonar ready


• FishReveal with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)


• Real-time mapping is available with C-MAP Genesis Live.


• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views


• Large programmable keys


• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot


• NMEA 2000, wireless and bluetooth, connectivity plus smartphone notifications

Display:

• Backlight Color: Pure white LED


• Display Resolution: 1280 x 800


• Viewing Angles: 80 top/bottom, 80 left/right

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic


• Ethernet Ports: 2 x 100 Mbit, 6 max MFDs on a network


• Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module


• NMEA 2000 Connectivity: 1x Micro-C


• SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

• Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on


• Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on


• Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on


• Recommended Fuse Rating: 5A


• Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5F to 131F (-15C to 55C )


• Storage Temperature Range: 4F to 140F (-20C to 60C )

GPS:

• GPS Receiver Channels: 16


• Update rate: 10 Hz

MFD (Multi-Function Display):

• Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)


• Internal Storage: 8.0 GB Internal


• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

*Sidescan Fish Reveal requires S3100 module and a compatible transducer

HDS PRO 12 - with Preloaded C-MAP DISCOVER OnBoard - No Transducer

See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging HD. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

In the box:

• HDS PRO fishfinder/chartplotter (12-inch display screen)



• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes



• SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses



• High-definition Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)



• High-resolution ActiveTarget 2 Live Sonar ready



• FishReveal with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)



• Real-time mapping is available with C-MAP Genesis Live.



• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views



• Large programmable keys



• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot



• NMEA 2000, wireless and bluetooth, connectivity plus smartphone notifications

Display:

• Backlight Color: Pure white LED



• Display Resolution: 1280 x 800



• Viewing Angles: 80 top/bottom, 80 left/right

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic



• Ethernet Ports: 2 x 100 Mbit, 6 max MFDs on a network



• Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module



• NMEA 2000 Connectivity: 1x Micro-C



• SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

• Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on



• Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on



• Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on



• Recommended Fuse Rating: 5A



• Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5F to 131F (-15C to 55C )



• Storage Temperature Range: 4F to 140F (-20C to 60C )

GPS:

• GPS Receiver Channels: 16



• Update rate: 10 Hz

MFD (Multi-Function Display):

• Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)



• Internal Storage: 8.0 GB Internal



• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

*Sidescan Fish Reveal requires S3100 module and a compatible transducer

Experience advanced fishing navigation with the Lowrance HDS PRO 12, featuring a vibrant 12-inch high-resolution display designed for optimal visibility in various lighting conditions. The SolarMAX HD touchscreen provides intuitive control and can be viewed at extreme angles or through polarized lenses, making it ideal for demanding outdoor environments. This device comes preloaded with C-MAP DISCOVER OnBoard charts, offering detailed mapping with 1-foot contours on over 19,000 US lakes and 9,400 Canadian lakes, enabling anglers to quickly identify promising fishing spots and navigate confidently on water.
Equipped with high-definition Active Imaging HD, the HDS PRO 12 delivers clear, detailed views of fish and structures beneath your boat. Support for ActiveTarget 2 Live Sonar allows you to see fish react to your lure in real-time, enhancing your fishing strategy. FishReveal with SideScan and DownScan imaging further improves target identification, providing comprehensive underwater views. The system also supports real-time mapping via C-MAP Genesis Live, allowing anglers to customize and update their charts on the fly.
The device integrates seamlessly with other Lowrance and compatible marine electronics through NMEA 2000, Ethernet, WiFi, and Bluetooth connectivity. Touchscreen controls enable easy management of Power-Pole anchors, Ghost Trolling Motor, autopilot, and outboard systems, while large programmable keys provide quick access to essential features. Support for smartphone notifications keeps you connected without cluttering your screen, ensuring you stay informed during your outing.
Designed for durable outdoor use, the Lowrance HDS PRO 12 functions efficiently within a wide temperature range and features a robust electrical setup with a recommended 5A fuse. Its internal storage of 8GB provides ample space for waypoint, route, and trail data, supporting up to 3,000 waypoints and 100 routes. The device's versatile connectivity options, including dual micro SD card slots, Ethernet ports, and built-in WiFi, facilitate easy data transfer and system expansion. With its comprehensive feature set and user-friendly interface, the Lowrance HDS PRO 12 is an essential tool for serious anglers seeking precise navigation and fish-finding capabilities on their boat.

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with detailed contours for over 19,000 US lakes and 9,400 Canadian lakes

• SolarMAX HD touchscreen display viewable at extreme angles and through polarized lenses

• High-definition Active Imaging HD compatible with Lowrance CHIRP, SideScan, and DownScan Imaging

• Supports ActiveTarget 2 Live Sonar for real-time fish targeting

• FishReveal with SideScan and DownScan imaging for enhanced underwater views

• Real-time mapping with C-MAP Genesis Live for custom chart updates

• Supports ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views

• Large programmable keys for quick access to essential functions

• Touchscreen controls for Power-Pole anchors, Ghost Trolling Motor, autopilot, and Outboard Pilot

• Multiple connectivity options including Bluetooth 4.0, Ethernet, WiFi, and NMEA 2000

• Includes 8GB internal storage with capacity for waypoints, routes, and trails

• Rugged design suitable for a wide range of outdoor water conditions
