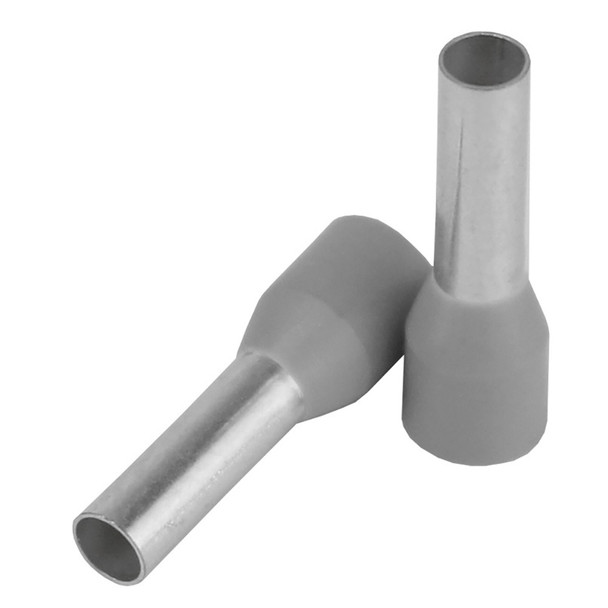

Pacer Grey 12 AWG Wire Ferrules, 10mm Length, 25 Pack

Grey 12 AWG Wire Ferrule - 10mm Length - 25 Pack

Wire fraying can quickly become a problem when dealing with IEC (European)-style terminal blocks. As the wire frays, the connection becomes weaker, and the problem will need to be addressed. But all that can be prevented. How By utilizing wire ferrules. Wire ferrules are a type of terminal that prevents wire fraying. It covers the stranded wire and creates a solid, connected piece. In a sense, wire ferrules make stranded wire behave like solid wire. This is important, especially when working with IEC terminal blocks.

How are wire ferrules properly used The first step is to strip the wire to the correct length. Now slide the ferrule over the exposed wire. Make sure that the nylon casing butts up to the wire insulation. Once set, crimp using the proper tool. Using the proper tool is important, as, without the proper pressure, the wire may not create a solid connection. Proper crimping pressure and technique are key to ensuring continued performance. Once properly crimped, users can add heat shrink for added protection if they choose.

Features:

• Prevent strand separation while minimizing strand breakage


• Insulated ferrules provide additional electrical insulation


• Increase connection reliability when terminating stranded wire in terminal blocks

Specifications:

• Package Size: 25


• Wire Size (AWG): 12


• Insulation Color: Grey


• Ferrule Length: 10mm (0.39 in.)


• Stripping Length: 12mm (0.47 in.)

Wire ferrules are essential components for ensuring reliable electrical connections, especially when working with stranded wires in IEC terminal blocks. The Pacer Grey 12 AWG wire ferrules are designed to prevent strand separation and reduce wire fraying, which can weaken connections over time. These ferrules cover exposed stranded wire, creating a solid, uniform connection that mimics the behavior of solid wire and enhances overall electrical performance. Proper application involves stripping the wire to the specified length, sliding the ferrule over the exposed strands, ensuring the nylon insulation butts up against the wire insulation, and then crimping with a suitable tool. Correct crimping pressure and technique are vital to secure the ferrule properly, ensuring consistent electrical contact and mechanical stability. For added protection and insulation, heat shrink tubing can be applied after crimping, providing extra durability for demanding environments. These ferrules are ideal for terminating stranded wires in terminal blocks, providing increased connection reliability and reducing maintenance needs. Featuring a 10mm length and designed for 12 AWG wire, each pack contains 25 insulated ferrules in a neutral grey color, suitable for various electrical applications. The ferrules are easy to use, durable, and compliant with standard electrical practices, making them a valuable addition to any professional or DIY electrical toolkit. Whether you're wiring control panels, industrial equipment, or home electrical systems, these ferrules help ensure safe, reliable, and long-lasting connections.

Features:

• Prevent strand separation while minimizing strand breakage

• Insulated ferrules provide additional electrical insulation

• Increase connection reliability when terminating stranded wire in terminal blocks
