Description

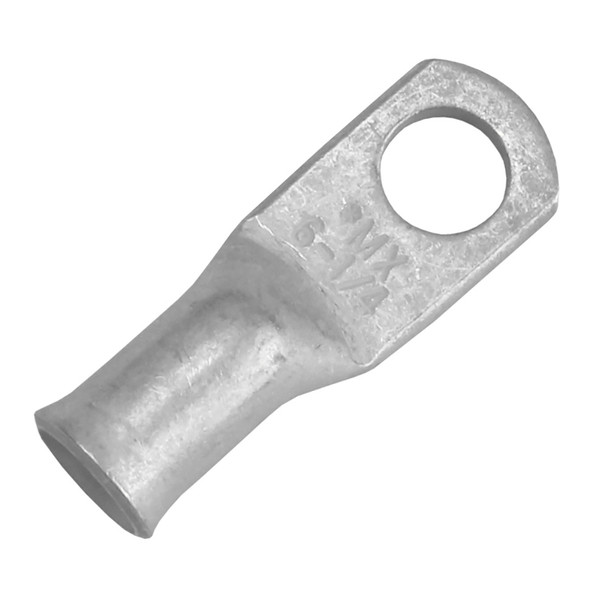

Tinned Lug 6 AWG - 1/4 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 6
- Stud Size: 1/4
- Length: 1.266
- Width: 0.438
- Clearance: 0.344
- Package Size: 10
Ensure reliable and durable electrical connections with the Pacer Tinned Lug 6 AWG, featuring a 1/4-inch stud size, available in a convenient 10-pack. Made from seamless tubes of 99.9% copper, these lugs offer superior conductivity and are ideal for stranded copper wires. The tin-plated finish provides excellent corrosion resistance, making them well-suited for marine environments where waterproof connections are essential. The closed-end design with no exposed seams enhances durability and prevents moisture intrusion, prolonging the lifespan of your electrical system. When combined with epoxy-lined heat shrink tubing, these lugs fully envelop the conductor, offering a sealed connection that withstands harsh conditions and prevents corrosion. Installation is straightforward: strip your wire, slide the lug over the conductor, then crimp or solder for a secure fit. The lug's larger contact pad improves current transfer and mechanical stability, with wire size and stud hole stamped directly on the pad for easy identification. These lugs are rated for 600 volts, meeting or exceeding industry standards such as ASTM-B-152 and SAE conductivity standards, and are UL and CSA approved. Designed for ease of use, they feature a highly controlled flare for smooth cable insertion and a tight transition from barrel to pad, ensuring long-term reliability. Suitable for a variety of electrical tasks, these lugs are an essential component for marine, automotive, and industrial wiring projects where dependable, waterproof connections are required. Their compact size and high-quality construction make them a versatile choice for professionals and DIY enthusiasts alike, providing a robust solution for wire termination needs.
Features:
- Tin plated for corrosion resistance
- No exposed seams for durability
- Rated for 600V electrical systems
- Made from seamless tubes of 99.9% copper for high conductivity
- Designed for stranded copper wires
- Larger pad area ensures better contact
- Cable size and stud hole stamped on the pad for easy identification
- Compatible with crimping or soldering methods
- Highly controlled flare facilitates easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
