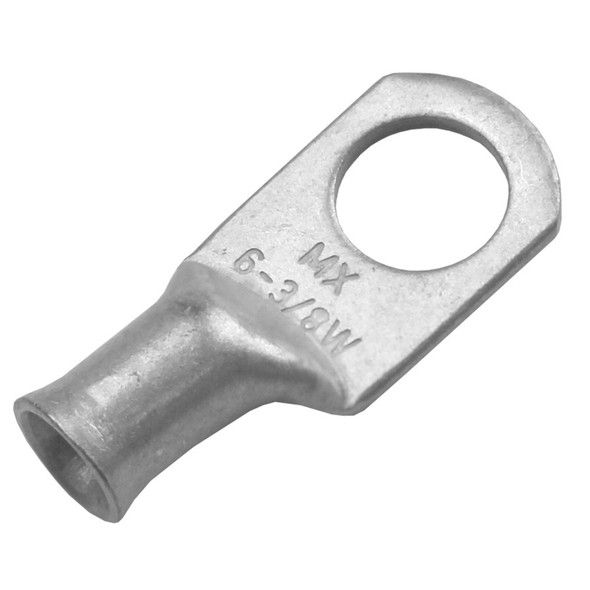

Pacer Tinned Lug 6 AWG with 3/8-Inch Stud Size – 10 Pack for Reliable Marine and Electrical Connections

Tinned Lug 6 AWG - 3/8 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated


• No exposed seams


• Rated for 600V


• Made from seamless tubes of 99.9% copper for higher conductivity


• Designed for stranded copper wires


• Larger pad area for better contact


• Cable size and stud hole stamped on pad


• Can be crimped or soldered


• Highly controlled flare to allow easy cable insertion


• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110


• ASTM-B-152 copper rated at 100% conductivity


• UL CSA Approved


• RoHS Compliant


• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 6


• Stud Size: 3/8


• Length: 1.406


• Width: 0.609


• Clearance: 0.406


• Package Size: 10

The Pacer Tinned Lug 6 AWG (part number TAE6-38R-10) is engineered to provide secure, corrosion-resistant electrical connections for a variety of applications, including marine environments. Constructed from seamless tubes of 99.9% copper, this lug offers high conductivity and long-lasting performance. Its tin-plated finish enhances corrosion resistance, making it an excellent choice for situations where exposure to moisture and harsh elements is a concern. The lug features no exposed seams, ensuring durability and waterproofing capabilities especially when combined with epoxy heat shrink, which fully envelops the conductor for added protection.

Designed for stranded copper wires, this closed-end lug boasts a larger pad area to ensure optimal contact and a tight transition from barrel to pad, which extends the usability of the connection. Its crimping versatility allows for soldering if preferred, and the highly controlled flare simplifies cable insertion. Markings on the pad indicate cable size and stud hole, aiding in accurate installation. Suitable for 600V rated systems, this lug is compliant with industry standards including UL, CSA, RoHS, and exceeds SAE conductivity standards, ensuring safety and high performance.

Measuring approximately 1.41 inches in length and 0.61 inches in width, with a 3/8-inch stud size, this pack of ten lugs is ideal for heavy-duty electrical tasks. Whether used in marine, automotive, or industrial projects, these lugs provide reliable, long-lasting connections that withstand challenging conditions. For optimal results, pair with epoxy-lined heat shrink for waterproof and vibration-resistant connections. If you have questions about selecting the right size or application, consult a Pacer expert for guidance.

Features:

• Tin Plated for corrosion resistance

• No exposed seams for enhanced durability

• Rated for 600V electrical systems

• Made from seamless tubes of 99.9% copper for high conductivity

• Designed for stranded copper wires

• Larger pad area for better contact quality

• Cable size and stud hole stamped on pad for easy identification

• Can be crimped or soldered to suit application needs

• Highly controlled flare for easy cable insertion

• Tight barrel to pad transition for longer usable barrel length
