Veratron Deep-Pipe Level Sender 180mm for Fuel and Water Tanks

Deep-Pipe Level Sender - 180mm - 240 to 33 OHM

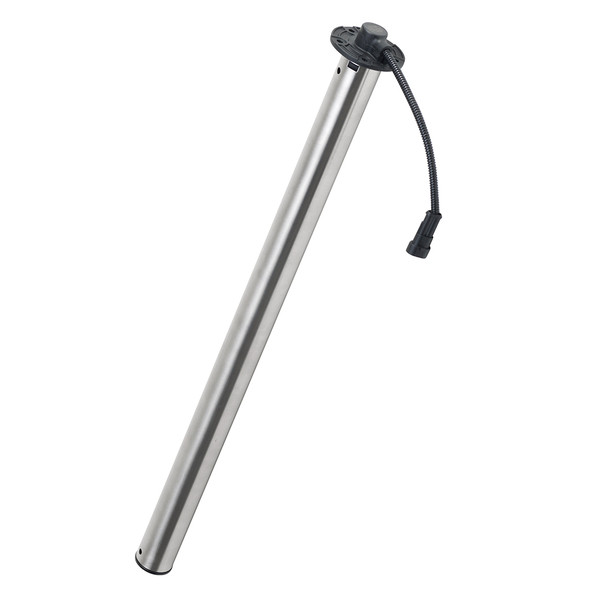

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

• Tubular Sensor Stainless Steel


• Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water


• Length: 180 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67


• Operating Temp.: -25C to 65C or -13F to 149F


• Operating Voltage: 6 to 24 VDC


• Compensation chamber


• Flange: 5-Hole SAE Flange 54mm PA66 GF30


• Wiring harness with length of 200 mm


• Signal ranges: 240 to 33 OHM


• IP67 protection rating


• Communication: Analog

In the Box:

• Deep-Pipe Level Sensor


• Installation Kit


• Safety Instructions


• Installation Instructions

*Sold as an Individual

The Veratron Deep-Pipe Level Sender (Part Number: A2C1746060001) is a reliable and precise sensor designed for fuel tanks and water applications. With a 180mm length, this stainless steel tubular sensor features a float mechanism that accurately measures liquid levels in various tank configurations. Its design incorporates small holes at the top and bottom of the tube acting as a baffle, which minimizes fuel sloshing effects during movement or sea states, ensuring stable readings regardless of the environment.
Constructed from durable stainless steel, the sensor is compatible with a range of liquids including petroleum, diesel, gasoline, and water. It is equipped with a TE Superseal 2-Pole IP67 connector, providing a secure and waterproof connection suitable for harsh conditions. The operating temperature range spans from -25°C to 65°C (-13°F to 149°F), allowing for versatile installation in different climates and operational environments. The sensor operates on a voltage between 6 to 24 VDC and offers an analog signal output with a resistance range from 240 to 33 ohms, enabling integration with various monitoring systems.
The Veratron Deep-Pipe Level Sender features a 5-hole SAE flange made of PA66 GF30, ensuring a robust mounting interface. It includes a wiring harness with a length of 8 inches (200mm) for flexible installation. The device's IP67 protection rating guarantees resistance against dust and water ingress, making it suitable for outdoor and marine use. Each sensor is supplied with an installation kit, safety instructions, and detailed installation guidance to facilitate proper setup and operation.
Designed for use in fuel and water tanks, the sensor length can be selected from various options, starting at 150mm and extending up to 1200mm. When installed, ensure the sensor length is at least 4mm longer than the tank depth for accurate measurement. This product is sold individually and should be installed by qualified personnel. For any concerns or issues, contact the manufacturer directly, as returns to the original purchase point may not be accepted.

Features:

• Tubular sensor made of stainless steel for durability

• Suitable for measuring fuel (oil, petroleum, diesel, gasoline) and water

• 180mm length with stable float mechanism

• Includes a baffle design to reduce fuel sloshing effects

• TE Superseal 2-Pole IP67 connector for waterproof connection

• Operating temperature range: -25°C to 65°C (-13°F to 149°F)

• Voltage range: 6 to 24 VDC

• Analog output with resistance range from 240 to 33 ohms

• 5-hole SAE flange made of PA66 GF30

• Wiring harness length: 8 inches (200mm)

• IP67 rated for dust and water resistance

• Includes installation kit and safety instructions
