Veratron Deep-Pipe Level Sender – 320mm for Fuel Tanks and Water – Part Number A2C1750260001

Deep-Pipe Level Sender - 320mm - 90 to 4 OHM

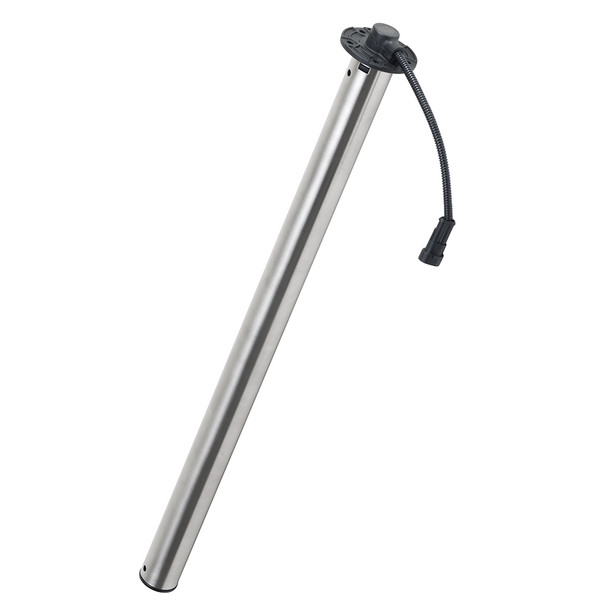

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

• Tubular Sensor Stainless Steel


• Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water


• Length: 320 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67


• Operating Temp.: -25C to 65C or -13F to 149F


• Operating Voltage: 6 to 24 VDC


• Compensation chamber


• Flange: 5-Hole SAE Flange 54mm PA66 GF30


• Wiring harness with length of 200 mm


• Signal ranges: 904 OHM


• IP67 protection rating


• Communication: Analog

In the Box:

• Deep-Pipe Level Sensor


• Installation Kit


• Safety Instructions


• Installation Instructions

*Sold as an Individual

The Veratron Deep-Pipe Level Sender, model A2C1750260001, is a reliable and precise fuel and water level measurement sensor designed for applications requiring accurate liquid level monitoring. Its 320mm length makes it suitable for a variety of tank sizes, ensuring accurate readings across different setups. The sensor features a stainless steel tubular design with a float inside that measures liquid levels, and small holes at the top and bottom of the tube serve as baffles to prevent fuel sloshing, maintaining stable readings even in rough sea conditions or vehicle movements. This construction ensures durability and consistent performance in demanding environments, making it ideal for fuel tanks, water tanks, and other liquid containment systems.

The sensor is equipped with a TE Superseal 2-Pole IP67 connector, providing a secure and waterproof connection suitable for outdoor or harsh environments. Its operating temperature range spans from -25°C to 65°C (-13°F to 149°F), allowing it to function effectively in diverse climates. Powered by a voltage supply between 6 and 24 VDC, the sensor delivers an analog signal with a range of approximately 904 ohms, enabling compatibility with various monitoring systems. The inclusion of a compensation chamber helps maintain accuracy over temperature variations, while the 5-hole SAE flange made of PA66 GF30 ensures a robust mounting interface.

The sensor comes with a wiring harness measuring 8 inches (200 mm) in length, facilitating straightforward installation. Its IP67 protection rating guarantees resistance to dust and water ingress, ensuring long-term performance. The package includes the sensor, installation kit, safety instructions, and installation guidelines to assist in proper setup. Please note that this product is sold individually and may require specific tank clearance—ensure the sensor length is at least 4 mm less than the tank depth once installed. For best results, contact the manufacturer directly with any questions or concerns related to installation or operation.

Features:

• Tubular sensor made of stainless steel for durability

• Suitable for measuring fuel (oil, petroleum, diesel, gasoline) and water

• Length: 320 mm for versatile installation

• TE Superseal 2-Pole IP67 connector for secure waterproof connection

• Operating temperature range from -25°C to 65°C (-13°F to 149°F)

• Operation voltage between 6 and 24 VDC

• Includes a compensation chamber for accurate readings

• Mounting flange: 5-hole SAE flange made of PA66 GF30

• Wiring harness length: 8 inches (200 mm)

• Analog signal output with a range of approximately 904 ohms

• Protection rating: IP67 for dust and water resistance
