Veratron Deep-Pipe Level Sensor - 1150mm, 240 to 33 Ohm for Fuel and Water Tanks

Deep-Pipe Level Sender - 1150mm - 240 to 33 OHM

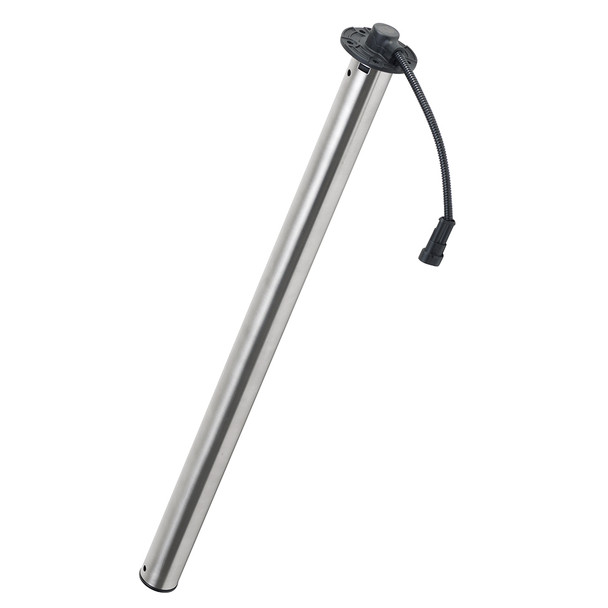

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

• Tubular Sensor Stainless Steel


• Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water


• Length: 1150 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67


• Operating Temp.: -25C to 65C or -13F to 149F


• Operating Voltage: 6 to 24 VDC


• Compensation chamber


• Flange: 5-Hole SAE Flange 54mm PA66 GF30


• Wiring harness with length of 200 mm


• Signal ranges: 240 to 33 OHM


• IP67 protection rating


• Communication: Analog

In the Box:

• Deep-Pipe Level Sensor


• Installation Kit


• Safety Instructions


• Installation Instructions

*Sold as an Individual

The Veratron Deep-Pipe Level Sensor Part Number A2C1747420001 is designed for accurate liquid level measurement in fuel tanks and water reservoirs. Featuring a 1150 mm stainless steel tubular construction, this sensor ensures durability and reliable performance in harsh conditions. Its float mechanism inside the tube provides precise level readings while small holes at the top and bottom act as baffles to minimize fuel sloshing, maintaining stable measurements regardless of sea state or vehicle movement. This robustness makes it suitable for marine, industrial, and automotive applications where consistent liquid level monitoring is crucial.
The sensor’s design includes a flange with a 5-hole SAE pattern and a 54mm PA66 GF30 base, facilitating straightforward installation. The built-in compensation chamber enhances measurement accuracy across temperature variations, with an operating temperature range from -25°C to 65°C (-13°F to 149°F). With a wiring harness of 200 mm and a TE Superseal 2-Pole IP67 connector, the sensor offers ease of connection and protection against dust and water ingress. Its analog signal output, ranging from 240 to 33 Ohms, provides compatibility with various control systems, enabling seamless integration into existing monitoring setups.
Included with the sensor are comprehensive installation and safety instructions, an installation kit, and the sensor itself, making setup efficient and straightforward. Designed for versatility, this level sender can be used with different liquids, including petroleum, diesel, gasoline, and water, ensuring broad applicability across industries. This product is sold as an individual unit, and for optimal performance, it is recommended that the installed length be at least 4 mm above the tank base. Please note that returns are not accepted at the point of purchase; for any issues, direct contact with the manufacturer is advised to ensure proper support and service.

Features:

• Tubular sensor constructed from stainless steel for durability

• Suitable for measuring fuel (oil, petroleum, diesel, gasoline) and water

• 1150 mm length for extended liquid level measurement

• Includes flange with 5-hole SAE pattern and 54mm PA66 GF30 material

• Operates within a temperature range of -25°C to 65°C (-13°F to 149°F)

• Wiring harness with 200 mm length for flexible installation

• TE Superseal 2-Pole IP67 connector for reliable electrical connection

• Analog signal output ranging from 240 to 33 Ohms

• Designed with a compensation chamber for improved accuracy

• Small holes at the top and bottom reduce fuel sloshing effects
