Orion-TR 12/12-9A (110W) Isolated DC-DC Converter

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 8-17 V


• Under Voltage Shut Down: 7 V


• Under Voltage Restart: 7.5 V


• Nominal Output Voltage: 12.2 V


• Output Voltage Adjust Range: 10-15 V


• Output Voltage Tolerance: +/- 0,2 V


• Output Noise: 2 mV rms


• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 9 A


• Maximum Output Current (10 S) at Nominal Output Voltage: 12.5 A


• Short Circuit Output Current: 32 A


• Cont. Output Power at 25 Degrees C: 110 W


• Cont. Output Power at 40 Degrees C: 85 W


• Efficiency: 87 %


• No Load Input Current (2): < 50 mA


• Current Consumption: < 200uA when disabled via its remote port


• Galvanic Isolation: 200 VDC between input, output, and case


• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)


• Humidity: Max. 95 % non-condensing


• DC Connection: Screw terminals


• Maximum Cable Cross-Section: 6 mm AWG10


• Weight: .42 kg (1 lb)


• Dimensions (H x W x D): 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 inch)


• Safety Standards: EN 60950


• Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2


• Automotive Directive Standards: ECE R10-5

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

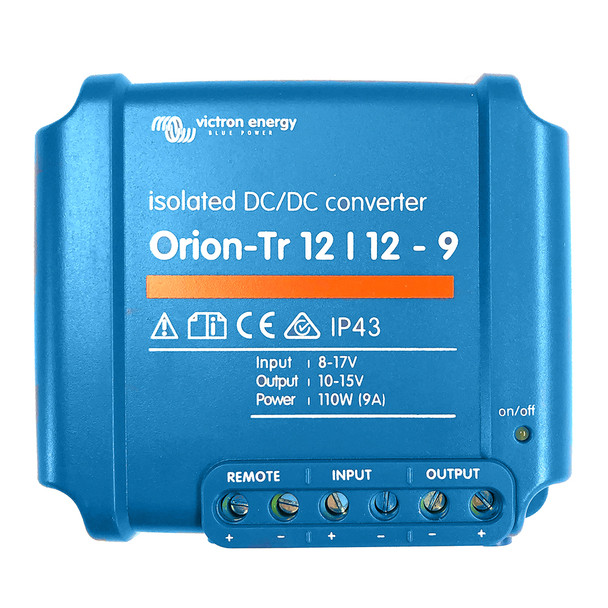

The Victron Energy Orion-TR 12/12-9A (Part Number: ORI121210110R) is a versatile isolated DC-DC converter designed for reliable power conversion in various applications. With a nominal output voltage of 12.2 V and an adjustable range from 10 to 15 V, this unit provides a continuous output current of up to 9 amps at 40°C ambient temperature, making it suitable for demanding electrical setups. Its high efficiency of 87% ensures minimal energy loss during operation, while the galvanic isolation of 200 VDC between input, output, and case enhances safety and system integrity. The converter features screw terminals for easy installation without special tools and includes a remote on/off terminal that allows control via low-power switches or engine run/stop signals, eliminating the need for high-current switches in input wiring. The Orion-TR is short circuit proof and can be paralleled with an unlimited number of units to increase output current, providing scalability for larger systems. It is protected against high temperatures, with output current decreasing at elevated ambient temperatures to prevent damage. The IP43-rated enclosure ensures protection when installed with screw terminals oriented downward. Operating reliably across a temperature range from -20°C to +55°C, with derating above 40°C, it supports environments with up to 95% humidity (non-condensing). The unit comes with screw terminals capable of handling cable cross-sections up to 6 mm AWG10, and it weighs approximately 0.42 kg (1 lb). Certified to EN 60950 and compliant with automotive standards (ECE R10-5), this converter is suitable for automotive, industrial, and marine applications. For detailed installation and safety information, please refer to the provided owner’s manual link. Note that the product may contain chemicals known to cause reproductive harm, as per California's Proposition 65 warning guidelines. For support, repairs, or returns, contact your dealer directly.

Features:

• Remote On/Off Terminal: Enables control with low power switches or engine control signals

• Parallel Compatibility: Unlimited units can be connected to increase output current

• Short Circuit Proof: Ensures safe operation under fault conditions

• High Temperature Protection: Output current reduces at elevated ambient temperatures

• IP43 Enclosure: Provides protection when installed with screw terminals downward

• Screw Terminals: Easy installation without special tools

• Adjustable Output Voltage: Range from 10 to 15 V for flexible applications

• Galvanic Isolation: 200 VDC between input, output, and case for safety

• Wide Operating Temperature Range: -20°C to +55°C with derating above 40°C

• High Efficiency: 87% for minimal energy loss during operation

• Robust Construction: Suitable for automotive, industrial, and marine environments

• Compliance: Meets EN 60950, EN 61000 standards, and automotive ECE R10-5
