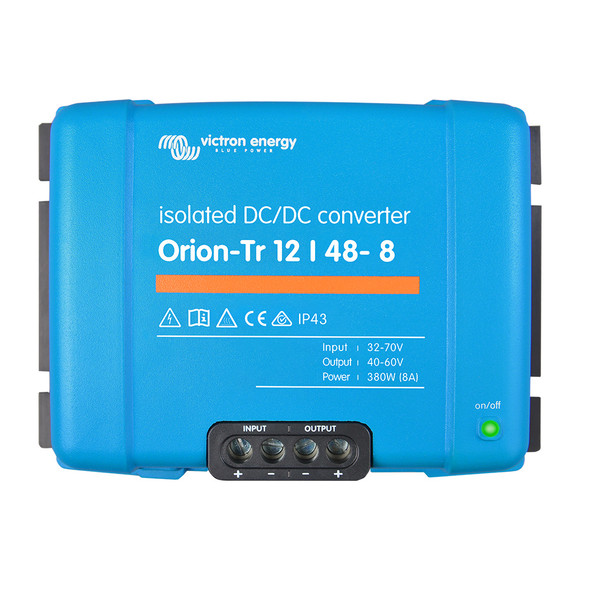

Victron Energy Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger

Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55C with a full rated output up to 40C.

Bluetooth Smart enabled

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.


• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.

Fully programmable

• Battery charge algorithm (configurable) or fixed output.


• Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-stage charge algorithm: bulk absorption float

• For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.


• For lithium batteries absorption time is fixed, default 2 hours.


• Alternatively, a fixed output voltage can be chosen.

Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)

• The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.

Remote on/off

• A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All models are short circuit proof and can be paralleled to increase output current

• An unlimited number of units can be connected in parallel.

High temperature protected

• The output current will reduce at high ambient temperatures.

IP43 protection

• When installed with the screw terminals oriented downward.

Screw terminals

• No special tools are needed for installation.

Input fuse (not replaceable)

The Victron Energy Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger is a professional-grade device designed for dual battery systems in vehicles and boats. Featuring a built-in Bluetooth interface, this charger allows users to monitor and configure settings remotely via a smartphone or tablet, providing convenience and real-time data access. Its adaptive three-stage charge algorithm ensures optimal battery health by adjusting the absorption time based on the depth of discharge, making it suitable for both lead acid and lithium batteries. The charger’s compatibility with 12V and 24V systems and its ability to connect multiple units in parallel makes it highly versatile for higher power requirements.

Features:

• Bluetooth Smart enabled: Monitor and update via smartphone or tablet with the VictronConnect app.

• Fully programmable: Customize battery charge algorithms or select fixed output mode.

• Adaptive 3-stage charge: Bulk, absorption, and float for optimal battery maintenance.

• Engine running detection: Compatible with smart alternators, preventing unwanted discharge when the engine is off.

• Remote on/off control: Connect a remote switch or relay for remote operation.

• Parallel connection: Multiple units can be connected in parallel for increased output capacity.

• High temperature protection: Output current reduces at elevated ambient temperatures to prevent overheating.

• IP43 rated: Suitable for installation with screw terminals oriented downward.

• Durable design: Short circuit proof and built for reliable operation in demanding environments.

• Easy installation: Screw terminals require no special tools for setup.
