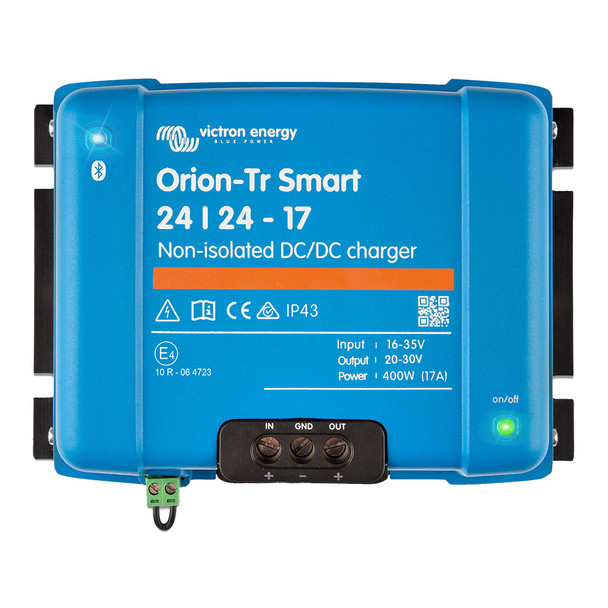

Victron Energy Orion-TR Smart 24/24-17A 400W Non-Isolated DC-DC Converter with Bluetooth

Orion-TR Smart Non-Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP

The Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.

Bluetooth Smart Enabled:

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.


• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.

Fully Programmable:

• Battery charge algorithm (configurable) or fixed output.


• Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-Stage Charge Algorithm: Bulk Absorption Float:

• For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.


• For lithium batteries, the absorption time is fixed (the default is 2 hours).


• Alternatively, a fixed output voltage can be chosen.

Remote On/Off:

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:

An unlimited number of units can be connected in parallel.

High Temperature Protected:

The output current will reduce at high ambient temperatures.

IP43 Protection:

When installed with the screw terminals oriented downward.

Screw Terminals:

No special tools are needed for installation.

Input fuse (not replaceable)

Specifications:

• Input Voltage Range: 20-35 V


• Under Voltage Shut Down: 14 V


• Under Voltage Restart: 15 V


• Nominal Output Voltage: 24.2 V


• Output Voltage Adjust Range: 20-30 V


• Output Voltage Tolerance: +/- 0,2 V


• Output Noise: 2 mV rms


• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A


• Maximum Output Current (10 S) at Nominal Output Voltage: 25 A


• Short Circuit Output Current: 40A


• Cont. Output Power at 25 Degrees C: 480 W


• Cont. Output Power at 40 Degrees C: 400 W


• Efficiency: 89%


• No Load Input Current (2): < 80 mA


• Standby Current: Less than 1 mA


• Galvanic Isolation: 200 VDC between input, output, and case


• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)


• Humidity: Max. 95 % non-condensing


• DC Connection: Screw terminals


• Maximum Cable Cross-Section: 16 mm AWG6


• Weight: 1,6 kg (3.5 lb)


• Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)


• Protection Category: IP43 (electronic components), IP22 (connection area)


• Safety Standards: EN 60950


• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2


• Automotive Directive Standards: ECE R10-5

The Victron Energy Orion-TR Smart 24/24-17A is a professional-grade non-isolated DC-DC converter designed to efficiently convert 24 VDC to 24 VDC with a power output of up to 400W and a continuous current of 17 amps. Featuring built-in Bluetooth connectivity, this versatile power supply allows users to monitor and configure settings remotely via smartphones, tablets, or other Bluetooth-enabled devices, providing real-time data, warnings, and firmware updates through the VictronConnect app. Its advanced adaptive 3-stage charging algorithm ensures optimal battery management for lead-acid and lithium batteries, automatically adjusting absorption times based on discharge depth to prevent overcharging and ensure thorough recharging.
A key feature of the Orion-TR is its programmability, allowing users to select between a configurable battery charge algorithm or a fixed output voltage. It also offers compatibility with smart alternators, detecting engine running conditions to optimize charging processes. The unit supports remote on/off control via auxiliary switches or relay contacts, providing flexibility in system integration. Additionally, the converter is short circuit proof, can be paralleled to scale output current, and is protected against high temperatures by reducing output current accordingly. Its IP43 protection rating ensures durability when installed with screw terminals oriented downward, and the device's robust screw terminal connections facilitate straightforward installation without special tools.
Designed with safety and reliability in mind, the Orion-TR features galvanic isolation of 200 VDC between input, output, and case, meeting safety standards EN 60950 and immunity standards EN 61000-6-2, EN 61000-6-1. Its compact dimensions and lightweight construction make it suitable for various applications, including automotive, marine, and off-grid systems. Operating efficiently within a temperature range of -20°C to +55°C, the converter maintains high performance even in demanding environments. For detailed installation instructions and safety information, please consult the official manual available online. This product is ideal for users seeking a durable, programmable, and remotely manageable power conversion solution for critical 24 VDC systems.

Features:

• Bluetooth Smart Enabled: Monitor and configure via smartphone or tablet using the VictronConnect app

• Fully Programmable: Customizable charge algorithms or fixed output voltage for flexible system integration

• Adaptive 3-Stage Charge Algorithm: Ensures optimal charging for lead-acid and lithium batteries

• Remote On/Off Control: Connects to switches or relay contacts for remote power management

• Parallel Capability: Unlimited units can be paralleled to increase output current

• Short Circuit Proof: Designed for durability and safety in various applications

• High Temperature Protection: Output current reduces at elevated temperatures to prevent damage

• IP43 Protection Rating: Suitable for installation with downward-oriented screw terminals

• Galvanic Isolation: 200 VDC separation between input, output, and case for safety

• Compact and Lightweight: Easy to install in a variety of environments

• Robust Screw Terminals: No special tools required for installation

• Standards Compliant: Meets EN 60950, EN 61000-6-2, EN 61000-6-1, EN 55014-2, and ECE R10-5
