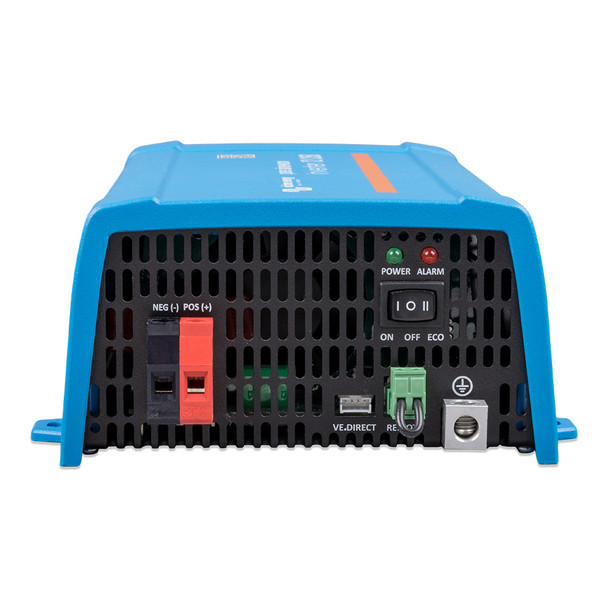

Victron Energy Phoenix Inverter 12/250 - 120V with VE.Direct GFCI Duplex Outlet - 200W

Phoenix Inverter 12/250 - 120V - VE.Direct GFCI Duplex Outlet - 200W

Inverters allow users to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

*This inverter has a GFCI Duplex Outlet.

E.Direct Communication Port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)


• Apple and Android smartphones, tablets, MacBook, and other devices


• (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels


• Low battery voltage cut-off and restart levels


• Dynamic cut-off: load-dependent cut-off level


• Output voltage 210 - 245V


• Frequency 50 Hz or 60 Hz


• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

Please see the manual for a description.

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For Victrons low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 250VA


• Cont. Power at 25 degrees C / 40 degrees C: 200 / 175W


• Peak Power: 400W


• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%


• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V


• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V


• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff


• DC Low Restart Alarm (adjustable): 10,9 / 21,8 / 43,6V


• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V


• Max. Efficiency: 87 / 88 / 88%


• Zero-Load Power: 4,2 / 5,2 / 7,9W


• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W


• ECO Mode Stop Start Power Setting: Adjustable


• Protection (2): a - f


• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)


• Battery-Connection: Screw terminals


• Maximum Cable Cross-Section: 10mm / AWG8


• Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI


• Protection Category: IP 21


• Weight: 2,4kg / 5,3lbs


• Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2

Accessories:

• Remote On-off: Yes


• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)


• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3


• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

The Victron Energy Phoenix Inverter 12/250 (Part Number: PIN122510510) provides reliable power conversion for off-grid and backup systems, allowing you to run household appliances requiring 120V AC from 12V DC batteries. Designed with a proven full bridge and toroidal transformer topology, this inverter ensures durability and consistent performance even under demanding conditions. Its short-circuit proof construction and overheating protections make it suitable for continuous operation in various environments. With a maximum continuous power of 200W and a peak power of 400W, it can handle loads such as LED and halogen lamps, small power tools, and other electronic devices, making it an ideal choice for portable and stationary power applications. The inverter supports adjustable output voltage and frequency, giving you flexibility for different regional standards and equipment requirements. It features a GFCI duplex outlet, providing safety for sensitive electronics and appliances connected to the system. The built-in VE.Direct communication port allows seamless integration with computers, smartphones, and tablets (requires appropriate interface or dongle), enabling real-time monitoring and configuration of alarm thresholds, load management, and ECO mode settings. The ECO mode reduces power consumption by switching the inverter to standby when the load drops below 15W, with adjustable restart intervals. Additional features include remote on/off capability, LED diagnostics for quick troubleshooting, and an automatic transfer switch option (Filax) for seamless switchover between power sources, minimizing downtime. Its robust steel chassis with plastic cover ensures durability, while screw terminals facilitate secure battery connections. Suitable for a wide operating temperature range from -40°C to +65°C, this inverter is engineered for reliable long-term use in various climates and conditions. Whether for recreational vehicles, backup power for essential electronics, or off-grid solar systems, the Victron Energy Phoenix 12/250 inverter offers a versatile, high-quality solution backed by industry standards and safety certifications.

Features:

• Power Output: 200W continuous power with 400W peak power for demanding loads

• GFCI Duplex Outlet: Ensures safety for household appliances and electronics

• VE.Direct Port: Facilitates monitoring and configuration via computer or mobile devices (requires interface or dongle)

• Fully Configurable: Includes adjustable low battery alarm, cut-off, restart levels, and load-dependent cut-off

• Output Voltage and Frequency: Adjustable between 210-245V and 50Hz or 60Hz for regional compatibility

• High Efficiency: Up to 88% for optimized energy use

• Protection Features: Short-circuit proof, overheating protection, and various safety protections as per industry standards

• ECO Mode: Reduces power consumption during low load conditions, with adjustable start/stop power

• Remote On/Off: Connects to remote switch for convenient operation

• Automatic Transfer Switch Compatibility: Supports seamless transfer between AC sources with Filax switch

• Durable Enclosure: Steel chassis with IP21 protection rated for indoor environments

• Temperature Range: Operates reliably from -40°C to +65°C

• Input Voltage Range: 9.2V to 17V at low end, up to 62V for high input voltages

• Certifications: Complies with safety and EMC standards including EN-IEC 60335-1, UL 458, and IEC 61000 series
