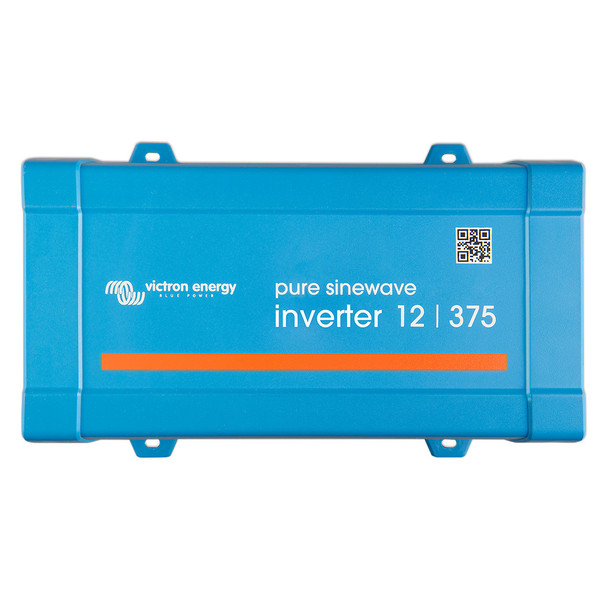

Victron Energy Phoenix Inverter 12/375 - 120V with VE.Direct GFCI Duplex Outlet - 300W

Phoenix Inverter 12/375 - 120V - VE.Direct GFCI Duplex Outlet - 300W

Inverters allow users to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

*This inverter has a GFCI Duplex Outlet.

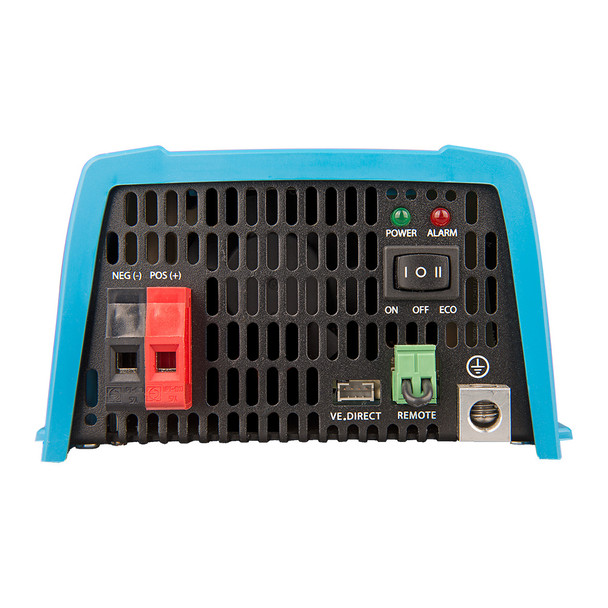

E.Direct Communication Port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)


• Apple and Android smartphones, tablets, MacBook, and other devices


• (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels


• Low battery voltage cut-off and restart levels


• Dynamic cut-off: load-dependent cut-off level


• Output voltage 210 - 245V


• Frequency 50 Hz or 60 Hz


• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

Please see the manual for a description.

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For Victrons low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 375VA


• Cont. Power at 25 degrees C / 40 degrees C: 300 / 260W


• Peak Power: 700W


• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%


• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V


• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V


• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff


• DC Low Restart Alarm (adjustable): 10,9 / 21,8 / 43,6V


• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V


• Max. Efficiency: 89 / 89 / 90%


• Zero-Load Power: 5,6 / 6,1 / 8,5W


• Default Zero-Load Power in ECO Mode (default retry interval: 0,9 / 1,4 / 2,6W


• ECO Mode Stop Start Power Setting: Adjustable


• Protection (2): a - f


• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)


• Battery-Connection: Screw terminals


• Maximum Cable Cross-Section: 10mm / AWG8


• Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI


• Protection Category: IP 21


• Weight: 3,0kg / 6,6lbs


• Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2

Accessories:

• Remote On-off: Yes


• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)


• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3


• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

Please contact your dealer for any returns, repairs or support issues related to this product.

The Victron Energy Phoenix Inverter 12/375 is a reliable power solution designed to convert DC battery power into stable AC electricity suitable for domestic appliances and electronic devices. Featuring a fully configurable output voltage range of 210 to 245V and selectable frequency of 50 Hz or 60 Hz, this inverter ensures compatibility with a broad spectrum of equipment. Its robust design includes a full bridge and toroidal transformer topology, making it resistant to overloads, short circuits, and overheating, which are critical for long-term operation in demanding environments. The inverter's high start-up power capability allows it to handle loads such as LED lamps, halogen bulbs, and power tools efficiently, providing dependable performance for various off-grid or backup power applications. The integrated GFCI duplex outlet enhances safety by protecting against ground faults, making it suitable for use in residential or commercial settings.

The VE.Direct communication port facilitates seamless integration with computers, smartphones, and tablets, enabling remote monitoring and control through compatible apps or interfaces. Users can connect via USB or Bluetooth Smart dongle, allowing for real-time data on input/output voltages, load percentages, and system alarms. The inverter also offers extensive customization options, including adjustable low battery voltage alarms, dynamic load-dependent shutdown levels, and ECO mode settings that optimize energy consumption by switching to standby during low loads. The ECO mode feature can be fine-tuned to activate at minimal loads as low as 15W, reducing idle power consumption significantly. An optional remote on/off switch can be connected for remote operation, providing convenient control from a distance. Additionally, the inverter supports automatic transfer switching through compatible devices like the Filax switch, ensuring uninterrupted power delivery during source changes with switchover times of less than 20 milliseconds. The durable steel enclosure with a protective IP21 rating ensures safety and longevity in various environments, with screw terminals facilitating secure battery connections. Operating within a temperature range of -40°C to +65°C, the inverter is suitable for diverse climatic conditions, and its efficiency reaches up to 90%, making it an energy-efficient choice for off-grid power setups. For detailed installation and operation instructions, please refer to the supplied manual available online. The Victron Phoenix 12/375 inverter complies with international safety and EMC standards, providing peace of mind for both residential and professional applications. Whether used for backup power, mobile setups, or off-grid systems, this inverter offers a dependable, configurable, and safe solution for converting battery power into usable AC electricity.

Features:

• Output Voltage: Adjustable between 210V and 245V

• Frequency Options: 50Hz or 60Hz, configurable

• GFCI Duplex Outlet: Integrated for safety protection

• VE.Direct Communication Port: Enables remote monitoring via USB or Bluetooth

• Fully Configurable Settings: Low voltage alarms, load-dependent cut-off, ECO mode, and more

• High Start-Up Power: Suitable for electric tools and lighting loads

• Automatic Transfer Switch Compatibility: Supports seamless source switching with minimal downtime

• Robust Construction: Steel chassis with IP21 protection rating

• Operational Temperature Range: -40°C to +65°C for versatile outdoor and indoor use

• Efficiency: Up to 90%, reducing energy loss during operation

• Overload and Overheat Protection: Ensures safe and reliable performance
