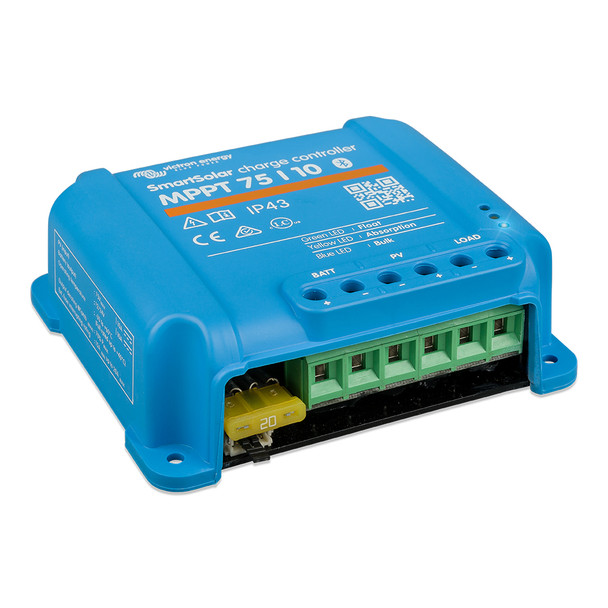

Victron Energy SmartSolar MPPT Solar Charge Controller 75V 10Amp

SmartSolar MPPT Charge Controller - 75V - 10AMP

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.


• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices


• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.


• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.


• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.


• Programmable battery charge algorithm See the software section on our website for details


• Day/night timing and light dimming option See the software section on our website for details


• Internal temperature sensor Compensates absorption and float charge voltage for temperature.


• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy SmartSolar MPPT Solar Charge Controller model SCC075010060R is designed to optimize your solar energy system with advanced features and reliable performance. This high-efficiency controller utilizes ultra-fast Maximum Power Point Tracking (MPPT) technology, which can improve energy harvest by up to 30% in variable light conditions, ensuring maximum power extraction from your solar panels. It is suitable for systems with a voltage rating up to 75V and a current capacity of 10Amp, making it ideal for a variety of off-grid and on-grid applications.
Built-in Bluetooth Smart allows for seamless wireless setup, monitoring, and firmware updates via a smartphone or compatible device, providing convenience and real-time system insights. The VE.Direct port offers a wired connection to other Victron GX devices, PC interfaces, or monitoring systems for more detailed data analysis and system management. The controller's load output prevents battery over-discharge by disconnecting loads when the battery voltage drops below a pre-set level, with a short circuit-proof design for safety and durability.
Battery longevity is enhanced through an intelligent Battery Life algorithm that adjusts load disconnect levels, ensuring the battery is fully recharged once a week, which is critical for maintaining lead-acid battery health. Programmable charge algorithms, day/night timing, and light dimming options further customize system performance to your needs. An internal temperature sensor automatically adjusts absorption and float voltage based on ambient temperature, optimizing battery charging across temperature variations.
For additional monitoring, the controller supports optional external sensing via Bluetooth-compatible Battery Sense or BMV-712 Smart Battery Monitor, providing accurate voltage and temperature data for improved battery management. Victron’s commitment to safety is reflected in the UL approval, and detailed warranty information is available for peace of mind. Please note the product’s chemical exposure warning as per California’s Proposition 65 regulations. For support, repairs, or returns, contact your dealer to ensure proper handling and service of your solar system components.

Features:

• Bluetooth Smart built-in for wireless setup, monitoring, and updates

• VE.Direct port for wired data connection with Victron GX devices and PCs

• Ultra-fast MPPT technology enhances energy harvest in changing light conditions

• Load output prevents battery over-discharge with short circuit-proof design

• Intelligent Battery Life algorithm optimizes battery health and recharge cycles

• Programmable charge algorithm allows customization of charging profiles

• Day/night timing and light dimming features for system control

• Internal temperature sensor automatically adjusts charge voltage based on ambient temperature

• Optional external Bluetooth battery voltage and temperature sensing for advanced monitoring
