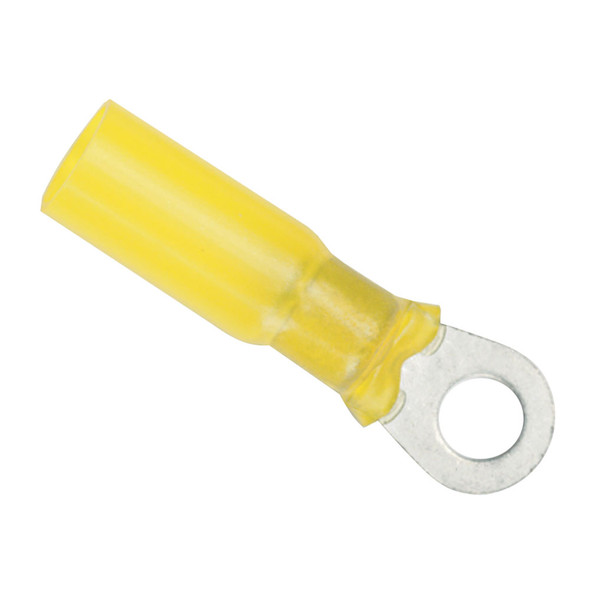

Ancor 16-14 Gauge 3/8 inch Heat Shrink Ring Terminal - 25 Pack

16-14 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack

Wire Range:16-14
Screw Size:3/8"
Quantity: 25

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief




• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size




• Shrinks at 257 F/125 C




• Operating temperature range 40 C to 110 C




• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing




• Shrinks to form a water tight seal and the ultimate vibration and strain relief




• Tinned for corrosion resistance




• Pure copper for maximum current flow




• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Gauge 3/8 inch heat shrink ring terminals are designed for reliable electrical connections in demanding environments. Constructed with cross-linked polyolefin tubing, these terminals are significantly stronger than PVC alternatives and resist burning, ensuring durability and safety. The heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, while also offering strain relief to prevent connection failure over time. Each terminal features a nylon insulator preferred by industry professionals for its marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making it ideal for marine and outdoor applications. UL listed and CSA recognized, these terminals meet strict safety standards for professional use. With a high shrink ratio that reduces to one-third of their original size when heated to 257°F (125°C), they form water-tight seals and offer superior vibration and strain relief. Constructed with tinned pure copper for maximum current flow and brazed seams for added strength, these terminals ensure optimal electrical performance and long-lasting connections. The 3/8-inch screw size complements various wiring setups, and their versatile wire range of 16-14 gauge makes them suitable for a broad spectrum of electrical projects. Whether used in marine, automotive, or industrial wiring, the Ancor heat shrink ring terminals deliver dependable and professional-grade results. These terminals are supplied in a convenient 25-pack, making them a practical choice for large-scale wiring projects and ongoing maintenance needs.

Features:

• Cross-linked polyolefin tubing provides superior strength and heat resistance compared to PVC tubing

• Heat-activated adhesive lining ensures a waterproof seal against salt water, oil, acids, and sunlight

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL listed and CSA recognized for safety and quality assurance

• Shrinks to one-third of original size at 257°F (125°C) for a secure fit and water-tight seal

• Constructed with tinned pure copper for maximum current flow and corrosion resistance

• Brazed seam enhances overall strength and durability

• Suitable for wire gauges 16-14 with a 3/8-inch screw size

• Ideal for marine, automotive, and industrial wiring applications

• Supplied in a 25-pack for convenience and large-scale projects
