Description

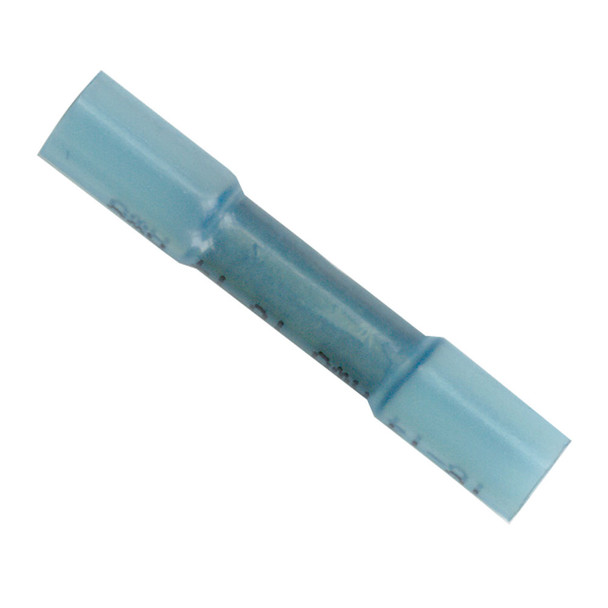

16-14 Heatshrink Butt Connectors - 25-Pack
Guage Size: 16-14
Quantity: 25
Product Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire range: 16-14
- mm: 1-2
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor Part Number 309125 16-14 Heatshrink Butt Connectors are designed for reliable electrical connections in marine, automotive, and industrial environments. Each pack includes 25 high-quality connectors built to ensure a secure and waterproof connection. Crafted from cross-linked polyolefin tubing, these connectors offer superior strength compared to traditional PVC, resisting burning and degradation under high temperatures. The heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and UV exposure, ensuring long-lasting performance in harsh conditions. Their nylon insulator, preferred by industry professionals, offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and mechanical damage, making them ideal for demanding applications. UL Listed and CSA Recognized, these connectors meet stringent safety standards for electrical work. The connectors boast the highest shrink ratio, shrinking to one-third of their original size when heated to 257°F (125°C), creating a tight, water-resistant seal that also offers strain relief. Constructed from pure copper with a brazed seam, they provide maximum current flow and mechanical strength, while tinned surfaces enhance corrosion resistance. Suitable for wire sizes ranging from 16 to 14 gauge, they are compatible with wire diameters of approximately 1 to 2 millimeters. These connectors are designed for use within an operating temperature range of 40°C to 110°C, making them versatile for various environments. The Ancor heat shrink connectors are an essential component for achieving professional-grade electrical connections that are both secure and durable, especially in marine and outdoor applications.
Features:
- Cross-linked polyolefin tubing for increased strength and heat resistance
- Heat-activated adhesive lining provides a waterproof seal and strain relief
- Nylon insulator offers marine-grade resistance to sunlight, water, and chemicals
- UL Listed and CSA Recognized for safety and quality assurance
- Shrinks to one-third of original size for a secure fit
- Operates effectively within temperature range of 40°C to 110°C
- Constructed from pure copper for maximum current flow
- Brazed seam enhances connector strength and durability
- Corrosion-resistant tinned finish prolongs lifespan
- Suitable for wire sizes 16-14 gauge, approximately 1-2 mm in diameter
