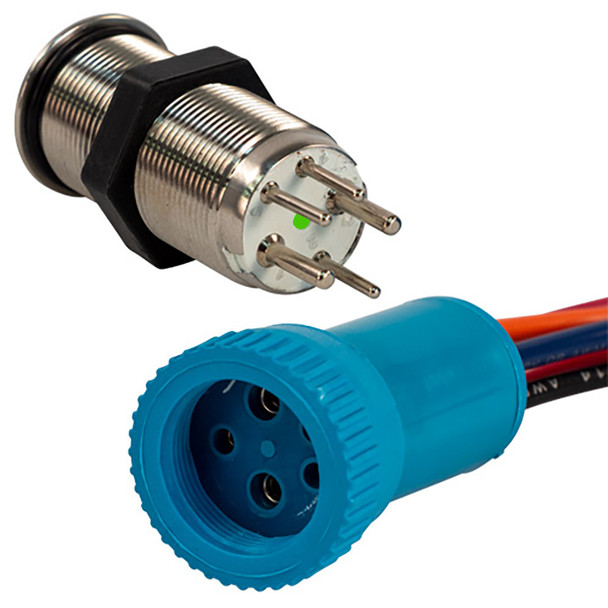

Bluewater 19mm Push Button Switch with Blue/Red LED and Waterproof IP69K Rating

19mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 4' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/(On)" momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4ft. lead

Specifications:

• Function: Off-(On) (momentary contact)


• Off/On: Blue/red


• Rear Mark Page: Green dot


• Switch Rating: 15A/12 24VDC


• Material: Stainless steel


• Mechanical Life: 50,000 cycles


• Electrical Life: 10,000 cycles

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle or equipment dashboard with the Bluewater 19mm push button switch, part number 9057-2113-4. Crafted from durable stainless steel, this switch offers a sleek, modern appearance while providing reliable performance in harsh environments. Its IP69K waterproof rating ensures protection against high-pressure water and dust, making it ideal for demanding applications such as off-road vehicles, boats, and industrial machinery. The switch features a 19mm diameter mounting hole and includes a gasket for a secure, weatherproof installation. Its backlit blue LED illuminates during operation for clear visibility at night, and the red LED indicates when the function is active, enhancing safety and usability. The switch is designed for quick installation with a 4-foot lead, allowing straightforward wiring to your control system or auxiliary devices. Its mechanical life of 50,000 cycles and electrical life of 10,000 cycles ensure long-lasting performance, even with frequent use. The switch's off/(on) momentary contact function provides precise control, making it suitable for toggling lights, pumps, or other accessories. Easy to connect, the switch has color-coded contacts for safety and convenience, with three contacts for the switch itself and two for the LED illumination. Whether upgrading an existing setup or installing a new control panel, this switch offers durability, visibility, and functional versatility in a compact, professional-grade package.

Features:

• 19mm diameter stainless steel push button with waterproof IP69K rating

• Off/(On) momentary contact function for precise control

• Blue LED backlight for visibility at night, red LED indicates active state

• Includes gasket for secure, waterproof installation

• 4-foot wiring lead for easy connection

• Switch rated at 15A/12-24VDC for versatile use

• High mechanical lifespan of 50,000 cycles and electrical lifespan of 10,000 cycles

• Simple installation requiring a 19mm hole and color-coded contacts
