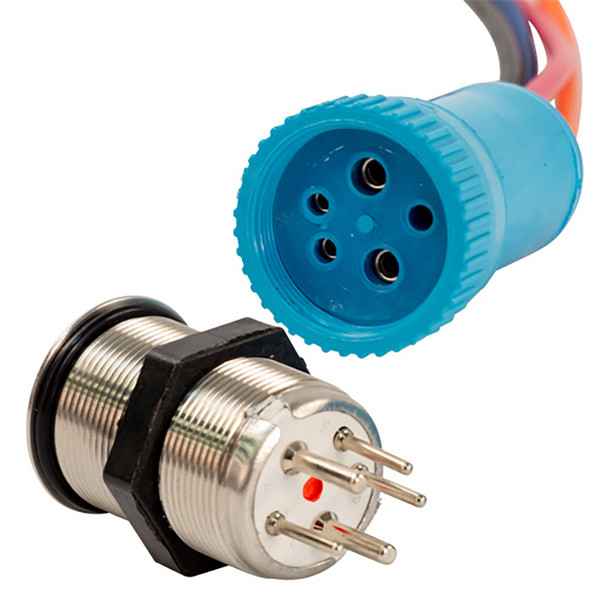

Bluewater 22mm Push Button Switch with Blue/Red LED and Waterproof IP69K Rating

22mm Push Button Switch - Off/On Contact - Blue/Red LED - 4 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a standard Off/On contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Off-On (standard contact)


• Off/On: Blue/red


• Rear Mark Page: Red dot


• Switch Rating: 20A/12 24VDC


• Material: Stainless steel


• Mechanical Life: 50,000 cycles


• Electrical Life: 10,000 cycles

Installation

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Enhance your vehicle or machinery dashboard with the Bluewater 22mm Push Button Switch, Part Number 9059-1113-4. Crafted with a stainless steel body, this switch offers durability and a modern aesthetic, making it suitable for various applications where reliability and style are essential. The switch features a standard Off/On contact configuration, allowing simple and effective control over electrical circuits. Its waterproof design, rated IP69K, ensures protection against high-pressure water and dust, making it ideal for demanding environments. The built-in backlit LEDs provide clear visibility in low-light conditions, with the blue light indicating the off state and red illuminating when the device is active, helping users quickly identify operational status. Connecting this switch is straightforward—simply drill a 22mm hole into surfaces up to 6mm thick, then connect the color-coded contacts for power and control. The switch is rated for 20A at 12 or 24V DC, making it suitable for a wide range of electrical loads. Its mechanical lifespan exceeds 50,000 cycles, and it can handle up to 10,000 electrical cycles, offering long-term reliability for your projects. Whether you're customizing a vehicle dashboard or installing control panels, this switch combines functionality with a sleek, waterproof design that performs under tough conditions.

Features:

• Stainless steel body for durability and modern appearance

• Waterproof IP69K rating for high-pressure water and dust resistance

• Backlit blue and red LEDs for enhanced visibility and status indication

• Standard Off/On contact configuration for reliable operation

• Easy installation with a 22mm mounting hole and three connection points

• Rated for 20A at 12 or 24V DC, suitable for various electrical loads

• Mechanical lifespan of over 50,000 cycles for durability

• Electrical lifespan of approximately 10,000 cycles for dependable use
