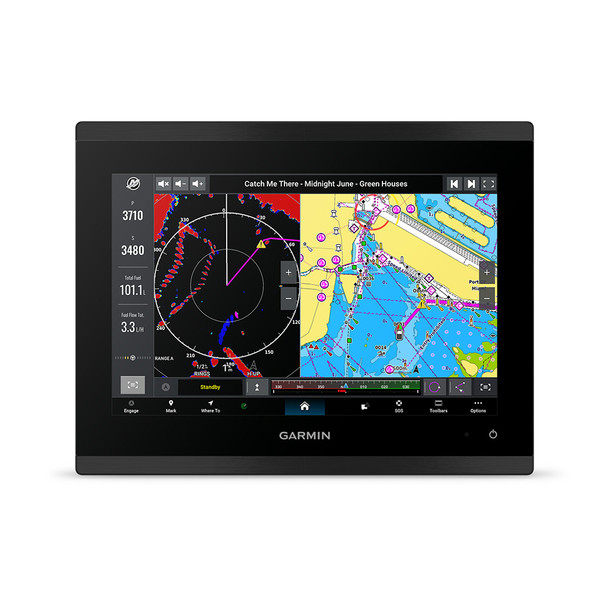

Garmin GPSMAP 9010 Premium Chartplotter with Worldwide Basemap and High-Resolution Touchscreen

GPSMAP 9010 Premium Chartplotter with Worldwide Basemap

PARADISE STARTS HERE

Its the integrated high-resolution touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials.

Features:

• Premium IPS sunlight-readable touchscreen display


• Up to 7 times faster processing power than previous generations


• Get clarity like never before on a high-resolution display


• Supports Garmin Navionics+ charts with Auto Guidance+ technology¹



• Gigabit speeds on the Garmin Bluenet network


• Network with multiple chartplotters, cameras, and more

Premium Chartplotter

The HD IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.

Faster. Much Faster.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes¹ with lightning speed with an optional Garmin Navionics+ subscription.

Garmin Bluenet Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars and enjoy gigabit-speed

EntertainmentOptions

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

Garmin Sailassist Sailing Features and Sailing Polars

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, and more. Plus, the polar table shows key data, so you know whether you need to adjust sail trim.

Connect Your Ecosystem

Take command through digital system integrations to monitor, automate, and control your vessel. The chartplotter uses the NMEA 2000 network to connect to your compatible accessories.

Connect

• Software Updates: Get wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet.


• Engine Monitoring: Keep tabs on engine performance with extensive engine integration.


• Custom Look: Manufacturers can customize the homepage layout and splash screen for a brand-tailored experience.

Navigate

• Mapping: Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates, and more¹ (subscription required).


• Premium Charts: Get support for Garmin Navionics Vision+ charts with premium relief shading and satellite imagery.


• Know Where You Are: Get your precise location with the built-in dual-frequency 10 Hz GPS.


•
  Autopilot:Control the autopilot with any compatible chartplotter on the network with autopilot integration.

Integrate

• Connect Cameras: Get extensive camera support and control to see footage directly on the chartplotter.


• Control with Your Watch: Connect to your chartplotter with your compatible Garmin smartwatch.


• Wireless Connectivity: Connect compatible devices with integrated Bluetooth and ANT technologies.


• Fish Mapping: Get comprehensive fishing data with the Fish Mapping feature from SiriusXM Radio (accessory purchase and subscription required).


• Verbal Commands: Use spoken commands to control the chartplotter through your compatible headset or quatix smartwatch.


• Weather-Resistant:


• The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

Whats In The Box

• GPSMAP 9010 premium chartplotter


• Power cable


• Backbone/drop cable (2 meters) and T-connector for the NMEA 2000 Network


• Bail mount with knobs


• Flush mount kit


• Protective cover


• Trim piece snap covers


• Documentation

Specifications:

General:

• Dimension: 10.24 x 7.87 x 3.54


• Weight: 5.55 lbs


• Water Rating: IPX7


• Touchscreen: Yes


• Display Type: WUXGA, IPS; Edge Lit backlight


• Display Size: 8.54 x 5.34 x 10.1 diagonal


• Display Resolution: 1920 x 1200 pixels


• Mounting Options: Bail, flat, or flush


• Input: Touchscreen


• Polarized Lens Viewability: Yes

Maps Memory:

• Accepts Data Cards: 2 microSD cards (on rear of product)


• Waypoints: 5,000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• GALILEO: Yes


• BEIDOU: Yes


• Has Built-in Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes


• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• GCV Black Box Sonar Support: Yes


• Activecaptain Compatible: Yes


• Supports Voice Commands: Yes


• GRID (Garmin Remote Input Device) Compatible: Yes


• GRID 20 Compatible: Yes


• Wireless Remote Compatible: Yes


• Sailing Features: Yes


• Spoken Audio Alerts: Yes


• Onehelm Support: Yes

Electrical Features:

• Power Input: 10 to 32 Vdc


• Typical Current Draw at 12Vdc: 2.43A


• Maximum Current Draw at 12Vdc: 2.8A


• Maximum Power Usage at 10Vdc: 29w

Connections:

• NMEA 2000 Ports: 1


• NMEA 0183 Input (RX) Ports: 1


• NMEA 0183 Output (TX) Ports: 1


• Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• J1939 Ports: 1


• Garmin Bluenet Networks Ports: 2


• USB Ports: yes (1x USB-C)


• Bluetooth Pairing: Yes


• ANT (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes


• Wi-Fi Frequency Bands: 2.4 GHz 5 GHz


• Audio Output: Yes

^{1Auto Guidance+ is for planning purposes only and does not replace safe navigation operations}

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin GPSMAP 9010 Premium Chartplotter offers an advanced navigation solution designed for serious captains and anglers. Featuring a high-resolution IPS sunlight-readable touchscreen display, this chartplotter provides edge-to-edge clarity and a sleek, modern appearance suitable for glass helm installations. Its 8.54-inch diagonal display with 1920 x 1200 pixel resolution ensures exceptional visibility in all lighting conditions, enabling precise navigation and detailed chart viewing. The device supports Garmin Navionics+ charts with Auto Guidance+ technology, which simplifies route planning by providing dynamic, optimized paths, though a subscription is required for full functionality. Processing speeds are up to seven times faster than previous models, allowing for rapid chart rendering and quick route calculations, which enhances overall performance and user experience.

It seamlessly integrates into your marine ecosystem via Garmin’s Bluenet network, supporting gigabit speeds to connect multiple chartplotters, cameras, radars, and other compatible devices for comprehensive vessel monitoring and control. The chartplotter’s versatility extends to entertainment options, enabling audio and video streaming across connected screens and speakers, making it easy to enjoy multimedia content onboard. Garmin Sailassist features offer advanced sailing tools, including laylines, race start guidance, wind rose, and tide data, helping sailors optimize performance and make informed decisions. The polar table provides key sailing data, assisting in sail trim adjustments for better efficiency.Built to withstand harsh marine conditions, the GPSMAP 9010 boasts an IPX7 water-resistance rating, ensuring durability and reliability in challenging environments. It includes extensive connectivity options such as Bluetooth, ANT, Wi-Fi, and NMEA 2000, allowing integration with various accessories, sensors, and smart devices. Users can monitor engine performance, receive wireless software updates via the ActiveCaptain app, and customize the interface with manufacturer-specific layouts. The device supports multiple mapping options, including Garmin Navionics+ with Auto Guidance+ and premium relief shading for detailed navigation, along with dual-frequency 10 Hz GPS for accurate positioning. The package includes the chartplotter, power and backbone cables, mounting hardware, protective cover, and comprehensive documentation, making installation straightforward and efficient.Designed for professional and recreational use, the Garmin GPSMAP 9010 Premium Chartplotter combines high-performance features with robust construction, providing a reliable, all-in-one navigation and entertainment system for modern vessels.

Features:

• Premium IPS sunlight-readable touchscreen display for clear visibility

• Processing power up to 7 times faster for rapid chart rendering and route calculation

• Supports Garmin Navionics+ charts with Auto Guidance+ technology for optimized routing

• Gigabit speeds on Garmin Bluenet network enable extensive device connectivity

• Supports multiple chartplotters, cameras, radars, and sensors within a network

• Entertainment options include audio and video streaming across connected devices

• Advanced sailing features with laylines, wind rose, tide data, and race guidance

• Built-in dual-frequency 10 Hz GPS for precise positioning

• Robust water resistance with IPX7 rating for harsh marine conditions

• Extensive connectivity including Bluetooth, ANT, Wi-Fi, and NMEA 2000

• Customizable interface with support for software updates and engine monitoring

• Supports Garmin Navionics Vision+ charts with premium relief shading and satellite imagery

• Multiple mounting options: bail, flat, or flush mount for versatile installation

• Includes comprehensive accessories: power and backbone cables, protective cover, and mounting hardware
