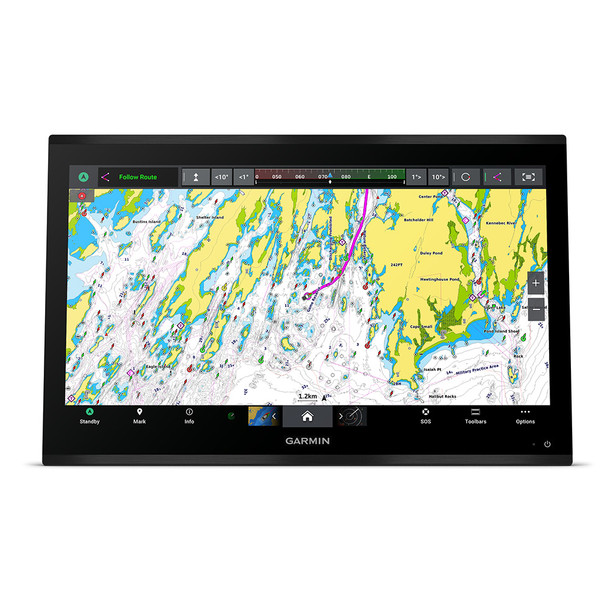

Garmin GPSMAP 9024 24-Inch Premium Chartplotter with 4K IPS Touchscreen and Worldwide Basemap

GPSMAP 9024 24" Premium Chartplotter with Worldwide Basemap

WELCOME TO 4K PARADISE

Its the industrys first integrated 4K resolution touchscreen chartplotter. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials plus enhanced connectivity and speed.

• Premium 4K IPS sunlight-readable touchscreen display


• Up to 7 times faster processing power than previous generations


• Gigabit speeds on the Garmin BLUENET network


• Video integration capabilities with HDCP Distribution


• See sonar targets like never before on the 4k display¹



• Network with multiple chartplotters, cameras, and sonars

Premium Chartplotter

The 4K resolution IPS sunlight-readable touchscreen display is available in the industrys largest integrated chartplotter size. Edge-to-edge design provides a seamless and luxurious modern look.

Faster. Much Faster.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes² with lightning speed with an optional Garmin Navionics+ subscription.

Garmin BLUENET Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars and enjoy 10 times faster networking speeds with minimal lag.

Entertainment Options

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

High-Definition Sonar

Fish in stunning high definition. Hook up to any of our sonar modules, and view sonar targets on the 4K display (transducers sold separately).

Connect Your Ecosystem

Take command through digital system integrations to monitor, automate, and control your vessel. The chartplotter uses the NMEA 2000 and NMEA 0183 networks to connect to your compatible accessories.

Connect

• Software Updates - Get wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet.


• Engine Monitoring - Keep tabs on engine performance with extensive engine integration.


• Custom Look - Manufacturers can customize the homepage layout and splash screen for a brand-tailored experience.

Navigate

• Mapping - Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates, and more² (subscription required)


• Premium Charts - Get support for Garmin Navionics Vision+ charts with premium relief shading and satellite imagery.


• Know Where You Are - Get your precise location with the included GPS 24xd position receiver and antenna.


• Autopilot - Control the autopilot with any compatible chartplotter on the network with autopilot integration.

Integrate

• Connect Cameras - Get extensive camera support and control to see footage directly on the chartplotter.


• Surround View System - Get a birds-eye view with support for our Surround View Camera System (accessory purchase required).


• Control With Your Watch - Connect to your chartplotter with your compatible Garmin smartwatch.


• Wireless Connectivity - Connect compatible devices with integrated BLUETOOTH and ANT technologies.


• Fish Mapping - Get comprehensive fishing data with the Fish Mapping feature from SiriusXM Radio (accessory purchase and subscription required).


• Verbal Commands - Use spoken commands to control the chartplotter through your compatible headset.


• Weather-Resistant - The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

In The Box:

• GPSMAP 9024 chartplotter


• Trim snap cover


• Protective cover


• Flush mount hardware


• Power cable


• GPS 24xd NMEA 2000(with pole mount, flush mount, and under deck mount adapters)


• NMEA 2000 backbone/drop cable (2 meters)


• NMEA 2000 power cable


• NMEA 2000 T-connector and terminator kit


• Documentation

General:

• Dimension: 22.7" x 14.8" x 2.7" (57.6 cm x 37.6 cm x 6.9 cm)


• Weight: 20.60 lbs (9.34 kg)


• Waterproof: IPX7


• Touchscreen: Yes


• Display Type: 4K IPS


• Display Size: 20.7" x 11.7" x 23.8" diagonal, 52.7 cm x 29.6 cm x 60.5 cm diagonal


• Display Resolution: 3840 x 2160 pixels


• Mounting Options: Flush or flat


• Input: Touchscreen

Maps Memory:

• Accepts Data Cards: 2 SD Cards


• Compatible with Garmin SD Card Reader: Yes


• Waypoints: 5000

Sensors:

• Receiver: 10 Hz (included receiver)


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes

Optional Map Support:

• LakeV G3: Yes


• LakeV G3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics Vision+: Yes


• Topo 100K: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes


• Raster Chart Support: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes


• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• GSD Black Box Sonar Support: Yes


• GCV Black Box Sonar Support: Yes


• Activecaptain Compatible: Yes


• Grid (Garmin Remote Input Device) Compatible: Yes


• Wireless Remote Compatible: Yes


• Sailing Features: Yes


• Spoken Audio Alerts: Yes


• Onehelm Support: Yes

Electrical Features:

• Power Input: 10 to 35 Vdc


• Typical Current Draw at 12 Vdc: 6.5A


• Maximum Current Draw at 12 Vdc: 6.8A


• Maximum Power Usage at 10 Vdc: 82w

Sonar Features Specifications:

• Displays Sonar: Yes


• Traditional Sonar (Dual Frequency/Beam): Yes (with GCV black box, sold separately)


• Clearv: Yes (with compatible black box sonar)


• Sidev: Yes (with compatible black box sonar)


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• Connections NMEA0183 Input Ports: 4


• NMEA 0183 Input (TX) Ports: 2


• Video Input Ports: 1 (BNC composite); 2 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• J1939 Ports: 1


• Garmin BLUENET Network Ports: 4


• USB Ports: Yes (2x USB-C)


• Bluetooth Pairing: Yes


• Ant+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes


• Audio Output: Yes

¹Sonar black box and transducers sold separately

²Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Experience the next level of marine navigation with the Garmin GPSMAP 9024, a 24-inch premium chartplotter featuring an ultra-clear 4K IPS sunlight-readable touchscreen display. Its edge-to-edge design offers a seamless and modern look, providing exceptional clarity for navigation, sonar, and entertainment. This large, high-resolution display allows boaters to see detailed maps, sonar targets, and video feeds simultaneously, enhancing situational awareness and operational efficiency in demanding marine environments. The integrated worldwide basemap ensures you are well-equipped for global adventures, making it ideal for both leisure and professional use. The robust construction with an IPX7 water-resistance rating ensures durability against harsh weather conditions, while the compact dimensions facilitate flexible mounting options on your vessel's helm.

Features:

• Premium 4K IPS sunlight-readable touchscreen display: Provides vivid, edge-to-edge clarity for detailed navigation and sonar viewing.

• Processing Speed: Up to 7 times faster than previous Garmin chartplotters, enabling quick chart rendering and route calculations.

• Garmin BLUENET network: Facilitates high-speed connectivity with multiple devices, including chartplotters, cameras, and sonar modules.

• Video Integration: Supports HDCP distribution for seamless audio and video sharing across connected screens and speakers.

• High-Definition Sonar: Displays sonar targets in stunning clarity when connected to compatible sonar modules and transducers (sold separately).

• Advanced Connectivity: Includes Bluetooth, ANT+, Wi-Fi, and NMEA 2000/0183 support for extensive device integration and system automation.

• Navigation Capabilities: Supports Garmin Navionics+ charts with Auto Guidance+ technology, premium charts, and supports multiple map formats.

• Engine Monitoring & Control: Integrates with vessel systems for monitoring engine performance and controlling autopilot and other onboard functions.

• Flexible Mounting Options: Supports flush or flat mounting, suitable for various helm configurations.

• Weather and Fish Mapping: Provides detailed weather overlays and SiriusXM Fish Mapping data (subscription and accessories required).

• Durability & Design: Built with marine-grade materials for harsh conditions, with an IPX7 waterproof rating ensuring long-lasting performance.

• In the Box: Includes the GPSMAP 9024 chartplotter, protective covers, mounting hardware, power and network cables, and comprehensive documentation.
